UNIVIEW · NVR501-08B

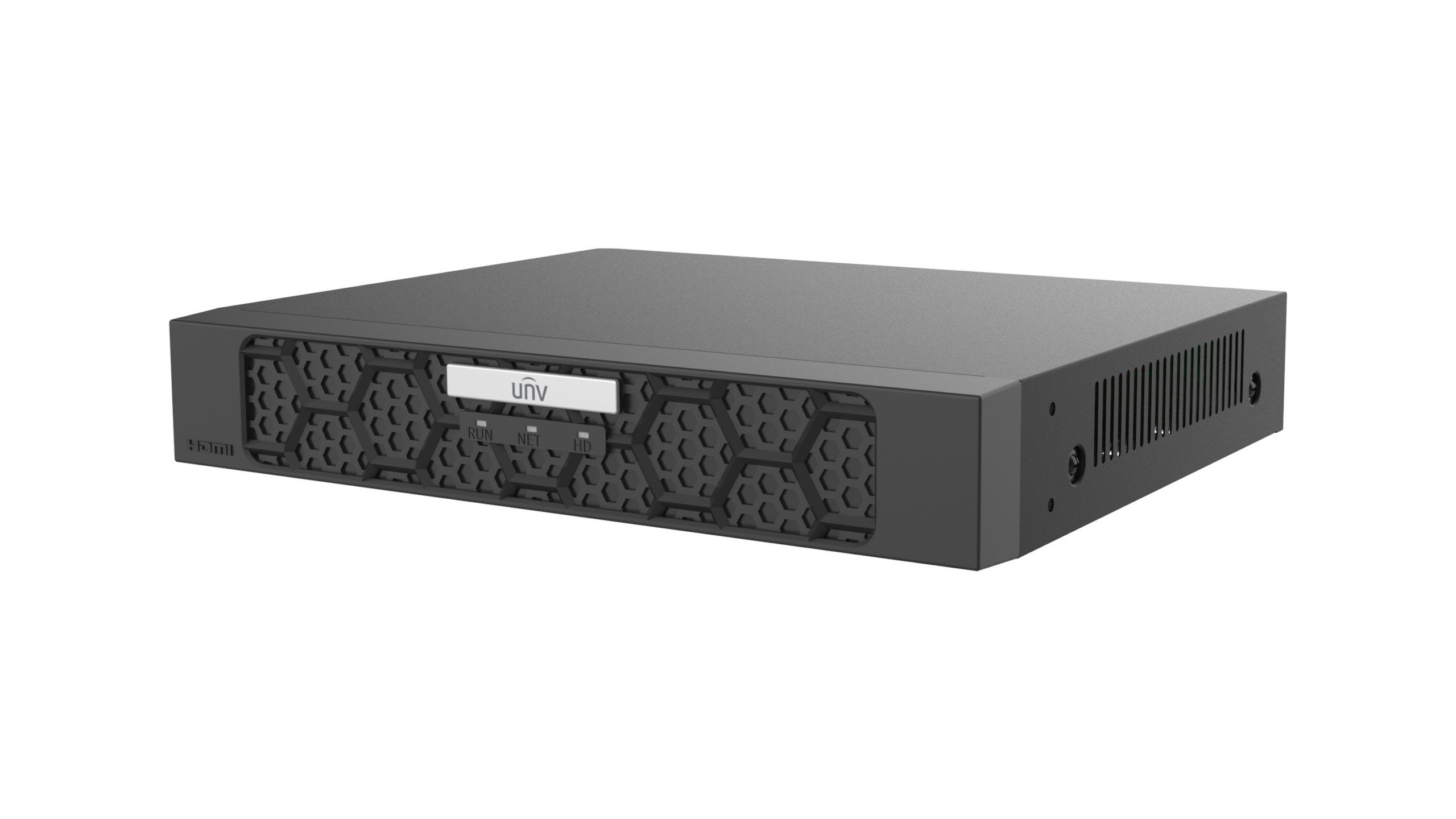

UNV NVR501-08B 8-Channel NVR
Bring 8 IP camera channels together for recording, live viewing and playback. The NVR501-08B combines 1 SATA interface with HDMI and VGA display outputs.
8 IP channels1 SATAHDMI + VGA
Product overview
Build a recording system around the camera count, incoming bandwidth and storage requirements of the site. Local display outputs and network access provide practical ways to manage the connected camera views and review recordings.
IP camera capacity
8 recording channels, with incoming bandwidth of 80 Mbps.
Storage planning
1 SATA interface gives you room to configure recording storage. Retention depends on camera bitrates, schedules and the installed drives.
Local video display
HDMI and VGA outputs support a local monitoring station. Check the output and camera decoding limits for the intended viewing layout.
Network integration
1 RJ45 10 M/100 M self-adaptive Ethernet Interface. Size the camera network around the recorder’s bandwidth and storage plan.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
NVR501-08B |
| IP camera inputs |
8-ch |
| Incoming bandwidth |
80 Mbps |
| Outgoing bandwidth |
64 Mbps |
| Recording resolution |
Up to 16 MP |
| HDMI maximum output |
4K (3840 × 2160)/30 Hz |
| VGA maximum output |
1920 × 1080/60 Hz |
| Video compression |
Ultra 265, H.265, H.264 |
| SATA interfaces |
1 SATA Interface |
| Drive capacity support |
Up to 24 TB for each HDD |
| Drive capacity conditions |
Capacity depends on drive compatibility and ambient temperature; manufacturer specifies ≤40°C for the listed maximum capacity. |
| Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Alarm inputs |
N/A |
| Alarm outputs |
N/A |
| Power input |
DC 12 V/2 A |
| Dimensions |
260mm × 222mm × 47mm (10.2″×8.7″×1.8″) |
System planning: confirm the installed drive configuration and camera compatibility. Supported capacity is not a statement of included storage. Allow for smart-mode bandwidth limits and each camera’s resolution and bitrate.
Downloads & Support
NVR501-08B
Mobile App
UniEase Mobile App
View live video, review available recordings and receive supported alerts. Formerly called UNV-Link.
Desktop / CMS
EZStation Desktop Software
Uniview video management software for supported cameras and recorders. Select Windows or macOS on the official download page.
Device Updates
Firmware
Open the manufacturer page, then choose Download → Firmware for your model.
Match the exact model, hardware revision and region before updating.
Documents
Product Documents
Manufacturer documents for this model family. Select your full model on the resource page.
