| Brand | Premium-NDAA |
|---|

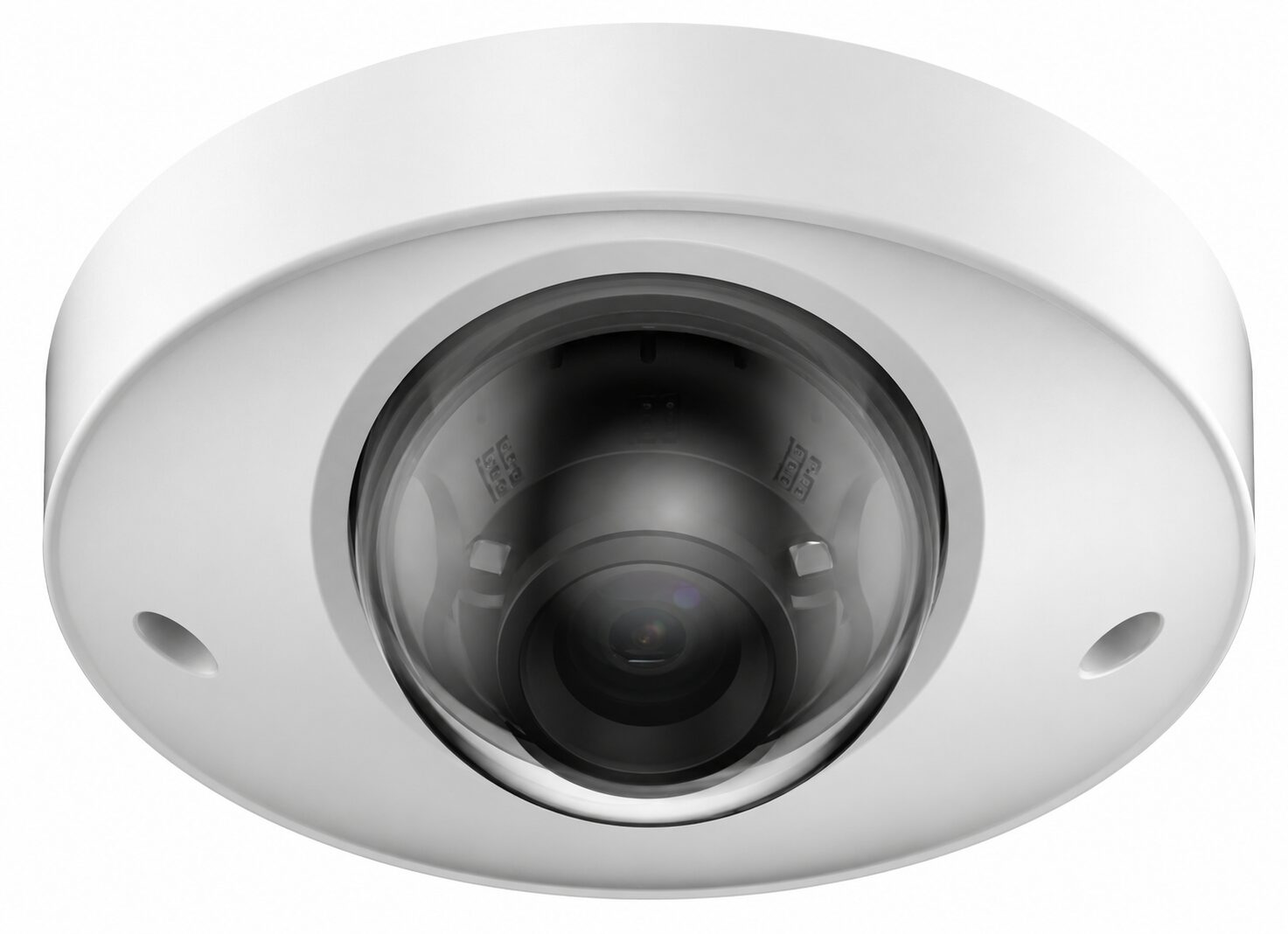

| Model | HNC324N-WDU |
|---|
| Image Sensor | 1/2.9-in. 4MP Progressive CMOS |
|---|
| Maximum Resolution | 2688 × 1520 |
|---|
| Minimum Illumination | Color: 0.007 Lux at F1.6 Black/White: 0.0007 Lux at F1.6 0 Lux With IR Light On |
|---|
| Number of Illuminators | Two (2) White-Light LED, Two (2) IR LED, Supports Smart Lux |
|---|
| Illuminator Control | Automatic, Manual |
|---|
| Maximum Illumination Distance | IR: Up to 30.5 m (100.0 ft) White Light: Up to 30.5 m (100.0 ft) |
|---|
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
|---|
| Installation Angle | Pan/Rotation: 0° to 355° Tilt: 0° to 80° |
|---|
| Iris Type | Fixed |
|---|
| Lens Type | Fixed |
|---|
| Focal Length | 2.8 mm |
|---|
| Maximum Aperture | F1.6 |
|---|
| Field of View | Horizontal: 95° Vertical: 52° Diagonal: 114° |
|---|
| Close Focus Range | 1.1 m (3.6 ft) |
|---|
| DORI Distance | Detect: 63.4 m (208.0 ft) Observe: : 25.2 m (82.7 ft) Recognize: 12.5 m (41 ft) Identify: 6.3 m (20.7 ft) |
|---|
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
|---|
| Standard Codec | Supported |
|---|
| Stream Capability | Two (2) |
|---|
| Resolution | 4MP (2688 x 1520), 4MP (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
|---|
| Maximum Frame Rate | Main Stream: 2688 x 1520 at 30 fps Sub Stream 1: D1 at 30 fps |
|---|
| Video Bit Rate | H.264: 32 kbps to 6,144 kbps H.265: 12 kbps to 6,144 kbps |
|---|
| Bit Rate Control | CBR/VBR |
|---|
| Light Balancing | Wide Dynamic Range (120 dB) |
|---|
| Noise Reduction | 3D NR |
|---|
| Day/Night | Automatic (ICR), Color, Black and White |
|---|
| Image Angle | 0°/90°/180°/270° |
|---|
| Mirror Rotation | Supported |
|---|
| Region of Interest | Four (4) Zones |
|---|
| Privacy Masking | Four (4) Zones |
|---|
| Video Content Analytics | Line Crossing, Intrusion |
|---|
| Smart Motion | Supported with Alarms for Vehicles and Humans |
|---|
| Compression | G.711a, G.711Mu, PCM |
|---|
| Interface | Input: Built-In Microphone and one (1) channel Output: one (1) channel |
|---|
| Event | Line Crossing, Intrusion, Motion Detection, iMD, Audio Detection, Video Tampering, Disk Full, Disk Error, Voltage Detection, Security Exception |
|---|
| Interface | RJ-45 (10/100 Base-T) |
|---|
| Protocol | Pv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
|---|
| Interoperability | ONVIF (Profile S/G/T), CGI |
|---|
| Browser | Chrome, Firefox, Edge |
|---|
| Storage | FTP, SFTP, Micro SD Card (Max. 256 GB) |
|---|
| Power Supply | 12 VDC, PoE (802.3af) |
|---|
| Power Consumption | 12 VDC • Maximum: 7.1 W • Normal: 2.3 W PoE • Maximum: 8.5 W • Normal: 2.8 W |
|---|
| Net Weight | 0.4 kg (0.8 lb) |
|---|
| Gross Weight | 0.5 kg (1.1 lb) |
|---|
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing) |
|---|
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
|---|
| Protection Ratings | IP67, IK10 |
|---|
| Product Dimensions (L x W x H) | Φ108.9 mm x 55.0 mm (Φ4.3 in. x 2.2 in.) |
|---|
| Packaging Dimensions (L x W x H) | 137.0 mm x 137.0 mm x 87.0 mm (5.4 in. x 5.4 in. x 3.4 in.) |
|---|
| Material | Metal |
|---|
| Certifications | FCC, IC |
|---|
| Compliance | NDAA |
|---|
| Electrical Box | HTH-285NJ-J05 |
|---|
| Wall Mount | HTH-272NJ-110B |
|---|
| Pendant | HTH-271NJ-110 |
|---|
| Pendant | HTH-271NJ-110-24 |
|---|
| Pendant | HTH-271NJ-110-36 |
|---|
