UNIVIEW · XVR302-16U3

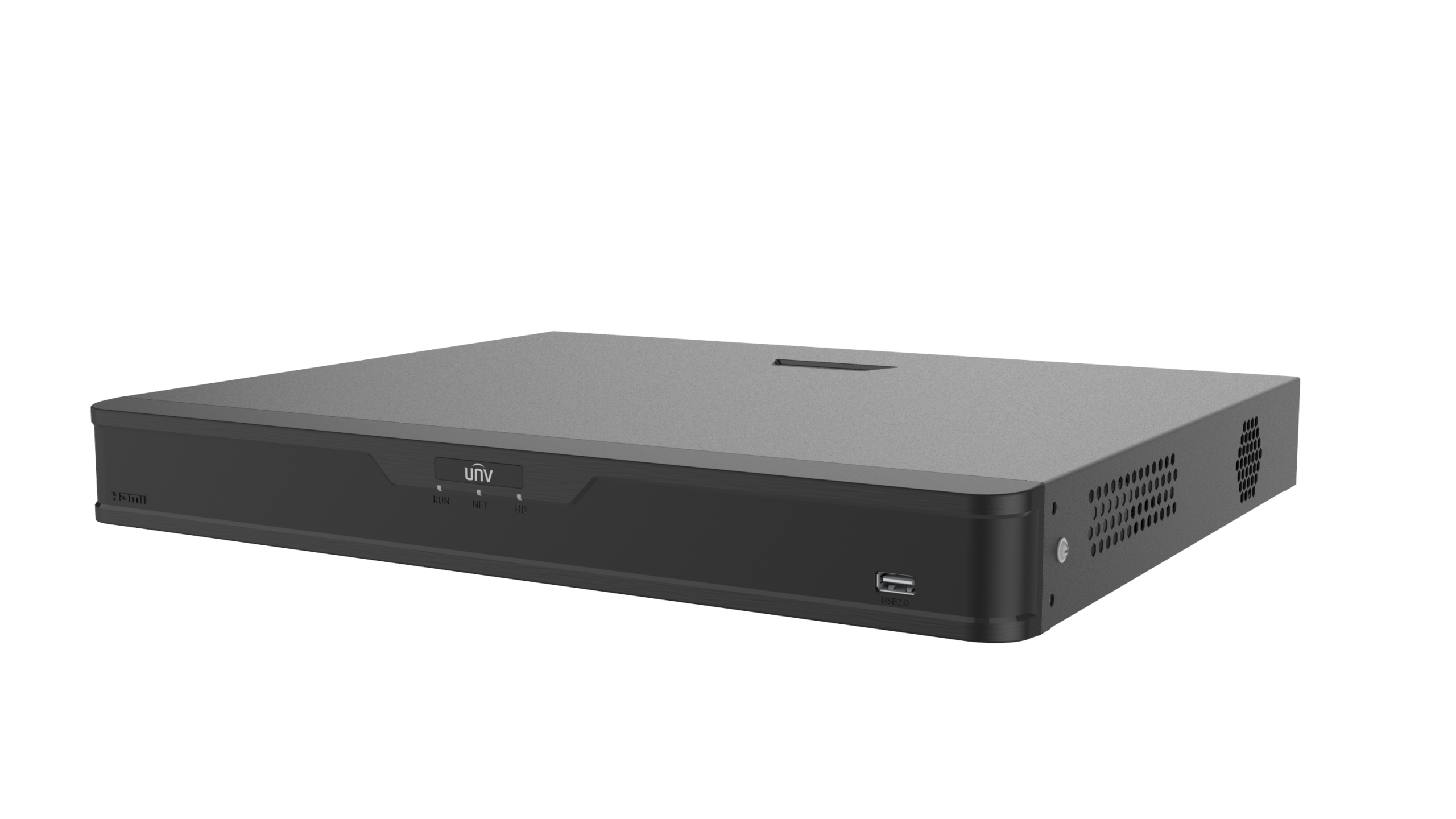

UNV XVR302-16U3 16-Channel Hybrid XVR
Connect 16 analog camera channels and compatible IP cameras to one recorder. The XVR302-16U3 supports TVI, AHD, CVI and CVBS inputs, with 2 SATA interfaces for recording storage.
Product overview
Retain compatible coaxial cameras while adding IP video where needed. IP-only channel capacity depends on converting analog channels; the maximum IP figure below is not an additional simultaneous channel allowance. Recording resolution and frame rate depend on the connected signal format and recorder settings.
Coax and IP inputs
16-ch, BNC analog input; 16-ch IP input in the standard arrangement.
Storage planning
2 SATA interfaces give you room to configure recording storage. Retention depends on camera bitrates, schedules and the installed drives.
Local video display
HDMI and VGA outputs support a local monitoring station. Check the output and camera decoding limits for the intended viewing layout.
Flexible migration
Supports up to 32-ch in the IP configuration after channel conversion.
Technical specifications
System planning: confirm the installed drive configuration and camera compatibility. Supported capacity is not a statement of included storage. Allow for smart-mode bandwidth limits and each camera’s resolution and bitrate.
