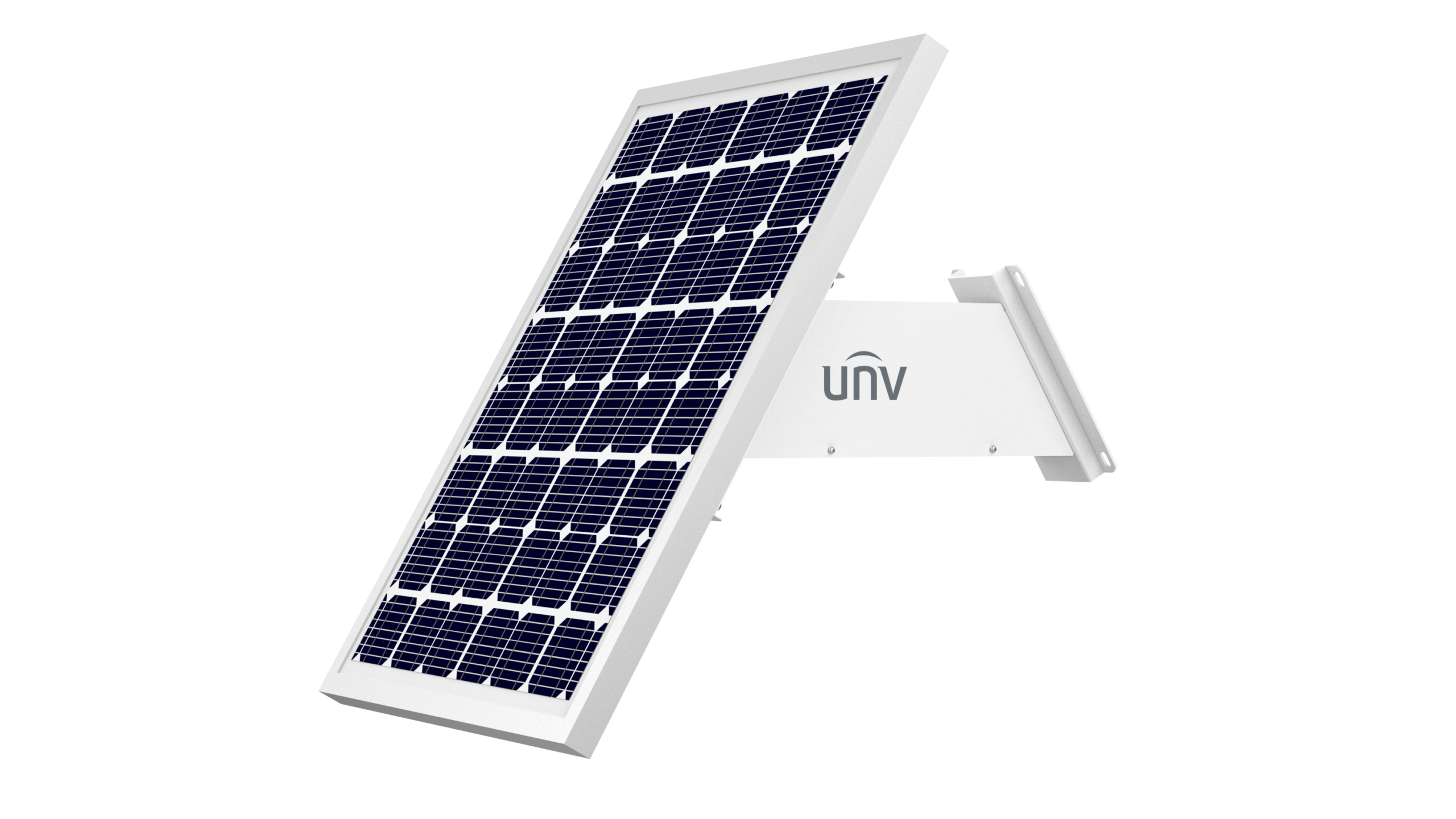

UNV SLR-B320P60 60W Solar Power System with 320Wh Battery

SLR-B320P60

UNV 60W Solar Power System with 320Wh Battery

Pole Diameter
67mm to 110 mm

$1,419.00

UNV SLR-B320P60 60W Solar Power System with 320Wh Battery

  • 60 W panel
  • 320 Wh battery
  • 1.5 A maximum output
Check CompatibilitySend your equipment model and setup details, and we’ll help check compatibility.

Accessories & Compatibility

Product Information
SKU: SLR-B320P60 Categories: , , Tags: , , , , Brand:

Description

UNIVIEW · SLR-B320P60

UNV SLR-B320P60 60W Solar Power System with 320Wh Battery

Supply a compatible remote camera installation with solar charging and battery energy storage. The SLR-B320P60 combines a 60 W panel, a 320 Wh lithium battery and an operation and maintenance module.

60 W panel320 Wh battery1.5 A maximum output

Product overview

Plan the installation around the camera’s daily energy use, local sunlight and the battery output limits. The integrated battery protections and monitoring module support a practical off-grid power arrangement when the connected load is correctly sized.

Solar charging

The panel provides 60 W peak output; actual energy collection varies with weather, orientation and sunlight.

Battery storage

320 Wh rated energy stores power for periods without sufficient sunlight.

Load matching

Battery output is 9–12.6 V with a maximum output current of 1.5 A. Match the connected load and cabling to these limits.

Installation planning

The manufacturer lists a 67–110 mm suitable pole diameter. Plan panel position and cable routing before mounting.

Technical specifications

Specification Details
Brand Uniview (UNV)
Model SLR-B320P60
Solar panel peak power 60 W
Battery rated energy 320 Wh
Battery capacity 100 Ah
Battery output voltage 9 V to 12.6 V
Maximum battery output current 1.5 A
Battery dimensions 419.2 × 118 × 336.5 mm
Battery protection High/low temperature protection, overcharge protection, undervoltage protection
Communication Support
Pole diameter 67mm to 110 mm
Operating temperature -20 ℃ to 55 ℃ (discharge)-20 ℃ to 45 ℃ (charge)
Assembly weight 9.18KG (Lithium Battery : 4.61KG, Solar Panel : 4.42KG, Operation and Maintenance Module : 150g)
Solar panel dimensions 765 × 395 × 25 mm
Operation / maintenance module 90 × 90 × 38.3 mm; IPX5
Module power consumption 0.84 W typical; 2 W maximum

Power planning: calculate camera and accessory energy consumption against seasonal sunlight. Runtime depends on load, battery state, temperature and charging conditions.

Additional information

Weight 20 lbs
Dimensions 32 × 16 × 2 in
