UNIVIEW · IPC2318SR-ADF28KM-WP

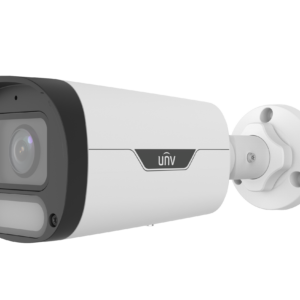

UNV IPC2318SR-ADF28KM-WP 8MP Owlview IP Bullet Camera
Capture color detail in low-light scenes with 8 MP imaging, Wise-ISP processing and an F1.0 lens. The IPC2318SR-ADF28KM-WP combines a 2.8 mm wide view, warm-light illumination and a built-in microphone.
8 MP2.8 mmIP67Built-in mic
Product overview
The OwlView design brings together a 1/1.8-inch sensor and a large-aperture lens for low-light monitoring. Warm illumination supports color images when additional light is needed, while wide dynamic range helps balance bright and shaded areas.
Image and lens
8 MP imaging with a 2.8 mm lens and 111.0° horizontal field of view.
Low-light visibility
Warm-light illumination reaches up to 30 m (98.4 ft), supporting color capture when additional light is needed.
Event detection
Cross-line and intrusion rules support human and vehicle detection.
Audio and recording
The built-in microphone adds sound to the recorded scene. Local storage: MicroSD, up to 512 GB.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
IPC2318SR-ADF28KM-WP |
| Resolution |
8 MP |
| Image sensor |
1/1.8″ CMOS |
| Maximum-resolution video |
8 MP (3840 × 2160), max. 20 fps |
| Lens |
2.8 mm |
| Aperture |
F1.0 |
| Horizontal field of view |
111.0° |
| Wide dynamic range |
120 dB |
| Minimum illumination |
Color: 0.0003 Lux (F1.0, AGC ON) |
| Warm-light range |
30 m (98.4 ft) |
| Video compression |
Ultra 265, H.265, H.264, MJPEG |
| Video streams |
Dual streams |
| Event functions |
Cross-line and intrusion rules support human and vehicle detection. |
| Built-in microphone |
Yes |
| Built-in speaker |
No |
| Audio input / output |
N/A |
| Alarm input / output |
N/A |
| MicroSD storage |
MicroSD, up to 512 GB |
| Network storage |
ANR, NAS (NFS) |
| Ethernet |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Power input |
DC 12 V±25%, PoE (IEEE 802.3af) |
| Maximum power consumption |
Max. 3.9 W |
| Protection |
IP67 (IEC 60529) |
| Operating environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Material |
Metal |
| Dimensions |
206 mm × 73 mm × 73 mm (8.1″ × 2.9″ × 2.9″) (L × W × H) |
| Weight |
0.48 kg (1.06 lb) |
| Compatible accessory examples |
TR-JB05-B-IN, TR-UP06-C-IN-V2 |
Installation planning: match the viewing angle and illumination range to the required detail at the subject distance. Confirm recorder compatibility and the power budget before installation.
Choose accessories for this model. Items are sold separately; add each item you need to your cart.
Junction box
TR-JB05-B-IN
Cable-management junction box matched to this camera.
$43.00 Original price was: $43.00.$31.00Current price is: $31.00.
Add To Cart
Pole adapter for junction-box combinations
TR-UP06-C-IN-V2
A compatible junction box or wall-mount assembly is required; this adapter alone does not mount the camera.
$36.00 Original price was: $36.00.$25.00Current price is: $25.00.
Add To Cart
Downloads & Support
IPC2318SR-ADF28KM-WP
Mobile App
UniEase Mobile App
View live video, review available recordings and receive supported alerts. Formerly called UNV-Link.
Desktop / CMS
EZStation Desktop Software
Uniview video management software for supported cameras and recorders. Select Windows or macOS on the official download page.
Device Updates
Firmware
Open the manufacturer page, then choose Download → Firmware for your model.
Match the exact model, hardware revision and region before updating.
Documents
Product Documents
Manufacturer documents for this model.
