Description
UNIVIEW · IPC2324SR5-ADZK-H

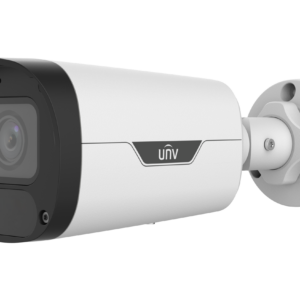

UNV IPC2324SR5-ADZK-H 4MP Varifocal IP Bullet Camera
Monitor the scene with 4 MP video and a 2.8 to 12 mm varifocal lens. The IPC2324SR5-ADZK-H combines infrared night illumination, a built-in microphone and local microSD recording support.
4 MP2.8 to 12 mmIP67Built-in mic
Product overview
Adjust the viewing angle to suit the installation and the detail needed at the subject distance. Wide dynamic range helps balance bright and shaded areas, while the listed illumination and storage options support day-to-night monitoring.
Image and lens
4 MP imaging with a 2.8 to 12 mm lens and 86.3° to 35.2° horizontal field of view.
Low-light visibility
Infrared illumination reaches up to 50 m (164.0 ft).
Event detection
Human-based cross-line and intrusion detection helps focus events on people entering the monitored area.
Audio and recording
The built-in microphone adds sound to the recorded scene. Local storage: MicroSD, up to 512 GB.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
IPC2324SR5-ADZK-H |
| Resolution |
4 MP |
| Image sensor |
1/3.0″ CMOS |
| Maximum-resolution video |
4 MP (2688 × 1520), max. 25 fps |
| Lens |
2.8 to 12 mm |
| Aperture |
F1.6 |
| Horizontal field of view |
86.3° to 35.2° |
| Wide dynamic range |
120 dB |
| Minimum illumination |
Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on |
| IR illumination range |
50 m (164.0 ft) |
| Video compression |
Ultra 265, H.265, H.264, MJPEG |
| Video streams |
Dual streams |
| Event functions |
Human-based cross-line and intrusion detection helps focus events on people entering the monitored area. |
| Built-in microphone |
Yes |
| Built-in speaker |
No |
| Audio input / output |
N/A |
| Alarm input / output |
N/A |
| MicroSD storage |
MicroSD, up to 512 GB |
| Network storage |
ANR, NAS (NFS) |
| Ethernet |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Power input |
DC 12 V±25%, PoE (IEEE 802.3af) |
| Protection |
IP67 (IEC 60529) |
| Operating environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Material |
Graphene + Metal |
| Dimensions |
206 mm × 73 mm × 73 mm (8.1″ × 2.9″ × 2.9″) (L × W × H) |
| Weight |
0.51 kg (1.12 lb) |
| Compatible accessory examples |
TR-JB05-B-IN |
Installation planning: match the viewing angle and illumination range to the required detail at the subject distance. Confirm recorder compatibility and the power budget before installation.
Choose accessories for this model. Items are sold separately; add each item you need to your cart.
Junction box
TR-JB05-B-IN
Cable-management junction box matched to this camera.
$43.00 Original price was: $43.00.$31.00Current price is: $31.00.
Add To Cart
Downloads & Support
IPC2324SR5-ADZK-H
Mobile App
UniEase Mobile App
View live video, review available recordings and receive supported alerts. Formerly called UNV-Link.
Desktop / CMS
EZStation Desktop Software
Uniview video management software for supported cameras and recorders. Select Windows or macOS on the official download page.
Device Updates
Firmware
Open the manufacturer page, then choose Download → Firmware for your model.
Match the exact model, hardware revision and region before updating.
Documents
Product Documents
Manufacturer documents for this model.
