Description
UNIVIEW · IPC2328SB-DZK-I0

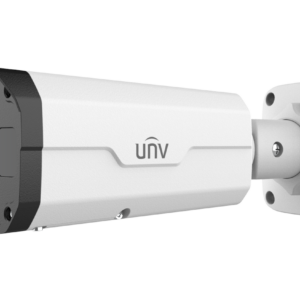

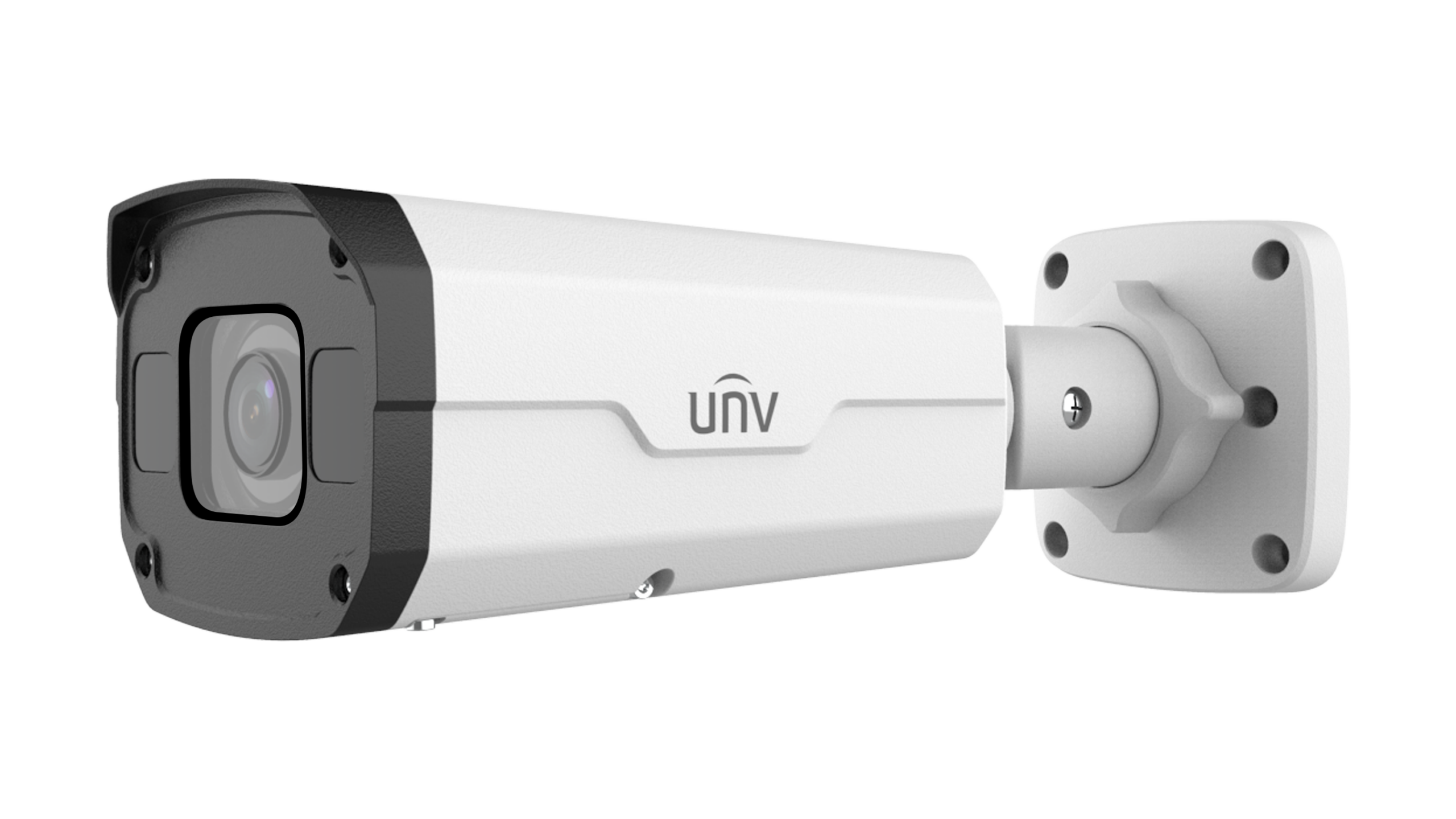

UNV IPC2328SB-DZK-I0 8MP LightHunter Varifocal IP Bullet Camera
Monitor the scene with 8 MP video and a 2.8 to 12 mm varifocal lens. The IPC2328SB-DZK-I0 combines infrared night illumination and local microSD recording support.
8 MP2.8 to 12 mmIP67
Product overview
Adjust the viewing angle to suit the installation and the detail needed at the subject distance. Wide dynamic range helps balance bright and shaded areas, while the listed illumination and storage options support day-to-night monitoring.
Image and lens
8 MP imaging with a 2.8 to 12 mm lens and 107.4° to 29.2° horizontal field of view.
Low-light visibility
Infrared illumination reaches up to 50 m (164.0 ft).
Event detection
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification.
Audio and recording
External audio input and output support compatible microphone and speaker equipment. Local storage: MicroSD, up to 512 GB.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
IPC2328SB-DZK-I0 |
| Resolution |
8 MP |
| Image sensor |
1/2.8″ CMOS |
| Maximum-resolution video |
8 MP (3840 × 2160), max. 20 fps |
| Lens |
2.8 to 12 mm |
| Aperture |
F1.6 |
| Horizontal field of view |
107.4° to 29.2° |
| Wide dynamic range |
120 dB |
| Minimum illumination |
Color: 0.0025 Lux (F1.6, AGC ON), 0 Lux with IR |
| IR illumination range |
50 m (164.0 ft) |
| Video compression |
Ultra 265, H.265, H.264, MJPEG |
| Video streams |
Triple streams |
| Event functions |
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification. |
| Built-in microphone |
No |
| Built-in speaker |
No |
| Two-way audio |
Via external audio equipment |
| Audio input / output |
1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm input / output |
1/1 |
| MicroSD storage |
MicroSD, up to 512 GB |
| Network storage |
ANR, NAS (NFS) |
| Ethernet |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| Power input |
DC 12 V±25%, PoE (IEEE 802.3af) |
| Maximum power consumption |
Max. 10.5 W |
| Protection |
IP67 (IEC 60529); IK10 (IEC 62262) |
| Operating environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Material |
Metal |
| Dimensions |
245 mm × 86 mm × 72 mm (9.6″ × 3.4″ × 2.8″) (L × W × H) |
| Weight |
0.92 kg (2.03 lb) |
| Compatible accessory examples |
TR-JB07-D-IN-V2, TR-UP06-C-IN-V2 |
Installation planning: match the viewing angle and illumination range to the required detail at the subject distance. Confirm recorder compatibility and the power budget before installation.
Choose accessories for this model. Items are sold separately; add each item you need to your cart.
Junction box
TR-JB07-D-IN-V2
Cable-management junction box matched to this camera.
$63.00 Original price was: $63.00.$46.00Current price is: $46.00.
Add To Cart
Bullet-camera pole mount
TR-UP06-B-IN
For a pole diameter of 67–127 mm (2.6–5 in).
$33.00 Original price was: $33.00.$24.00Current price is: $24.00.
Add To Cart
Pole adapter for junction-box combinations
TR-UP06-C-IN-V2
A compatible junction box or wall-mount assembly is required; this adapter alone does not mount the camera.
$36.00 Original price was: $36.00.$25.00Current price is: $25.00.
Add To Cart
Downloads & Support
IPC2328SB-DZK-I0
Mobile App
UniEase Mobile App
View live video, review available recordings and receive supported alerts. Formerly called UNV-Link.
Desktop / CMS
EZStation Desktop Software
Uniview video management software for supported cameras and recorders. Select Windows or macOS on the official download page.
Device Updates
Firmware
Open the manufacturer page, then choose Download → Firmware for your model.
Match the exact model, hardware revision and region before updating.
Documents
Product Documents
Manufacturer documents for this model.
