UNIVIEW · IPC6315LFW-AX5C-VG1

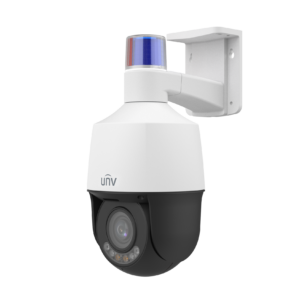

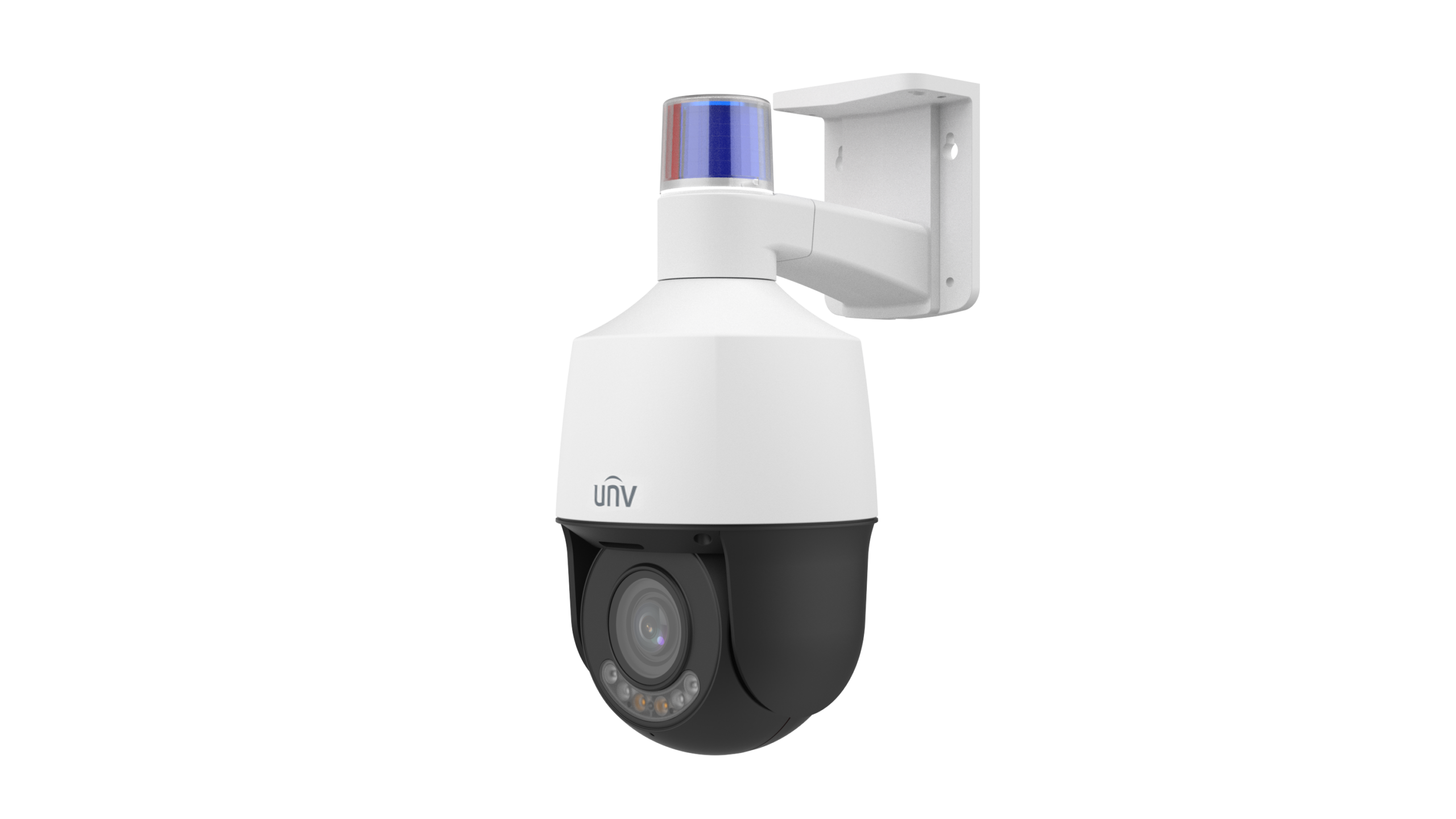

UNV IPC6315LFW-AX5C-VG1 5MP 5x Tri-Guard PTZ Camera
Follow activity and frame distant detail with 5× optical zoom. The IPC6315LFW-AX5C-VG1 combines 5 MP imaging, a 2.7 to 13.5 mm lens and motorized pan/tilt control.
5 MP5X optical zoomIP66Two-way audio
Product overview
Use wide views for orientation and optical zoom for closer inspection. Presets help return to important viewpoints, while the illumination, movement range and power requirements below support planning for the intended mounting position.
Optical detail control
5X optical zoom helps frame distant areas without moving the mounting point.
Low-light visibility
IR range: 50 m (164.0 ft). Warm-light range: 15 m (49.2 ft).
Automatic tracking
Support, target filtering: human only.
Audio and recording
A built-in microphone and speaker support listening and two-way communication. Local storage: MicroSD, up to 512 GB.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
IPC6315LFW-AX5C-VG1 |
| Resolution |
5 MP |
| Image sensor |
1/2.7″ CMOS |
| Maximum-resolution video |
5 MP (2880 × 1620), max. 30 fps |
| Lens |
2.7 to 13.5 mm |
| Aperture |
F1.6 |
| Horizontal field of view |
106.91° to 33.55° |
| Wide dynamic range |
120 dB |
| Minimum illumination |
Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR |
| IR illumination range |
50 m (164.0 ft) |
| Warm-light range |
15 m (49.2 ft) |
| Video compression |
Ultra 265, H.265, H.264, MJPEG |
| Video streams |
Dual streams |
| Event functions |
Cross-line and intrusion rules support human and vehicle detection. |
| Optical zoom |
5X |
| Pan range |
0° to 345° |
| Tilt range |
-10° to 100° |
| Presets |
1024 |
| Auto tracking |
Support, target filtering: human only |
| Built-in microphone |
Yes |
| Built-in speaker |
Yes |
| Two-way audio |
Built-in microphone and speaker |
| Audio input / output |
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm input / output |
1/1 |
| MicroSD storage |
MicroSD, up to 512 GB |
| Network storage |
ANR, NAS (NFS) |
| Ethernet |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API |
| Power input |
DC 12 V (±25%), PoE (IEEE 802.3at) |
| Maximum power consumption |
18.9W |
| Protection |
IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| Operating environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Dimensions |
133 mm × 185 mm × 286 mm (Ø 5.2″ × 7.3″ × 11.3″ ) (L × W × H) |
| Weight |
788 g (1.74 lb) |
Installation planning: allow clearance for the full pan/tilt movement, confirm the mounting hardware and size the power source for the camera’s maximum draw.
