Description
UNIVIEW · IPC6434LR-X16-VG1

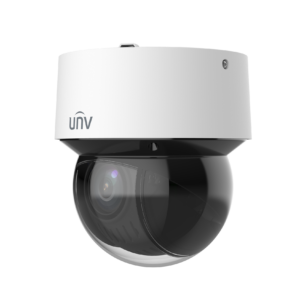

UNV IPC6434LR-X16-VG1 4MP 16x LightHunter PTZ Camera
Follow activity and frame distant detail with 16× optical zoom. The IPC6434LR-X16-VG1 combines 4 MP imaging, a 5.5 to 88 mm lens and motorized pan/tilt control.
4 MP16X optical zoomIP66
Product overview
Use wide views for orientation and optical zoom for closer inspection. Presets help return to important viewpoints, while the illumination, movement range and power requirements below support planning for the intended mounting position.
Optical detail control
16X optical zoom helps frame distant areas without moving the mounting point.
Low-light visibility
Infrared illumination reaches up to Up to 100m (328 ft) IR range.
Automatic tracking
Support, target filtering: human and vehicle.
Audio and recording
External audio input and output support compatible microphone and speaker equipment. Local storage: MicroSD, up to 512 GB.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
IPC6434LR-X16-VG1 |
| Resolution |
4 MP |
| Image sensor |
1/2.9″ CMOS |
| Maximum-resolution video |
4 MP (2688 × 1520), max. 30 fps |
| Lens |
5.5 to 88 mm |
| Aperture |
F1.78-F3.73 |
| Horizontal field of view |
50.85° to 3.47° |
| Wide dynamic range |
120 dB |
| Minimum illumination |
Color: 0.005 Lux (F1.78, AGC ON), 0 Lux with IR |
| IR illumination range |
Up to 100m (328 ft) IR range |
| Video compression |
Ultra 265, H.265, H.264, MJPEG |
| Video streams |
Dual streams |
| Event functions |
Cross-line and intrusion rules support human and vehicle detection. |
| Optical zoom |
16X |
| Pan range |
360° (endless) |
| Tilt range |
-5° to 90° (auto flip) |
| Presets |
1024 |
| Auto tracking |
Support, target filtering: human and vehicle |
| Two-way audio |
Via external audio equipment |
| Audio input / output |
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm input / output |
2/1 |
| MicroSD storage |
MicroSD, up to 512 GB |
| Network storage |
ANR, NAS (NFS) |
| Ethernet |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API |
| Power input |
DC 12 V (±10%, 3A), PoE+ (IEEE 802.3at) |
| Maximum power consumption |
Max. 23 W |
| Protection |
IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013); IK10 (IEC 62262:2002) |
| Operating environment |
-40℃~65℃ (-40°F~149°F), Humidity: ≤95% RH (non-condensing) |
| Dimensions |
Ø167 mm × 181 mm (Ø6.6″ × 7.1″) (Ø × H) |
| Weight |
2.3 kg (5.07 lb.) |
| Compatible accessory examples |
TR-FM180-IN, TR-WE45-IN, TR-CE45-IN, TR-JB12-IN |
Installation planning: allow clearance for the full pan/tilt movement, confirm the mounting hardware and size the power source for the camera’s maximum draw.
Choose accessories for this model. Items are sold separately; add each item you need to your cart.

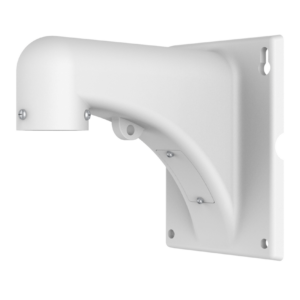

Standard wall arm
TR-WE45-IN
The current camera page also lists the TR-UF45-L-IN adapter, which is not in this store catalog. Confirm the complete mounting assembly and camera hardware revision before ordering.
$59.00 Original price was: $59.00.$40.00Current price is: $40.00.
Add To Cart
Pendant / ceiling mount
TR-CE45-IN
The current camera page also lists the TR-UF45-L-IN adapter, which is not in this store catalog. Confirm the complete mounting assembly and camera hardware revision before ordering.
$57.00 Original price was: $57.00.$42.00Current price is: $42.00.
Add To Cart
Gooseneck mount
TR-WE45-B-IN
The current camera page also lists the TR-UF45-L-IN adapter, which is not in this store catalog. Confirm the complete mounting assembly and camera hardware revision before ordering.
$190.00 Original price was: $190.00.$163.00Current price is: $163.00.
Add To Cart
PTZ recessed ceiling mount
TR-FM180-IN
For indoor recessed-ceiling installation.
$80.00 Original price was: $80.00.$67.00Current price is: $67.00.
Add To Cart
PTZ junction box
TR-JB12-IN
Optional cable enclosure used behind a compatible PTZ wall arm. This box does not replace the arm.
$230.00 Original price was: $230.00.$168.00Current price is: $168.00.
Add To Cart
