UNV IPS302015-S 15W IP Horn Speaker

IPS302015-S

UNV 15W IP Horn Speaker

Protection
IP66
Power
PoE (IEEE 802.3af), DC 12 V/1.4 A
Dimensions
220mm × 163mm × 235mm (8.7"×6.4"×9.3")

$769.00

UNV IPS302015-S 15W IP Horn Speaker

  • 15 W
  • IP66
  • Live + alarm broadcast
Check CompatibilitySend your equipment model and setup details, and we’ll help check compatibility.

Accessories & compatibility

Product Information
SKU: IPS302015-S Categories: , Tags: , , , , , , Brand:

Description

UNIVIEW · IPS302015-S

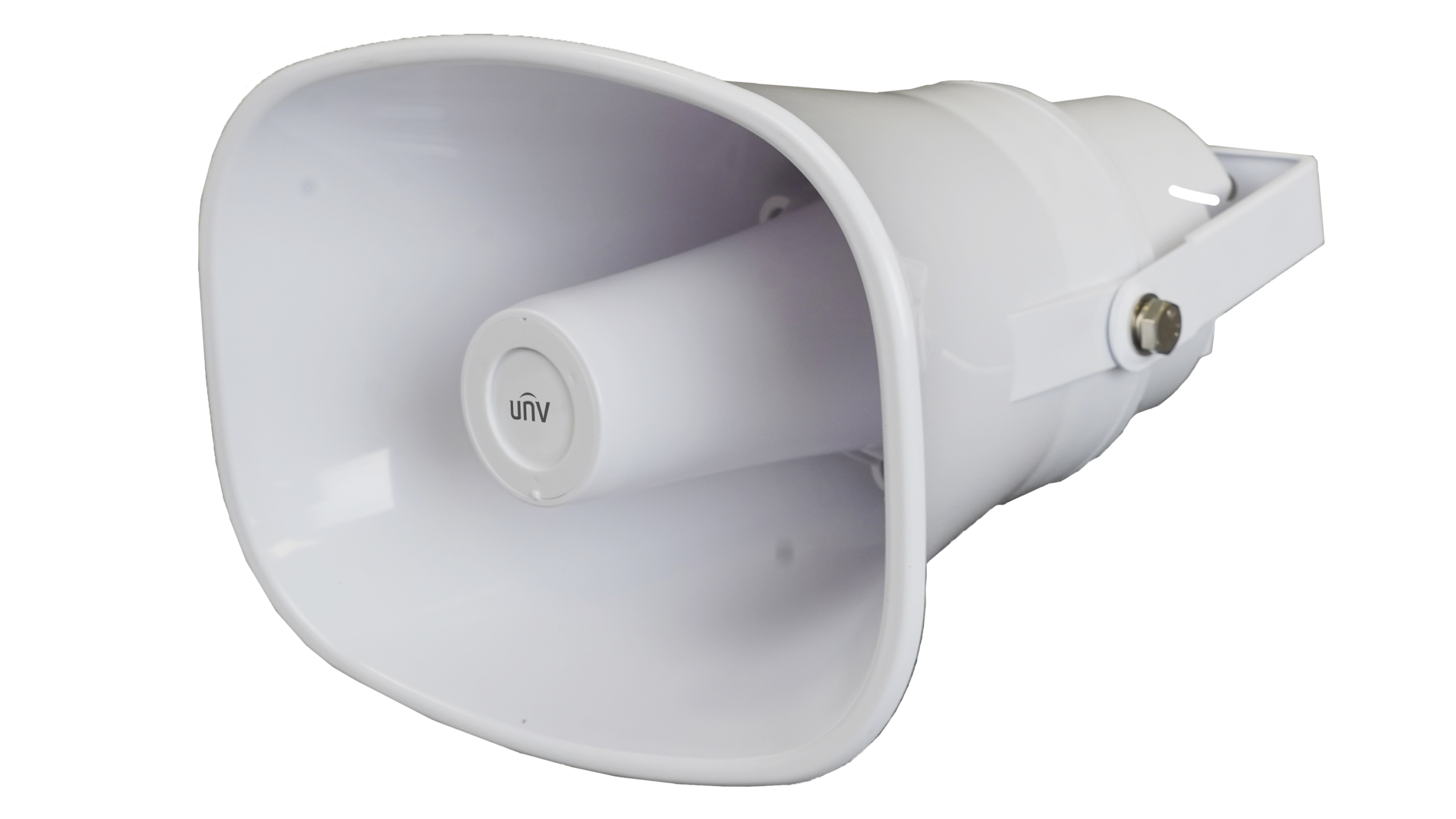

UNV IPS302015-S 15W IP Horn Speaker

Deliver live announcements, scheduled messages and alarm audio over the network. The IPS302015-S is a 15 W IP horn speaker with two-way audio support and an IP66 enclosure.

15 WIP66Live + alarm broadcastTwo-way audio

Product overview

Use network audio to communicate across a compatible surveillance or public-address system. Stored MP3 or WAV files support repeatable announcements, while live broadcast and alarm broadcast provide options for active events.

Network announcements

Supports regular, live and alarm broadcasts for different communication needs.

Two-way communication

Two-way audio is supported through the network speaker’s microphone and audio functions.

Stored messages

Supports MP3 and WAV files, with 64 MB of audio storage and up to 100 files including built-in files.

Power and integration

PoE (IEEE 802.3af), DC 12 V/1.4 A. Integration protocols include ONVIF, SIP and RTSP.

Technical specifications

Specification Details
Brand Uniview (UNV)
Model IPS302015-S
Rated speaker power 15 W
Maximum acoustic pressure 122 dBSPL
Speaker frequency response 300 Hz to 12.5 kHz
Audio integration ONVIF, SIP, LAPI, RTSP, RTP
Broadcast modes Regular Broadcast, Live Broadcast, Alarm Broadcast
Two-way audio Support
Audio files MP3, WAV
Audio file storage 64 MB
Ethernet 1 RJ45 10 M/100 M self adaptive Ethernet Interface
Analog audio input RCA (only be used for sound amplification,cannot be used for intercom)
Alarm inputs 2
Power PoE (IEEE 802.3af), DC 12 V/1.4 A
Protection IP66
Operating temperature -30 ℃ to 55 ℃ (-22 ℉ to 131 ℉)
Dimensions 220mm × 163mm × 235mm (8.7″×6.4″×9.3″)

System planning: verify the controller’s audio protocol support and the available PoE budget. The RCA input is for sound amplification and is not the intercom input.

Additional information

Weight 7 lbs
Dimensions 9 × 7 × 10 in
Brand

UNV
Output power

15W
IP rating

IP66

PLAN YOUR INSTALLATION

Accessories

Help me choose

Need help choosing an accessory for this product? Ask us to confirm compatibility before ordering.

Ask about compatible accessories

Downloads & Support

IPS302015-S
