UNIVIEW · IPC3K28SE-ADF28KMC-DL-I0

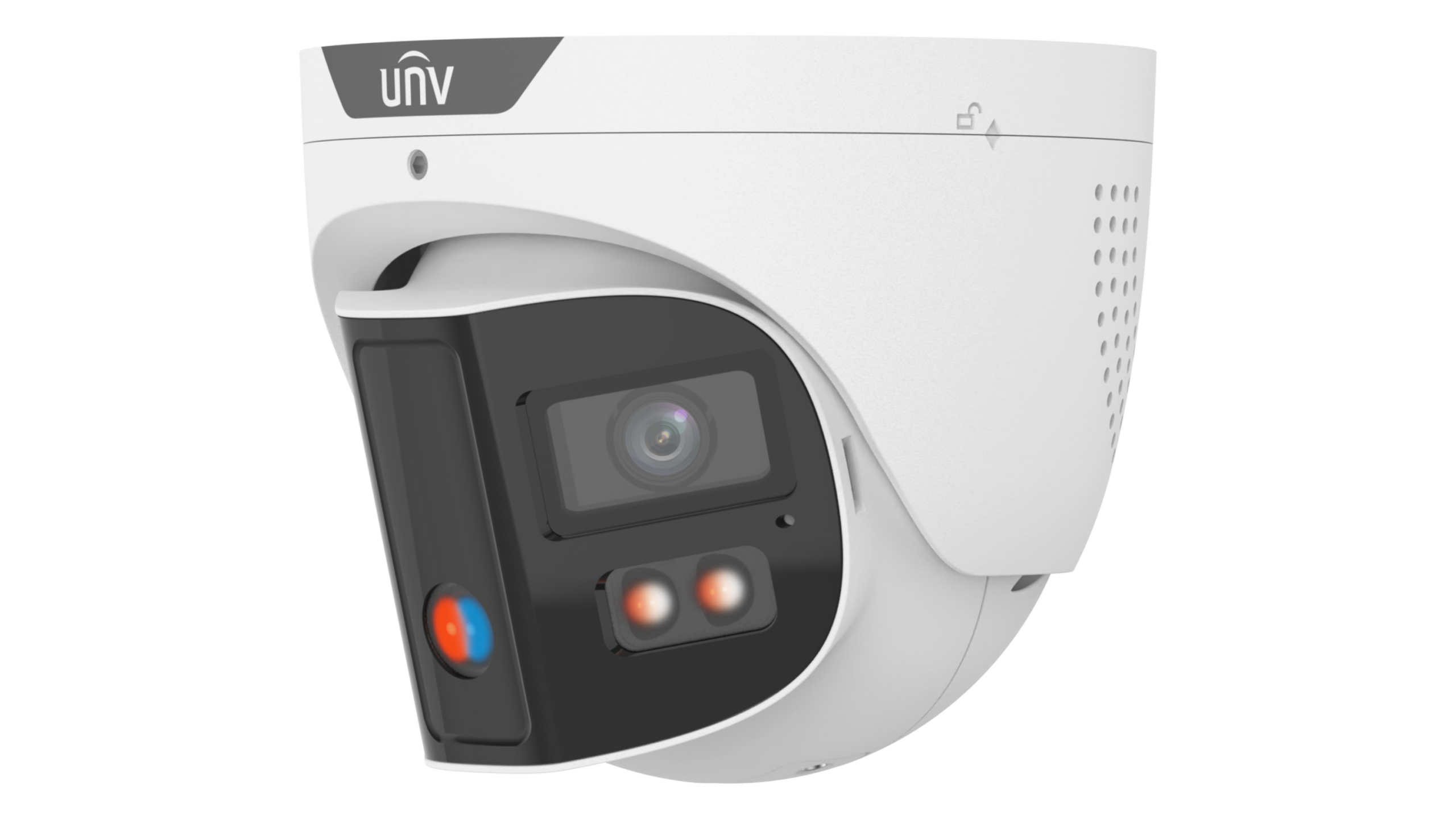

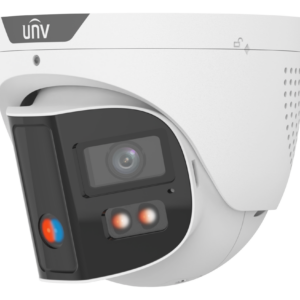

UNV IPC3K28SE-ADF28KMC-DL-I0 8MP 180° Tri-Guard 2.0 Panoramic Turret Camera
Combine 8 MP monitoring with light and audible deterrence. The IPC3K28SE-ADF28KMC-DL-I0 includes a built-in microphone and speaker, red and blue warning lights, plus IR and warm-light illumination.
8 MP180° viewIP67Two-way audio
Product overview
Monitor the scene and configure an active response to relevant events. Detection rules, illumination and audio settings can be tailored to the location, with local recording support for a compatible microSD card.
Wide scene coverage
8 MP imaging with a 2.8 mm lens and 180° horizontal field of view.
Low-light visibility
IR range: 30 m (98.4 ft). Warm-light range: 30 m (98.4 ft).
Event detection
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification.
Audio and recording
A built-in microphone and speaker support listening and two-way communication. Local storage: MicroSD, up to 512 GB.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
IPC3K28SE-ADF28KMC-DL-I0 |
| Resolution |
8 MP |
| Image sensor |
1/2.5″ CMOS |
| Maximum-resolution video |
8 MP (4096 × 1860), max. 20 fps |
| Lens |
2.8 mm |
| Aperture |
F1.0 |
| Horizontal field of view |
180° |
| Wide dynamic range |
130 dB |
| Minimum illumination |
Color: 0.002 Lux ( F1.0, AGC ON), 0 Lux with light |
| IR illumination range |
30 m (98.4 ft) |
| Warm-light range |
30 m (98.4 ft) |
| Video compression |
Ultra 265, H.265, H.264, MJPEG |
| Video streams |
Dual streams |
| Event functions |
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification. |
| Built-in microphone |
Built-in dual-mic |
| Built-in speaker |
Yes |
| Two-way audio |
Built-in microphone and speaker |
| Audio input / output |
1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm input / output |
1/1 |
| MicroSD storage |
MicroSD, up to 512 GB |
| Network storage |
ANR, NAS (NFS) |
| Ethernet |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Integration |
API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| Power input |
DC 12 V±25%, PoE (IEEE 802.3af) |
| Maximum power consumption |
Max. 12.6 W |
| Protection |
IP67 (IEC 60529); IK10 (IEC 62262) |
| Operating environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Material |
Metal |
| Dimensions |
Ø128.7 mm × 109.9 mm (Ø5.1″ × 4.3″) (Ø × H) |
| Weight |
0.86 kg (1.90 lb) |
| Compatible accessory examples |
TR-JB03-H-IN-V2, TR-WM03-B-IN-V2, TR-JB07/WM03-F-IN-V2 |
Installation planning: match the viewing angle and illumination range to the required detail at the subject distance. Confirm recorder compatibility and the power budget before installation.
Optional accessories for this model. Choose only the parts your installation needs; each item is sold separately.
Wall mount with rear cable entry
TR-JB07/WM03-F-IN-V2
Wall-mount assembly with a rear cable outlet.
$80.00 Original price was: $80.00.$67.00Current price is: $67.00.
In Stock
Add To Cart
Wall mount
TR-WM03-B-IN-V2
Wall-mount bracket for this camera.
$68.00 Original price was: $68.00.$51.00Current price is: $51.00.
In Stock
Add To Cart
Pendant mount
TR-CM24-IN
For pendant installation. Check the required mounting base or junction box before ordering.
$30.00 Original price was: $30.00.$19.00Current price is: $19.00.
In Stock
Add To Cart
Junction box
TR-JB03-H-IN-V2
Cable-management junction box matched to this camera.
$33.00 Original price was: $33.00.$26.00Current price is: $26.00.
In Stock
Add To Cart
Pole adapter for junction-box combinations
TR-UP06-C-IN-V2
A compatible junction box or wall-mount assembly is required; this adapter alone does not mount the camera.
$36.00 Original price was: $36.00.$25.00Current price is: $25.00.
In Stock
Add To Cart
Downloads & Support
IPC3K28SE-ADF28KMC-DL-I0
Mobile App
UniEase Mobile App
View live video, review available recordings and receive supported alerts. Formerly called UNV-Link.
Desktop / CMS
EZStation Desktop Software
Uniview video management software for supported cameras and recorders. Select Windows or macOS on the official download page.
Device Updates
Firmware
Open the manufacturer page, then choose Download → Firmware for your model.
Match the exact model, hardware revision and region before updating.
Documents
Product Documents
Manufacturer documents for this model.
