Description

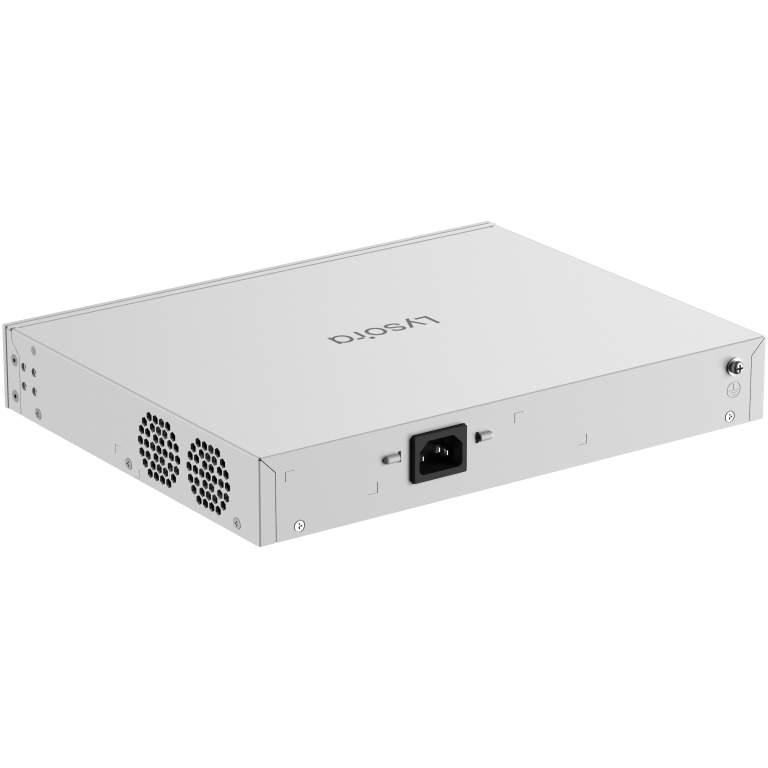

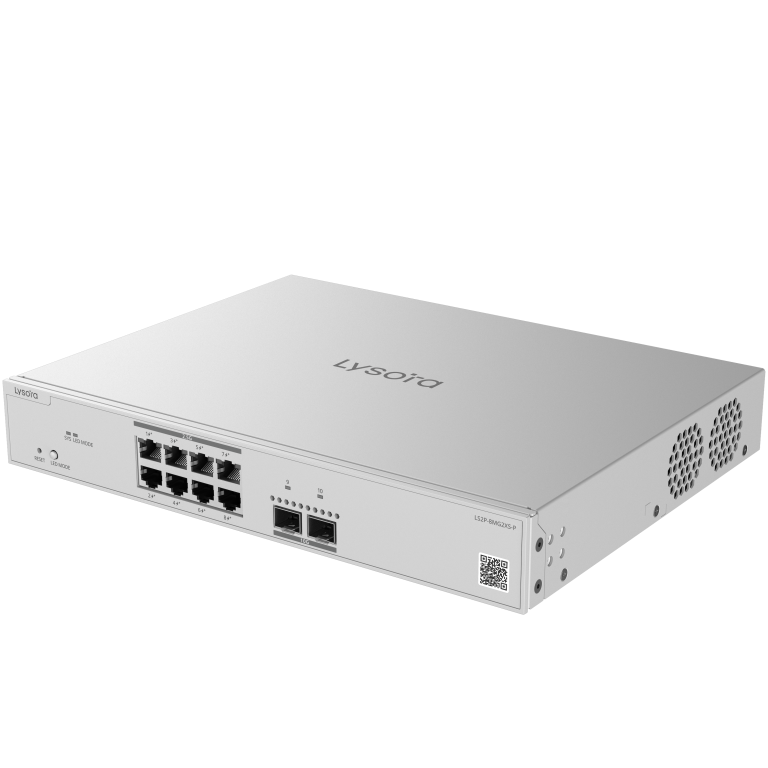

Lysora LS2P-8MG2XS-P 8-Port 2.5G Managed PoE+ Switch
The Lysora LS2P-8MG2XS-P combines eight 2.5 Gigabit copper ports with two 10 Gigabit SFP+ uplinks in a metal rack or desktop enclosure. PoE/PoE+ output, VLAN controls and web, cloud and app management make it a flexible access switch for a growing business network.
Key Features
- 8 x 10/100/1000/2500BASE-T ports with PoE/PoE+ output
- 2 x 10G SFP+ uplink ports
- 80 Gbps switching capacity
- IPv4 and IPv6 static routing, up to 64 static routes each
- IEEE 802.1Q VLAN, STP/RSTP/MSTP and LACP
- Web, cloud and app management; SNMPv1/v2c/v3
Designed For Your Network
Connect multi-gigabit access points and other Ethernet devices through eight ports supporting 10/100/1000/2500 Mbps. Two SFP+ uplinks provide a faster path from the access layer to the rest of the network.
Separate voice, camera and business traffic with port-based and IEEE 802.1Q VLANs. Access controls, DHCP snooping and storm control support a more controlled network design.
Manage distributed installations through the supported web, cloud and app interfaces. PoE watchdog and cable testing offer useful tools for investigating powered-device and cabling issues.
Installation And Power
- Rack or desktop installation; metal enclosure.
- Rated AC input: 100–240 V AC, 50/60 Hz.
- Keep left-to-right airflow clear; two fixed fans. Operating temperature: 0–50°C.
Management And Resources
Access supported devices through Lysora Cloud or the Lysora Cloud mobile app. Available functions depend on the model and firmware. Use the Downloads tab for verified app and document links.
