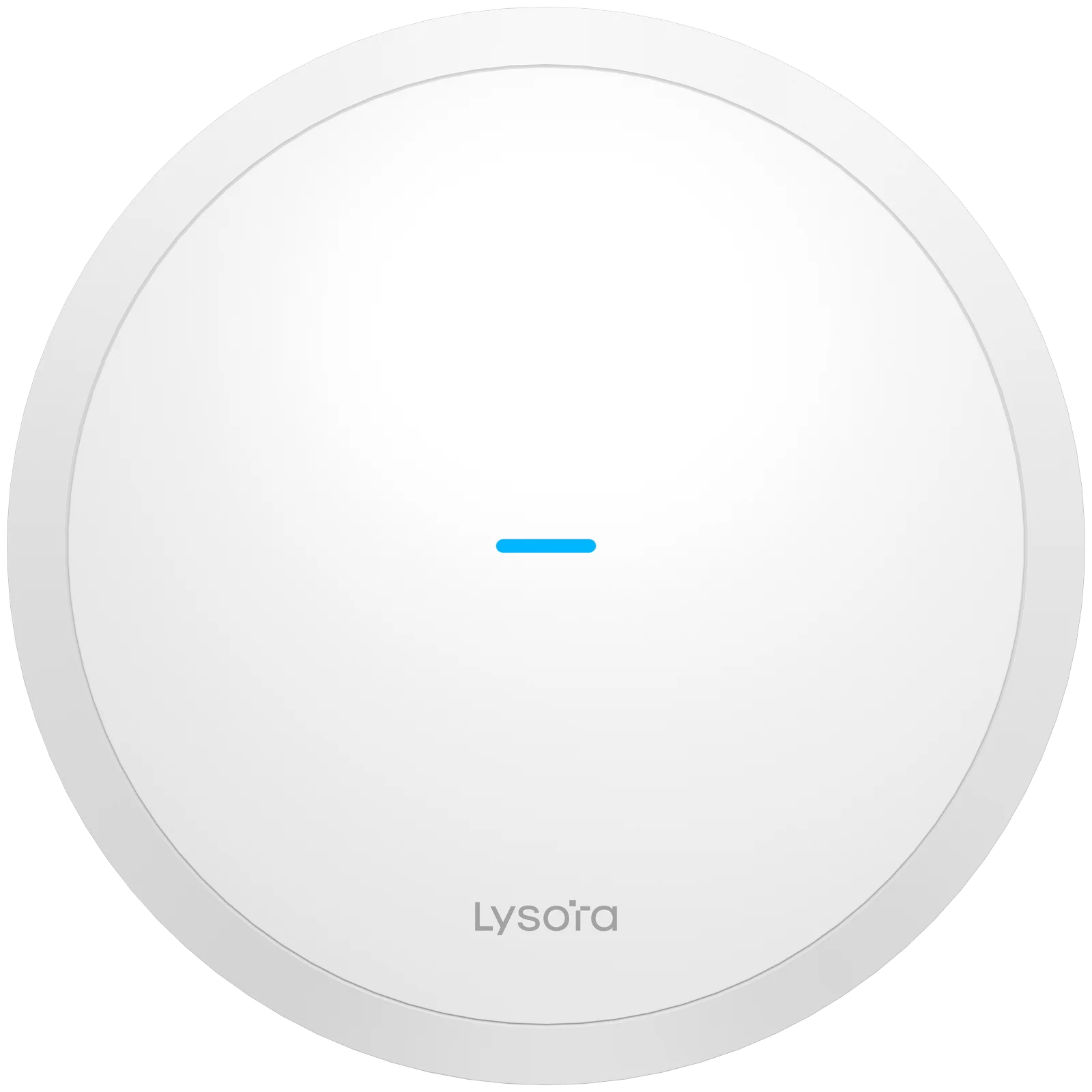

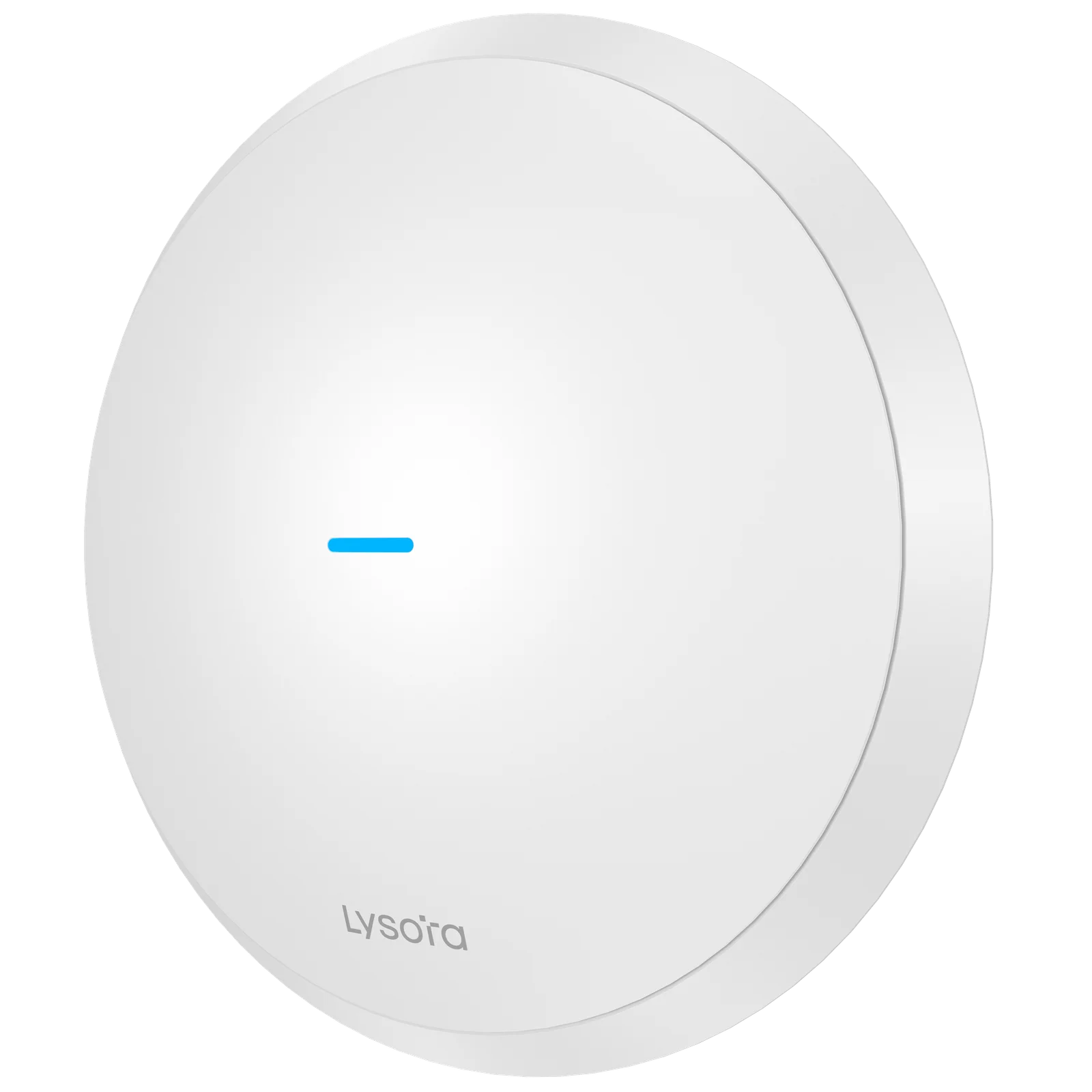

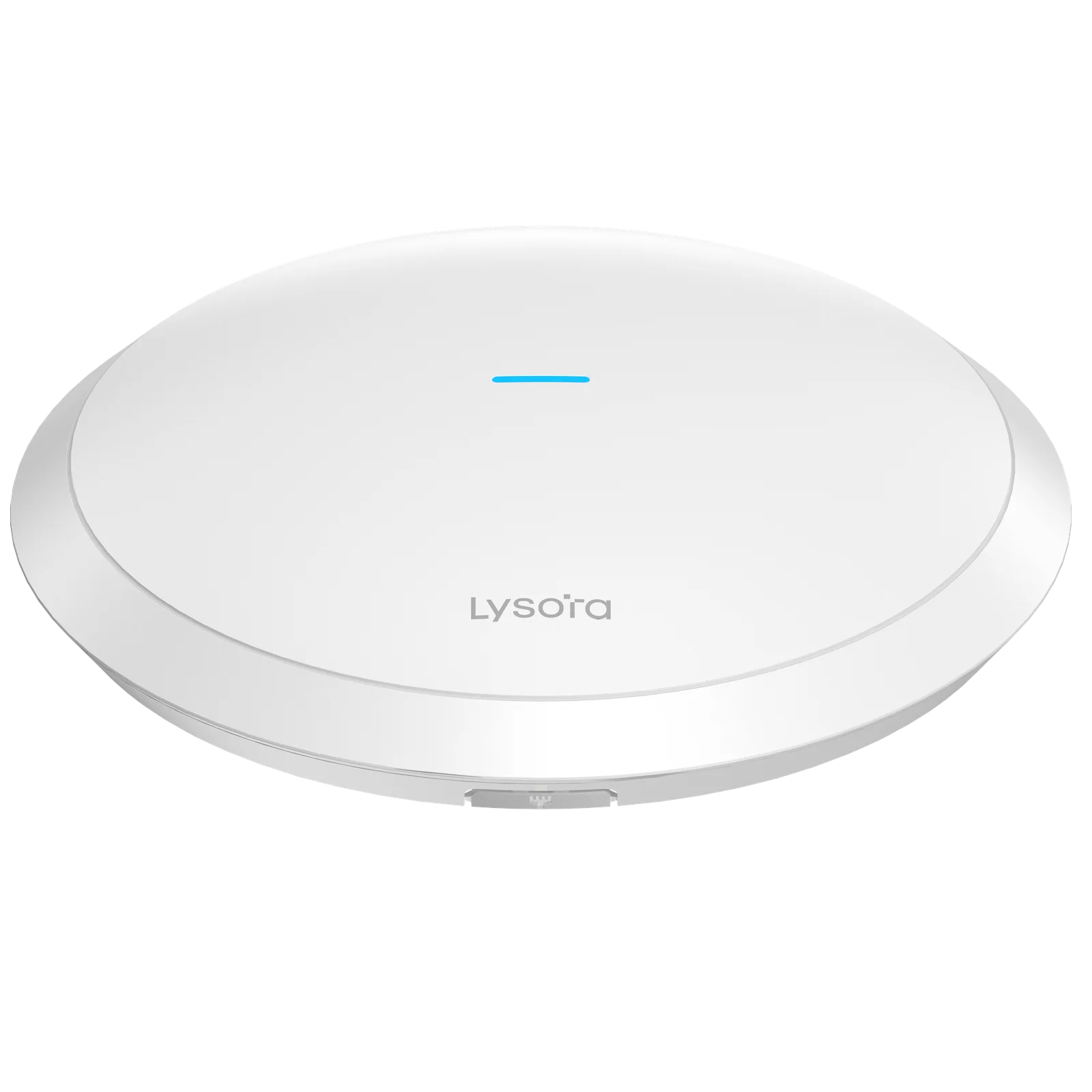

Lysora L6Lite AX1800 Wi-Fi 6 Indoor Access Point
Lysora L6Lite AX1800 Wi-Fi 6 Indoor Access Point - Image 2
Lysora L6Lite AX1800 Wi-Fi 6 Indoor Access Point - Image 3
Lysora L6Lite AX1800 Wi-Fi 6 Indoor Access Point - Image 4

L6Lite

Lysora AX1800 Wi-Fi 6 Indoor Access Point

Port Configuration
1 × Gigabit RJ45
Wi-Fi Bands
2.4 GHz; 5 GHz
Power Input
PoE or 12 V / 1.5 A DC; DC adapter excluded

$118.00

Bring centrally managed Wi-Fi 6 to indoor rooms with the compact Lysora L6Lite. Its 2.4 GHz and 5 GHz radios connect through a Gigabit Ethernet port, while the 175 mm enclosure supports ceiling or wall installation.

  • Wi-Fi 6 on 2.4 GHz and 5 GHz
  • 573 Mbps at 2.4 GHz and 1201 Mbps at 5 GHz
  • One Gigabit Ethernet port
Check CompatibilitySend your equipment model and setup details, and we’ll help check compatibility.

Accessories & compatibility

Product Information
SKU: L6Lite Category: Tags: , , , , , , , Brand:

Description

Lysora L6Lite AX1800 Wi-Fi 6 Indoor Access Point

Bring centrally managed Wi-Fi 6 to indoor rooms with the compact Lysora L6Lite. Its 2.4 GHz and 5 GHz radios connect through a Gigabit Ethernet port, while the 175 mm enclosure supports ceiling or wall installation.

Key Features

  • Wi-Fi 6 on 2.4 GHz and 5 GHz
  • 573 Mbps at 2.4 GHz and 1201 Mbps at 5 GHz
  • One Gigabit Ethernet port
  • Ceiling or wall mounting with mounts included
  • Wireless mesh, VLANs and guest portal
  • Lysora Cloud, app and local web management

Designed For Your Network

For small offices, dual-band 2×2 MU-MIMO gives staff devices separate radio bands for everyday connectivity. Wireless meshing provides another option when extending coverage to areas where an Ethernet run is difficult.

For guest and connected-device networks, VLAN support and client isolation let administrators separate traffic. A captive portal and bandwidth controls help shape how visitors use the wireless service.

For installers supporting several rooms or sites, Lysora Cloud and app management provide remote access to network settings. The included mounting hardware helps keep the access point off desks and out of the way.

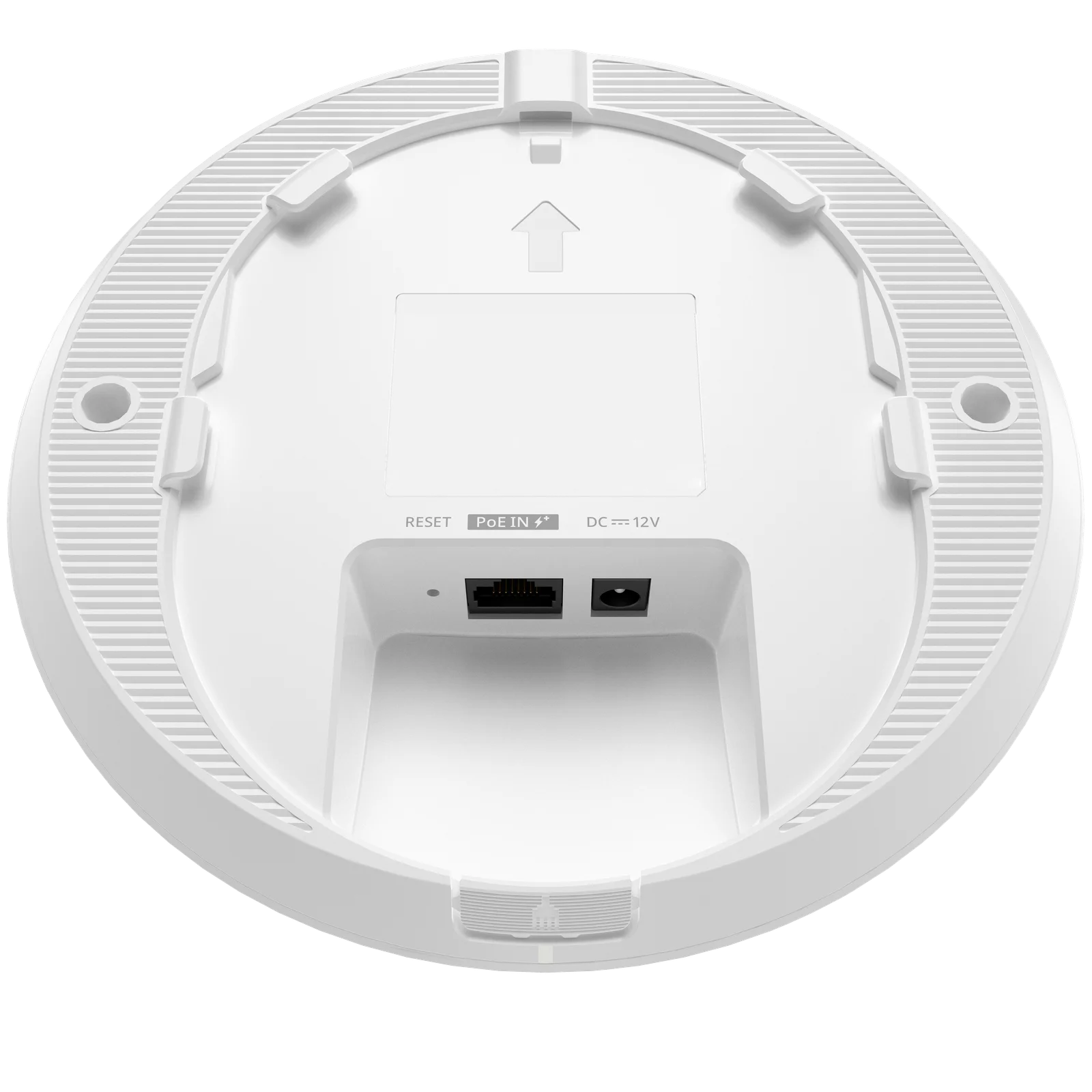

Installation And Power

  • Indoor IP41 enclosure; operating temperature 0°C to 40°C.
  • Ceiling and wall mounting hardware is included.
  • Supports PoE or 12 V / 1.5 A DC power; DC adapter is excluded.

Management And Resources

Access supported devices through Lysora Cloud or the Lysora Cloud mobile app. Available functions depend on the model and firmware. Use the Downloads tab for verified app and document links.

View Official L6Lite Product Information

Additional information

Weight 1.3 lbs
Dimensions 7 × 1.5 in
Brand

Lysora
Model

L6Lite
Product Type

Indoor Access Point
Port Configuration

1 × Gigabit RJ45
Wi-Fi Standard

Wi-Fi 6 (802.11ax)
Wi-Fi Bands

2.4 GHz; 5 GHz
Power Input

PoE or 12 V / 1.5 A DC; DC adapter excluded
Mounting

Ceiling Mount;Wall-mounted (Mounts Included)

PLAN YOUR INSTALLATION

Accessories

Help me choose

Need help choosing an accessory for this product? Ask us to confirm compatibility before ordering.

Ask about compatible accessories

Downloads & Support

L6Lite

The linked datasheet is in Japanese. Confirm the U.S. model and regional specifications before purchase. Use the exact model, hardware revision and region when selecting firmware or documents. The official Download Center may require sign-in; no individual firmware file is supplied here.

Need Help With This Product?

Technical Specifications

BrandLysora
ModelL6Lite
DimensionsØ175mm x 39mm (Ø6.89 in. x 1.54 in.) (excluding the mounting bracket)
Weight≤ 0.4 kg (0.88 lbs) (without packaging materials) ≤ 0.6 kg (1.32 lbs) (with packaging materials)
Wi-Fi StandardsIEEE 802.11 a/b/g/n/ac/ax
Spatial Streams4
Manufacturer Coverage Estimate125 ㎡ (1345.49 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
Ethernet Interfaces1 x 10/100/1000BASE-T port
Radio Bands And Protocols2.4 GHz: IEEE 802.11 b/g/n/ax 5 GHz: IEEE 802.11 a/n/ac/ax
MIMO2.4 GHz: 2 x 2 MU-MIMO 5 GHz: 2 x 2 MU-MIMO
Channel Bandwidth2.4 GHz: 20/40 MHz 5 GHz: 20/40/80 MHz
Wireless PHY Data Rates2.4 GHz: 573 Mbps 5 GHz: 1201 Mbps
Antenna Gain2.4 GHz: 3.13 dBi 5 GHz: 4.64 dBi
Power Consumption≤ 12.95 W
Power MethodPoE or 12 V / 1.5 A DC; DC adapter excluded
MountingCeiling Mount,Wall-mounted (Mounts Included)
Enclosure And Surge RatingIP Rating: IP41 Lightning Protection/Surge Protection: ±2 kV
Operating And Storage ConditionsOperating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: –40°C to +70°C (–40°F to +158°F) Operating Humidity: 5% RH to 95% RH (Non-condensing) Storage Humidity: 5% RH to 95% RH (Non-condensing)
Max. Number Of SSIDs8
Band SteeringYes
Wireless MeshingYes
802.1Q VLANYes
MLONo
4K-QAMNo
RF BeamformingYes
Client Device IsolationYes
Captive PortalYes
Local Web ManagementYes
Lysora Cloud ManagementYes
SNMPYes
Roaming802.11k/v/r; Layer 2 and Layer 3 roaming
BandsDual-band: 2.4 / 5 GHz (no 6 GHz radio)
