UNIVIEW · NVR502-16B-P16

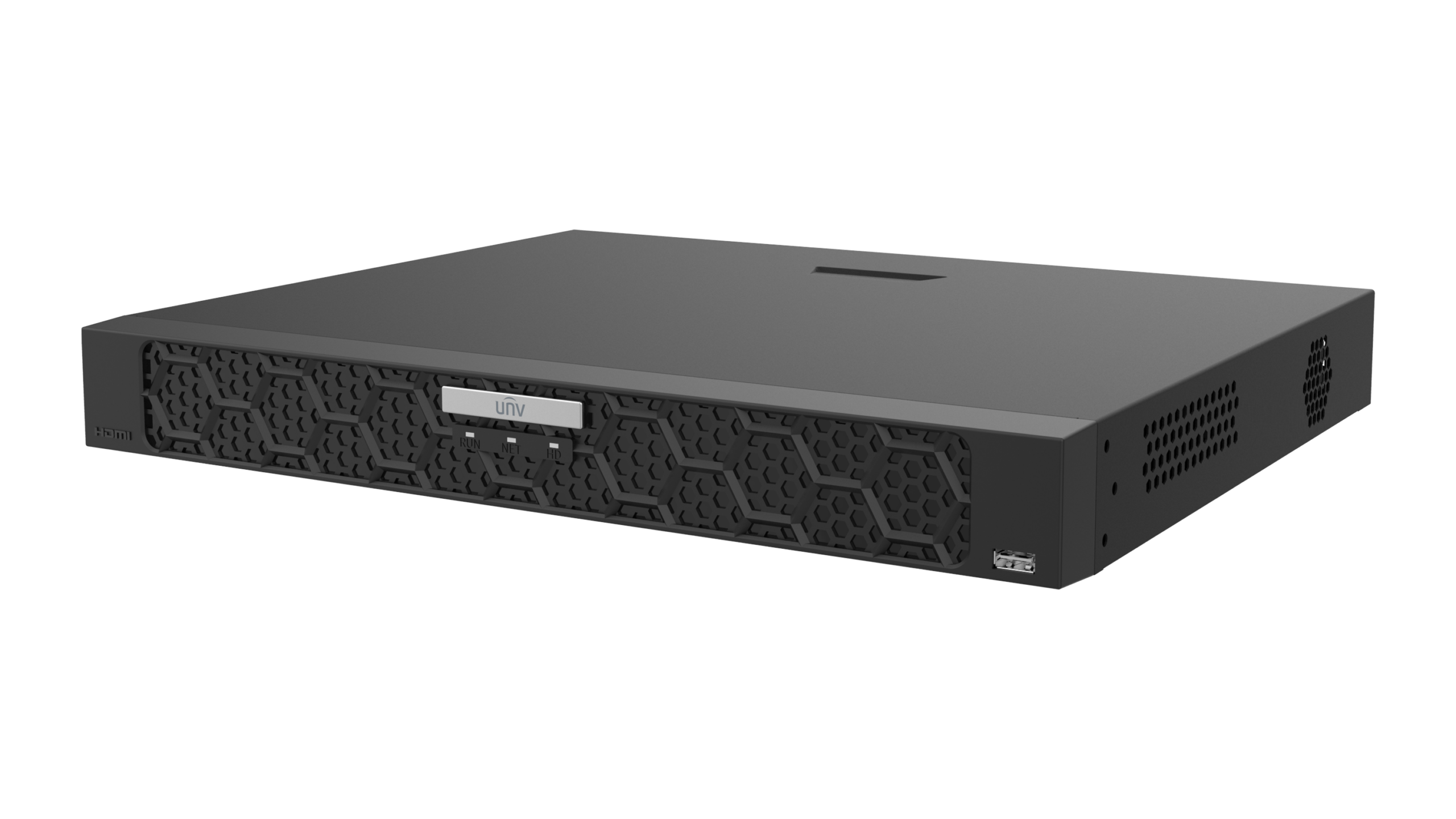

UNV NVR502-16B-P16 16-Channel 16-Port PoE NVR
Bring 16 IP camera channels together for recording, live viewing and playback. The NVR502-16B-P16 combines 2 SATA interfaces with HDMI and VGA display outputs and integrated PoE camera connections.
16 IP channels2 SATA16 PoE ports
Product overview
Build a recording system around the camera count, incoming bandwidth and storage requirements of the site. Local display outputs and network access provide practical ways to manage the connected camera views and review recordings.
IP camera capacity
16 recording channels, with incoming bandwidth of 320 Mbps.
Storage planning
2 SATA interfaces give you room to configure recording storage. Retention depends on camera bitrates, schedules and the installed drives.
Integrated PoE
16 RJ45 10 M/100 M self-adaptive Ethernet Interface. PoE budget: Max 30 W for single port, Max 240 W in total.
Network integration
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface. Size the camera network around the recorder’s bandwidth and storage plan.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
NVR502-16B-P16 |
| IP camera inputs |
16-ch |
| Incoming bandwidth |
320 Mbps |
| Outgoing bandwidth |
160 Mbps |
| Recording resolution |
Up to 16 MP |
| HDMI maximum output |
4K (3840 × 2160)/30 Hz |
| VGA maximum output |
1920 × 1080/60 Hz |
| Video compression |
Ultra 265, H.265, H.264 |
| SATA interfaces |
2 SATA Interfaces |
| Drive capacity support |
Up to 24 TB for each HDD |
| Drive capacity conditions |
Capacity depends on drive compatibility and ambient temperature; manufacturer specifies ≤40°C for the listed maximum capacity. |
| PoE camera ports |
16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| PoE power budget |
Max 30 W for single port, Max 240 W in total |
| Ethernet |
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| Alarm inputs |
8-ch |
| Alarm outputs |
2-ch |
| Power input |
AC 100 to 240 V |
| Dimensions |
380mm × 322mm × 53mm |
System planning: confirm the installed drive configuration and camera compatibility. Supported capacity is not a statement of included storage. Allow for smart-mode bandwidth limits and each camera’s resolution and bitrate.
Downloads & Support
NVR502-16B-P16
Mobile App
UniEase Mobile App
View live video, review available recordings and receive supported alerts. Formerly called UNV-Link.
Desktop / CMS
EZStation Desktop Software
Uniview video management software for supported cameras and recorders. Select Windows or macOS on the official download page.
Device Updates
Firmware
Open the manufacturer page, then choose Download → Firmware for your model.
Match the exact model, hardware revision and region before updating.
Documents
Product Documents
Manufacturer documents for this model family. Select your full model on the resource page.
