| Brand | Premium-NDAA |
|---|

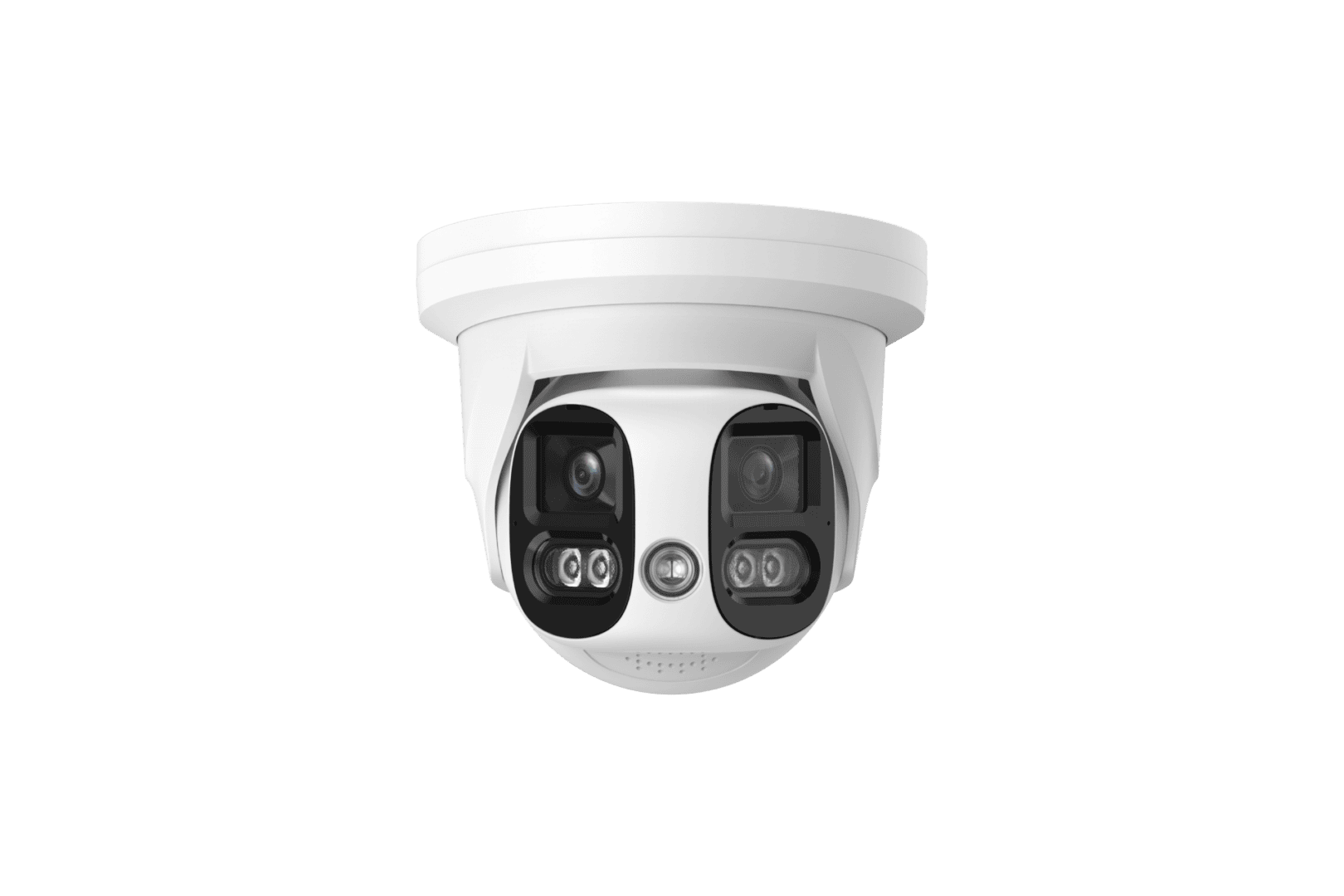

| Model | HNC348NP-XDLUSLR/2.8 |
|---|
| Image Sensor | 1/2.7-in. 4MP Progressive CMOS |
|---|
| Maximum Resolution | 4096 × 1860 |
|---|
| Minimum Illumination | Color: 0.002 Lux at F1.4 Black/White: 0.0002 Lux at F1.4 0 Lux With IR Light On |
|---|
| Number of Illuminators | IR: Two (2) White Light: Two (2) |
|---|
| Illuminator Control | Automatic, Manual |
|---|
| Maximum Illumination Distance | IR: Up to 25.0 m (82.0 ft) White Light: Up to 20.0 m (66.0 ft) |
|---|
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
|---|
| Installation Angle | Pan: 0° to 360° Tilt: 0° to 77° Rotation: 0° to 360° |
|---|
| Iris Type | Fixed |
|---|
| Lens Type | Fixed |
|---|
| Focal Length | 2.8 mm |
|---|
| Maximum Aperture | F1.4 |
|---|
| Field of View | Horizontal: 180° Vertical: 86 |
|---|
| Close Focus Range | 0.8 m (2.6 ft) |
|---|
| DORI Distance | Detect: 50.6 m (166.0 ft) Observe: 20.2 m (66.3 ft) Recognize: 10.1 m (33.1 ft) Identify: 5.1 m (16.7 ft) |
|---|
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
|---|
| Standard Codec | Supported |
|---|
| Stream Capability | Three (3) Streams |
|---|
| Resolution | 8MP (4096 × 1860), 6MP (3632 x 1632), 4MP (3040 x 1368), 1.6MP (1920 x 860), 1200 x 530, 960 x 432 |
|---|
| Maximum Frame Rate | Main Stream: 4096 × 1860 at 20 fps Sub Stream 1: 1200 × 530 at 20 fps Sub Stream 2: 1920 × 1080 at 20 fps |
|---|
| Video Bit Rate | H.264: 6 to 16384 kbps H.265: 6 to 16384 kbps |
|---|
| Bit Rate Control | CBR/VBR |
|---|
| Day/Night | Automatic (ICR), Color, Black and White |
|---|
| Light Balancing | Wide Dynamic Range (120 dB) |
|---|
| Noise Reduction | 3D NR |
|---|
| Day/Night | Automatic (ICR), Color, Black and White |
|---|
| Image Angle | 0°/90°/180°/270° |
|---|
| Mirror Rotation | Supported |
|---|
| Region of Interest | Four (4) Zones |
|---|
| Privacy Masking | Four (4) Zones |
|---|
| Video Content Analytics | Line Crossing, Intrusion, Loitering Detection |
|---|
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
|---|
| Smart Sense | Electronically Zoom and Track Multiple Humans/Vehicles and Trigger Alarms Automatically |
|---|
| Compression | G.711a, G.711Mu, PCM |
|---|
| Interface | Input: Built-in Dual Microphones and One (1) RCA Port Output: Built-in Speaker and One (1) RCA Port |
|---|
| Event | No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Scene Changing, Audio Detection, External Alarm |
|---|
| Interface | Input: One (1) Channel (3V-5VDC, 5 mA) Output: One (1) Channel (12 VDC, 300 mA) |
|---|
| Interface | RJ-45 (10/100 Base-T) |
|---|
| Protocol | Pv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
|---|
| Interoperability | ONVIF (Profile S/G/T), CGI |
|---|
| Browser | Chrome, Firefox, Edge |
|---|
| Storage | FTP, SFTP, Micro SD Card (Max. 256 GB) |
|---|
| Power Supply | 12 VDC, PoE (802.3af) |
|---|
| Power Consumption | 12 VDC • Maximum: 8.7 W • Normal: 4.0 W PoE • Maximum: 10.9 W • Normal: 5.0 W |
|---|
| Net Weight | 1.0 kg (2.2 lb) |
|---|
| Gross Weight | 1.3 kg (2.8 lb) |
|---|
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing) |
|---|
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
|---|
| Protection Ratings | IP67 |
|---|
| Product Dimensions (L x W x H) | 140.6 mm × Φ 142.5 mm (5.5 in. × Φ 5.6 in.) |
|---|
| Material | Metal |
|---|
| Certifications | FCC, IC |
|---|
| Compliance | NDAA |
|---|
| Electrical Box | HTH-280NJ-J04 |
|---|
| Wall Mount | HTH-273NJ-140B |
|---|
| Pole | HTH-271NJ-140 |
|---|
| 2 to 4 ft telescope mount | HTH-271NJ-140-24 |
|---|
| 3 to 6 ft telescope mount | HTH-271NJ-140-36 |
|---|
