Description
UNIVIEW · IPC3638SB-ADZK-I0

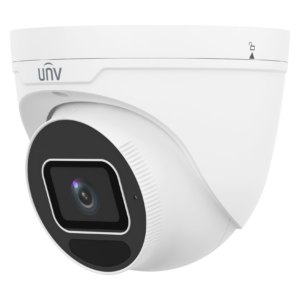

UNV IPC3638SB-ADZK-I0 8MP LightHunter Varifocal IP Turret Camera
Monitor the scene with 8 MP video and a 2.8 to 12 mm varifocal lens. The IPC3638SB-ADZK-I0 combines infrared night illumination, a built-in microphone and local microSD recording support.
8 MP2.8 to 12 mmIP67Built-in mic
Product overview
Adjust the viewing angle to suit the installation and the detail needed at the subject distance. Wide dynamic range helps balance bright and shaded areas, while the listed illumination and storage options support day-to-night monitoring.
Image and lens
8 MP imaging with a 2.8 to 12 mm lens and 107.4° to 29.2° horizontal field of view.
Low-light visibility
Infrared illumination reaches up to 40 m (131.2 ft).
Event detection
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification.
Audio and recording
The built-in microphone adds sound to the recorded scene. Local storage: MicroSD, up to 512 GB.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
IPC3638SB-ADZK-I0 |
| Resolution |
8 MP |
| Image sensor |
1/2.8″ CMOS |
| Maximum-resolution video |
8 MP (3840 × 2160), max. 20 fps |
| Lens |
2.8 to 12 mm |
| Aperture |
F1.6 |
| Horizontal field of view |
107.4° to 29.2° |
| Wide dynamic range |
120 dB |
| Minimum illumination |
Color: 0.0025 Lux (F1.6, AGC ON), 0 Lux with IR |
| IR illumination range |
40 m (131.2 ft) |
| Video compression |
Ultra 265, H.265, H.264, MJPEG |
| Video streams |
Triple streams |
| Event functions |
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification. |
| Built-in microphone |
Yes |
| Built-in speaker |
No |
| Audio input / output |
N/A |
| Alarm input / output |
N/A |
| MicroSD storage |
MicroSD, up to 512 GB |
| Network storage |
ANR, NAS (NFS) |
| Ethernet |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| Power input |
DC 12 V±25%, PoE (IEEE 802.3af) |
| Maximum power consumption |
Max. 9.0 W |
| Protection |
IP67 (IEC 60529); IK10 (IEC 62262) |
| Operating environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Material |
Metal |
| Dimensions |
Ø129 mm × 110 mm (Ø5.1″ × 4.3″) (Ø × H) |
| Weight |
0.69 kg (1.52 lb) |
| Compatible accessory examples |
TR-JB03-H-IN-V2, TR-WM03-B-IN-V2, TR-JB07/WM03-F-IN-V2 |
Installation planning: match the viewing angle and illumination range to the required detail at the subject distance. Confirm recorder compatibility and the power budget before installation.
