Description

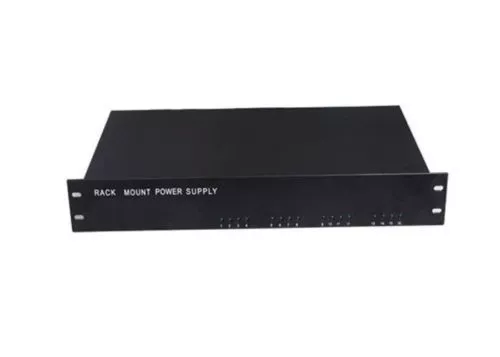

The Rack Mount CCTV Power Supply is designed with sixteen (16) individual fused outputs for powering CCTV Cameras and other video accessories.
It will provide 12V DC via sixteen (16) fused outputs with a total of 20 Amp continuous supply current.
Features:
- Power up to 16 CCTV CCTV surveillance cameras
- 12 Volts DC
- 20 Amp total output
- Max output current up to 1.6 Amp/Channel
- 16 individually PTC auto-reset fuses protected outputs
- Switch mode power supply (regulated voltage)
- Integral surge protection
- Individual LED power indication
- Individual PTC reset-able fuses
- Power ON/OFF switch (internal)
- Spare fuses included.
- Unit maintains camera synchronization
- Ease of installation saves time and eliminates costly labor
- Modular 1.5U standard EIA 19″ rack mount chassis
Specifications:
| Power | 240W | |
| Metal Case Dimension | 48×25.2×7.5cm | |
| Net Weight | 3.4kgs | |
| Input | Input Voltage | 110 – 120V AC |
| Input Voltage Frequency | 50Hz-60Hz | |
| Efficiency | ≥80% | |
| Output
|
Output Voltage | 12VDC±5% |
| Output Current | 20A, 16 channels for 16 sets load | |
| Fuse | Type /Rating | PTC 1.6A/60V |
| Protection | Over Voltage Protection | When over voltage occurs, it will switch to self-protection status to protect the load. |
| Over Current Protection | When over current occurs, the corresponding channel output will automatically switch to self-protection status, and the other channels output will work normally. When the fault is cleared, it will switch back to normal. | |
| Short-circuit Protection | When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically. | |
| Circumstances | Working Temperature | 0℃-+50℃ |
| Storage Temperature | -20℃-+80℃ | |
| RH | 20%-90% | |
| Heat Release | Natural heat dissipation | |
