Description
UNIVIEW · IPC2A14LP-ADF40KC-4G-US

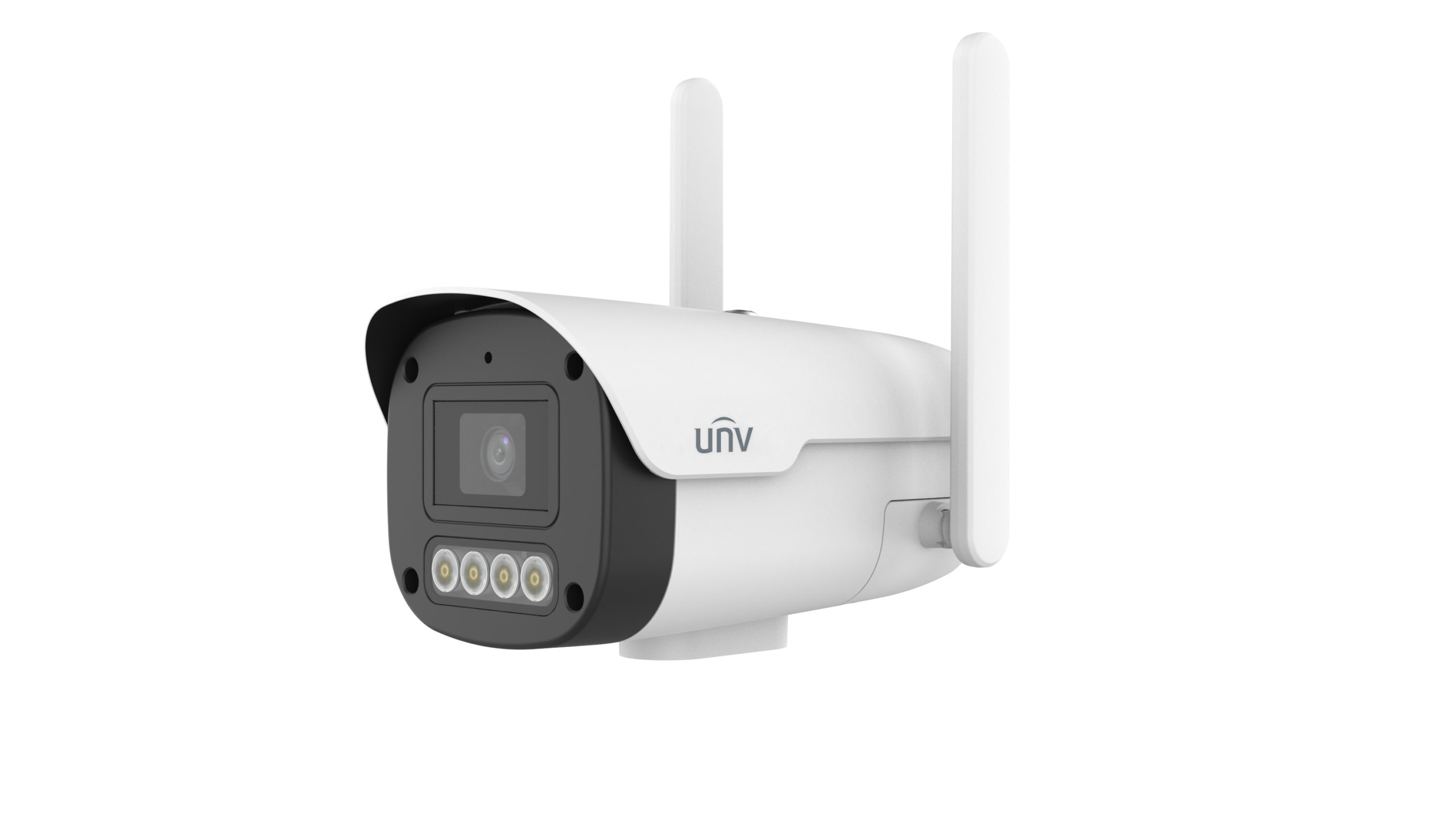

UNV IPC2A14LP-ADF40KC-4G-US 4MP 4G LTE Bullet Camera
Bring 4 MP video to a site using a compatible 4G connection. The IPC2A14LP-ADF40KC-4G-US combines a 4 mm lens, IR and warm illumination, a microphone and a speaker in an IP67 bullet camera.
4 MP4.0 mmIP67Two-way audio
Product overview
Use the US cellular variant where a compatible mobile data service is available. Match the SIM and carrier bands, then plan the 12 V DC power source and recording method for the location.
Image and lens
4 MP imaging with a 4.0 mm lens and 79.0° horizontal field of view.
Low-light visibility
IR range: 50 m (164.0 ft). Warm-light range: 30 m (98.4 ft).
Event detection
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification.
Audio and recording
A built-in microphone and speaker support listening and two-way communication. Local storage: MicroSD, up to 512 GB.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
IPC2A14LP-ADF40KC-4G-US |
| Resolution |
4 MP |
| Image sensor |
1/3.0″ CMOS |
| Maximum-resolution video |
4 MP (2560 × 1440), max. 30 fps |
| Lens |
4.0 mm |
| Aperture |
F1.6 |
| Horizontal field of view |
79.0° |
| Wide dynamic range |
120 dB |
| Minimum illumination |
Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light |
| IR illumination range |
50 m (164.0 ft) |
| Warm-light range |
30 m (98.4 ft) |
| Video compression |
Ultra 265, H.265, H.264, MJPEG |
| Video streams |
Dual streams |
| Event functions |
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification. |
| Built-in microphone |
Yes |
| Built-in speaker |
Yes |
| Two-way audio |
Built-in microphone and speaker |
| Audio input / output |
1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm input / output |
1/1 |
| MicroSD storage |
MicroSD, up to 512 GB |
| Network storage |
ANR |
| Ethernet |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Power input |
DC 12 V±25% |
| Maximum power consumption |
Max. 9.0 W |
| Protection |
IP67 (IEC 60529) |
| Operating environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Material |
Graphene + Metal |
| Dimensions |
169 mm × 113 mm × 96 mm (6.7″ × 4.4″ × 3.8″) (L × W × H) |
| Weight |
0.47 kg (1.04 lb) |
| Compatible accessory examples |
TR-WM06-C-IN |
Cellular planning: verify US carrier bands, SIM and data-plan compatibility, signal strength and the 12 V DC power arrangement before installation.
Choose accessories for this model. Items are sold separately; add each item you need to your cart.

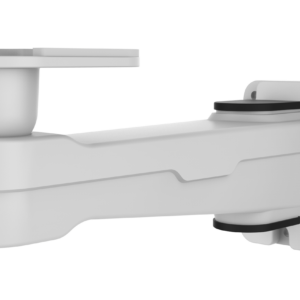

Bullet-camera wall arm
TR-WM06-C-IN
Wall-mount arm for this camera.
$38.00 Original price was: $38.00.$28.00Current price is: $28.00.
Add To Cart

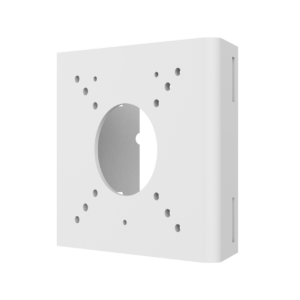

Bullet-camera pole mount
TR-UP06-B-IN
For a pole diameter of 67–127 mm (2.6–5 in).
$33.00 Original price was: $33.00.$24.00Current price is: $24.00.
Add To Cart
Downloads & Support
IPC2A14LP-ADF40KC-4G-US
Mobile App
UniEase Mobile App
View live video, review available recordings and receive supported alerts. Formerly called UNV-Link.
Desktop / CMS
EZStation Desktop Software
Uniview video management software for supported cameras and recorders. Select Windows or macOS on the official download page.
Device Updates
Firmware
Open the manufacturer page, then choose Download → Firmware for your model.
Match the exact model, hardware revision and region before updating.
Documents
Product Documents
Manufacturer documents for this model.
