UNIVIEW · TIC3612SA-F3-4F4AC-I1

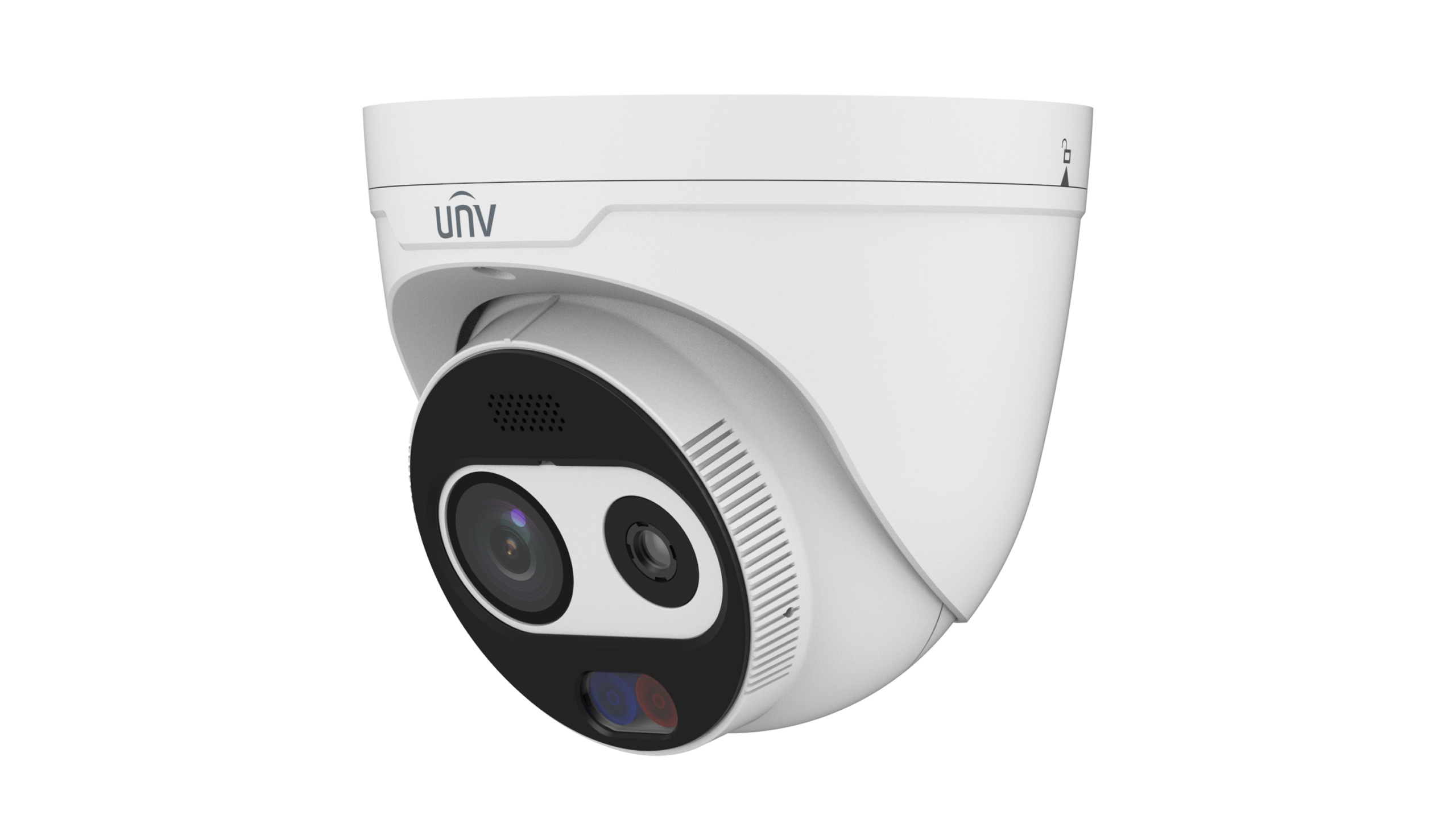

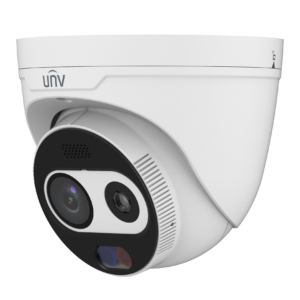

UNV TIC3612SA-F3-4F4AC-I1 Thermal and 4MP Optical Turret Camera
Combine visible video and thermal monitoring in one turret camera. The TIC3612SA-F3-4F4AC-I1 pairs a 4 MP optical channel with a native 256 × 192 thermal detector, plus temperature and fire detection functions.
Thermal + 4 MPVisible: 4mm; Thermal: 3 mmIP67Two-way audio
Product overview
View the scene alongside thermal information to investigate temperature changes and events. The two channels share one IP address, while picture-in-picture viewing and audio/light alerts support event assessment.
Two sensing channels
A 4 MP visible channel works alongside the native 256 × 192 thermal detector. Thermal video can be output at up to 960P.
Temperature monitoring
Configurable temperature ranges and hot/cold spot tracking support investigation of unusual temperatures.
Event response
Fire detection, optical smoke detection and light/audio alarms provide multiple ways to assess events.
Network installation
Both video channels share one IP address. Confirm recorder support for both channels and the required event features.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
TIC3612SA-F3-4F4AC-I1 |
| Resolution |
Visible: 4 MP; thermal sensor: 256 × 192 native |
| Image sensor |
Visible: 1/2.8″ CMOS; Thermal: Vanadium oxide uncooled focal plane arrays |
| Maximum-resolution video |
Visible: 2688 × 1520 up to 30 fps; thermal output: 1280 × 960 up to 30 fps |
| Lens |
Visible: 4mm; Thermal: 3 mm |
| Aperture |
Visible: F1.6; Thermal: F1.0 |
| Horizontal field of view |
Visible: 74.9°; Thermal: 58.0° |
| Wide dynamic range |
120 dB |
| Minimum illumination |
Colour: 0.003 lux (F1.6, AGC ON) |
| IR illumination range |
Visible: 30m |
| Video compression |
Ultra 265, H.265, H.264, MJPEG |
| Video streams |
Triple streams |
| Native thermal detector |
Thermal: 256 × 192 |
| Thermal output |
Up to 1280 × 960 (960P); native detector resolution is 256 × 192 |
| Temperature ranges |
Selectable between -20 ℃ to 150 ℃ (-4 ℉ to 302 ℉) and 100 ℃ to 550 ℃ (212 ℉ to 1022 ℉) |
| Temperature accuracy |
±8 ℃ (±14.4 ℉) or ±8% (whichever is greater) |
| Built-in microphone |
Yes |
| Built-in speaker |
Yes |
| Two-way audio |
Built-in microphone and speaker |
| Audio input / output |
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm input / output |
2/2 |
| MicroSD storage |
MicroSD, up to 512 GB |
| Network storage |
ANR |
| Ethernet |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Power input |
DC12V(±25%), PoE(IEEE802.3af) |
| Maximum power consumption |
Max 12W |
| Protection |
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| Operating environment |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Dimensions |
Φ129 x 114 mm(Φ5.08″ x 4.49″)(Φ x H) |
| Weight |
0.72kg(1.6lb) |
Installation planning: match temperature settings and alarm thresholds to the monitored objects. Confirm recorder support for the optical and thermal channels.
