UNIVIEW · IPC3224SS-ADF28K-I1

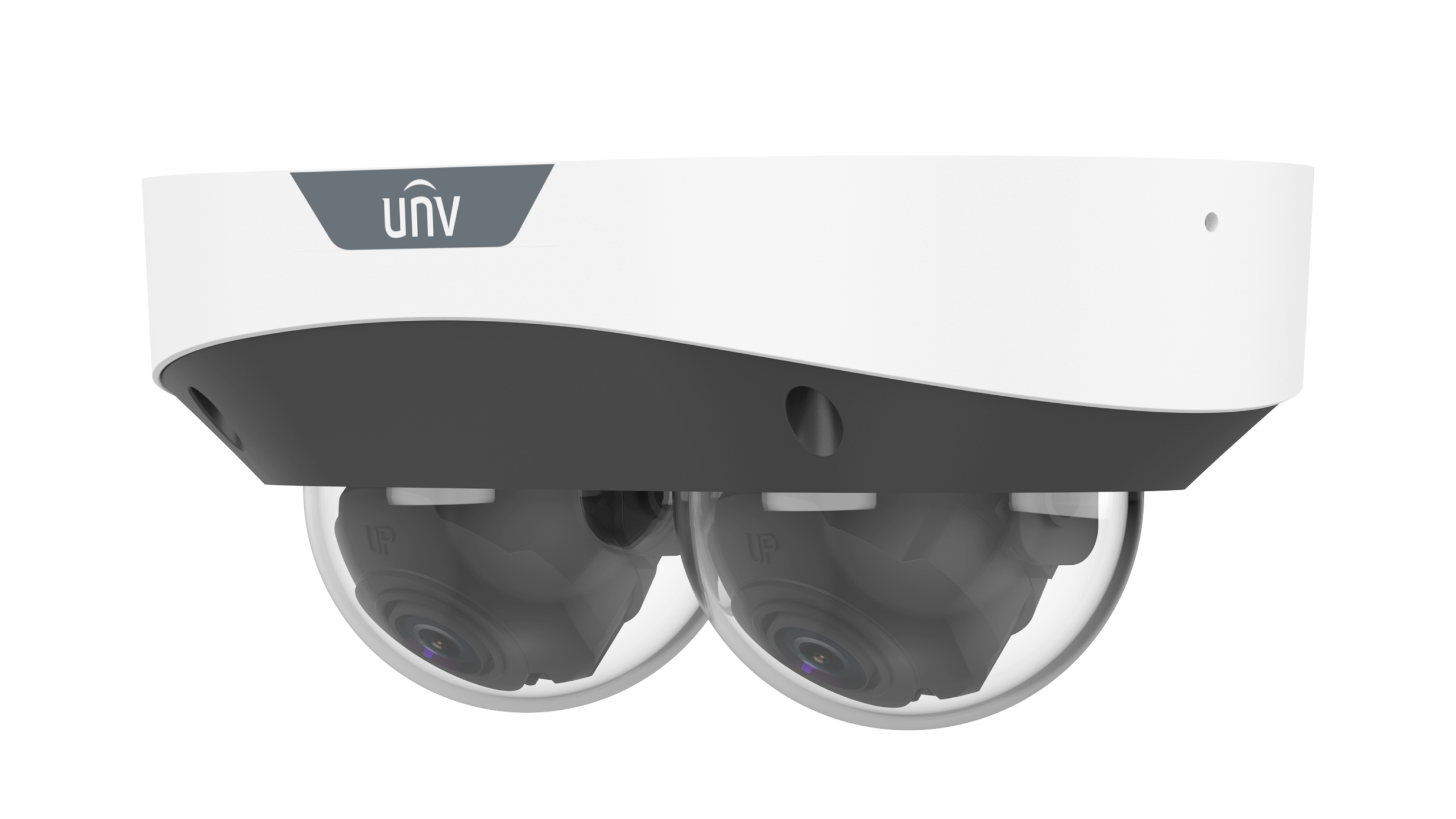

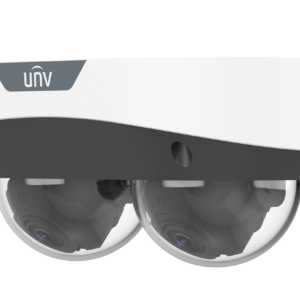

UNV IPC3224SS-ADF28K-I1 Dual 4MP MultiView Dome Camera
Cover two directions from one dome housing with two 4 MP camera channels and two 2.8 mm lenses. The IPC3224SS-ADF28K-I1 combines separate views, IR illumination and built-in dual microphones.
2 × 4 MP2 × 2.8 mmIP67Built-in mic
Product overview
Position each view around the site instead of relying on a single fixed angle. Plan the recorder channels, display layout and combined bitrate for all video channels; one network address does not determine the number of recorder channels required.
Multiple viewing directions
2 × 4 MP across separate imaging channels supports views in more than one direction.
Low-light visibility
Infrared illumination reaches up to 30 m (98.4 ft.).
Event detection
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification.
Audio and recording
The built-in microphone adds sound to the recorded scene. Local storage: MicroSD, up to 512 GB.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
IPC3224SS-ADF28K-I1 |
| Resolution |
2 × 4 MP |
| Image sensor |
1/3.0″ CMOS |
| Maximum-resolution video |
Each channel: 2688 × 1520 up to 25 fps |
| Lens |
2 × 2.8 mm |
| Aperture |
F1.6 |
| Horizontal field of view |
97.68° |
| Wide dynamic range |
130 dB |
| Minimum illumination |
Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR on |
| IR illumination range |
30 m (98.4 ft.) |
| Video compression |
Ultra 265, H.265, H.264, MJPEG |
| Video streams |
Triple streams |
| Event functions |
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification. |
| Built-in microphone |
Built-in dual-mic |
| Built-in speaker |
No |
| Two-way audio |
Via external audio equipment |
| Audio input / output |
1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm input / output |
1/1 |
| MicroSD storage |
MicroSD, up to 512 GB |
| Network storage |
ANR, NAS (NFS) |
| Ethernet |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Integration |
API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| Power input |
DC 12 V±25%, PoE (IEEE 802.3af) |
| Maximum power consumption |
Max. 9.1 W |
| Protection |
IP67 (IEC 60529); IK10 (IEC 62262) |
| Operating environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Material |
Metal |
| Dimensions |
176 mm × 104 mm × 72 mm (6.9″ × 4.1″ × 2.8″) (L × W × H) |
| Weight |
0.62 kg (1.37 lb.) |
| Channel planning |
2 video channels on one IP address |
| Compatible accessory examples |
TR-JB08 |
Recorder planning: allow for every video channel and the combined bitrate. Verify the power source, compatible mount and recorder support for this multi-sensor model.
Choose accessories for this model. Items are sold separately; add each item you need to your cart.
Pendant mount
TR-CM24-IN
For pendant installation. Check the required mounting base or junction box before ordering.
$30.00 Original price was: $30.00.$19.00Current price is: $19.00.
Add To Cart

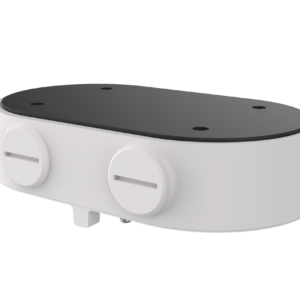

Junction box
TR-JB08
Cable-management junction box matched to this camera.
$70.00 Original price was: $70.00.$40.00Current price is: $40.00.
Add To Cart
Pole adapter for junction-box combinations
TR-UP06-C-IN-V2
A compatible junction box or wall-mount assembly is required; this adapter alone does not mount the camera.
$36.00 Original price was: $36.00.$25.00Current price is: $25.00.
Add To Cart
Downloads & Support
IPC3224SS-ADF28K-I1
Mobile App
UniEase Mobile App
View live video, review available recordings and receive supported alerts. Formerly called UNV-Link.
Desktop / CMS
EZStation Desktop Software
Uniview video management software for supported cameras and recorders. Select Windows or macOS on the official download page.
Device Updates
Firmware
Open the manufacturer page, then choose Download → Firmware for your model.
Match the exact model, hardware revision and region before updating.
Documents
Product Documents
Manufacturer documents for this model.
