Description
UNIVIEW · IPC6658SR-X25-VF

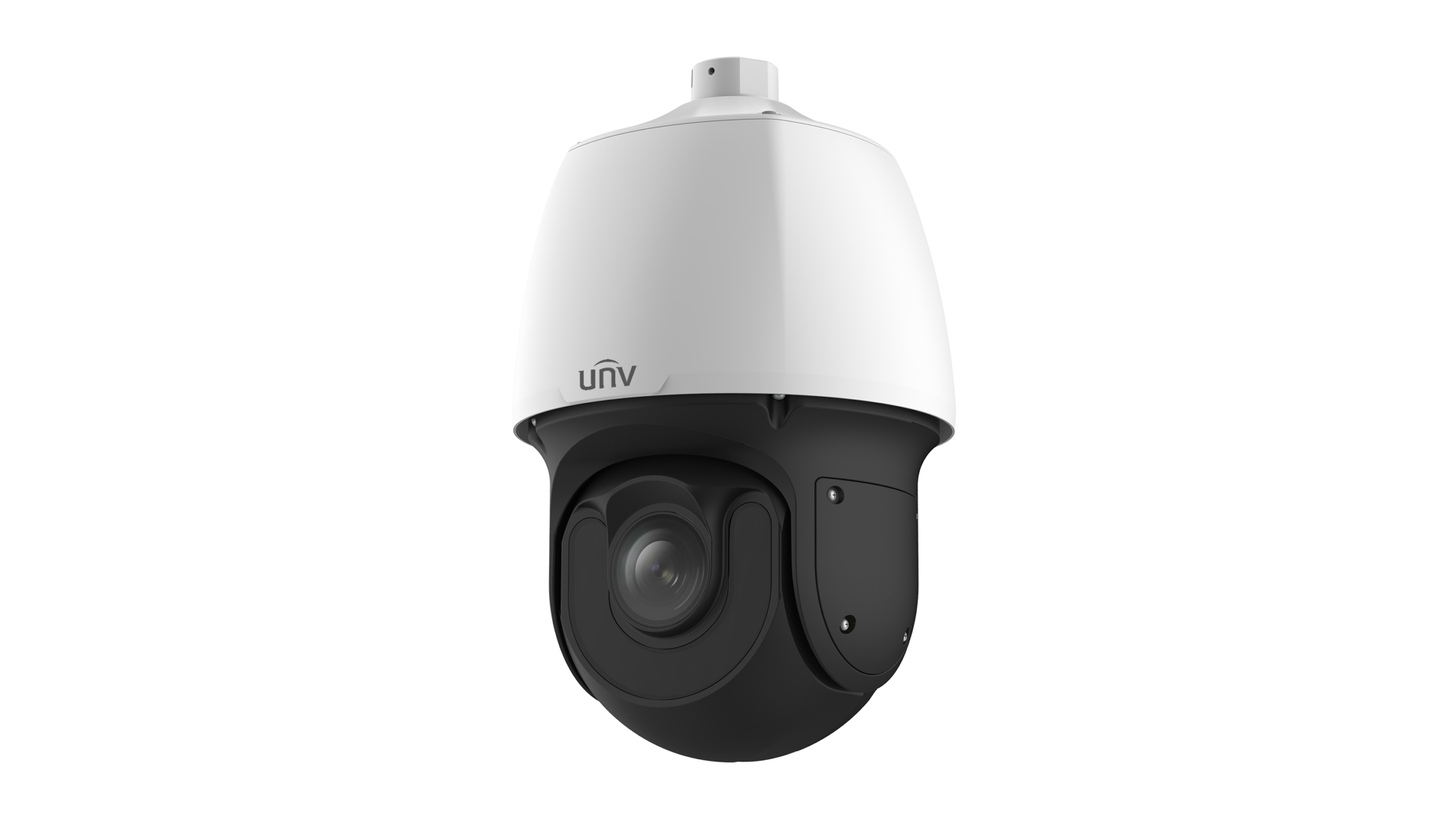

UNV IPC6658SR-X25-VF 8MP 25x LightHunter PTZ Camera
Follow activity and frame distant detail with 25× optical zoom. The IPC6658SR-X25-VF combines 8 MP imaging, a 6 to 150 mm lens and motorized pan/tilt control.
8 MP25X optical zoomIP66
Product overview
Use wide views for orientation and optical zoom for closer inspection. Presets help return to important viewpoints, while the illumination, movement range and power requirements below support planning for the intended mounting position.
Optical detail control
25X optical zoom helps frame distant areas without moving the mounting point.
Low-light visibility
Infrared illumination reaches up to 200m.
Event detection
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification.
Audio and recording
External audio input and output support compatible microphone and speaker equipment. Local storage: MicroSD, up to 512 GB.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
IPC6658SR-X25-VF |
| Resolution |
8 MP |
| Image sensor |
1/1.8″ CMOS |
| Maximum-resolution video |
8 MP (3840 × 2160), max. 30 fps |
| Lens |
6 to 150 mm |
| Aperture |
F1.5 to F3.4 |
| Horizontal field of view |
60.5° to 3.1° |
| Wide dynamic range |
DWDR |
| Minimum illumination |
Color: 0.003 Lux (F1.5, AGC ON), 0 Lux with IR |
| IR illumination range |
200m |
| Video compression |
Ultra 265, H.265, H.264, MJPEG |
| Video streams |
Triple streams |
| Event functions |
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification. |
| Optical zoom |
25X |
| Pan range |
360° (endless) |
| Tilt range |
-15° to 90° (auto reverse) |
| Presets |
1024 |
| Built-in microphone |
No |
| Built-in speaker |
No |
| Two-way audio |
Via external audio equipment |
| Audio input / output |
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm input / output |
2/1 |
| MicroSD storage |
MicroSD, up to 512 GB |
| Network storage |
ANR, NAS (NFS) |
| Ethernet |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| Power input |
AC 24 V±25%, DC 24 V±25%, PoE (PSE Required) |
| Maximum power consumption |
Max. 58 W |
| Protection |
IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| Operating environment |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Dimensions |
Ø227 mm × 384.8 mm (Ø8.9″ × 15.1″) (Ø × H) |
| Weight |
5.61 kg (12.36 lb) |
| Compatible accessory examples |
TR-WE45-IN, TR-CE45-IN, TR-JB12-IN, TR-UP08-A-IN, TR-UC08-A-IN |
Power planning: use the manufacturer-specified compatible PSE or a suitable 24 V AC/DC supply rated for the camera’s 58 W maximum.
Choose accessories for this model. Items are sold separately; add each item you need to your cart.
Long wall arm
TR-WE45-A-IN
Longer wall-mount arm for additional stand-off.
$73.00 Original price was: $73.00.$59.00Current price is: $59.00.
Add To Cart
Standard wall arm
TR-WE45-IN
Standard wall-mount arm.
$59.00 Original price was: $59.00.$40.00Current price is: $40.00.
Add To Cart
Pendant / ceiling mount
TR-CE45-IN
Pendant-mount option. Use the camera mounting adapter specified in its installation guide.
$57.00 Original price was: $57.00.$42.00Current price is: $42.00.
Add To Cart
Gooseneck mount
TR-WE45-B-IN
Gooseneck mounting arm; check the mounting surface and camera clearance.
$190.00 Original price was: $190.00.$163.00Current price is: $163.00.
Add To Cart
PTZ junction box
TR-JB12-IN
Optional cable enclosure used behind a compatible PTZ wall arm. This box does not replace the arm.
$230.00 Original price was: $230.00.$168.00Current price is: $168.00.
Add To Cart
PTZ pole adapter
TR-UP08-A-IN
Requires a compatible wall arm such as TR-WE45-IN or TR-WE45-A-IN where listed for this camera. For poles 67–127 mm (2.6–5 in) in diameter.
$50.00 Original price was: $50.00.$43.00Current price is: $43.00.
Add To Cart
PTZ corner adapter
TR-UC08-A-IN
Requires a compatible wall arm such as TR-WE45-IN or TR-WE45-A-IN where listed for this camera.
$43.00 Original price was: $43.00.$28.00Current price is: $28.00.
Add To Cart
Downloads & Support
IPC6658SR-X25-VF
Mobile App
UniEase Mobile App
View live video, review available recordings and receive supported alerts. Formerly called UNV-Link.
Desktop / CMS
EZStation Desktop Software
Uniview video management software for supported cameras and recorders. Select Windows or macOS on the official download page.
Documents
Product Documents
Manufacturer documents for this model.
