UNIVIEW · IPC3608SB-ADF16KM-I0

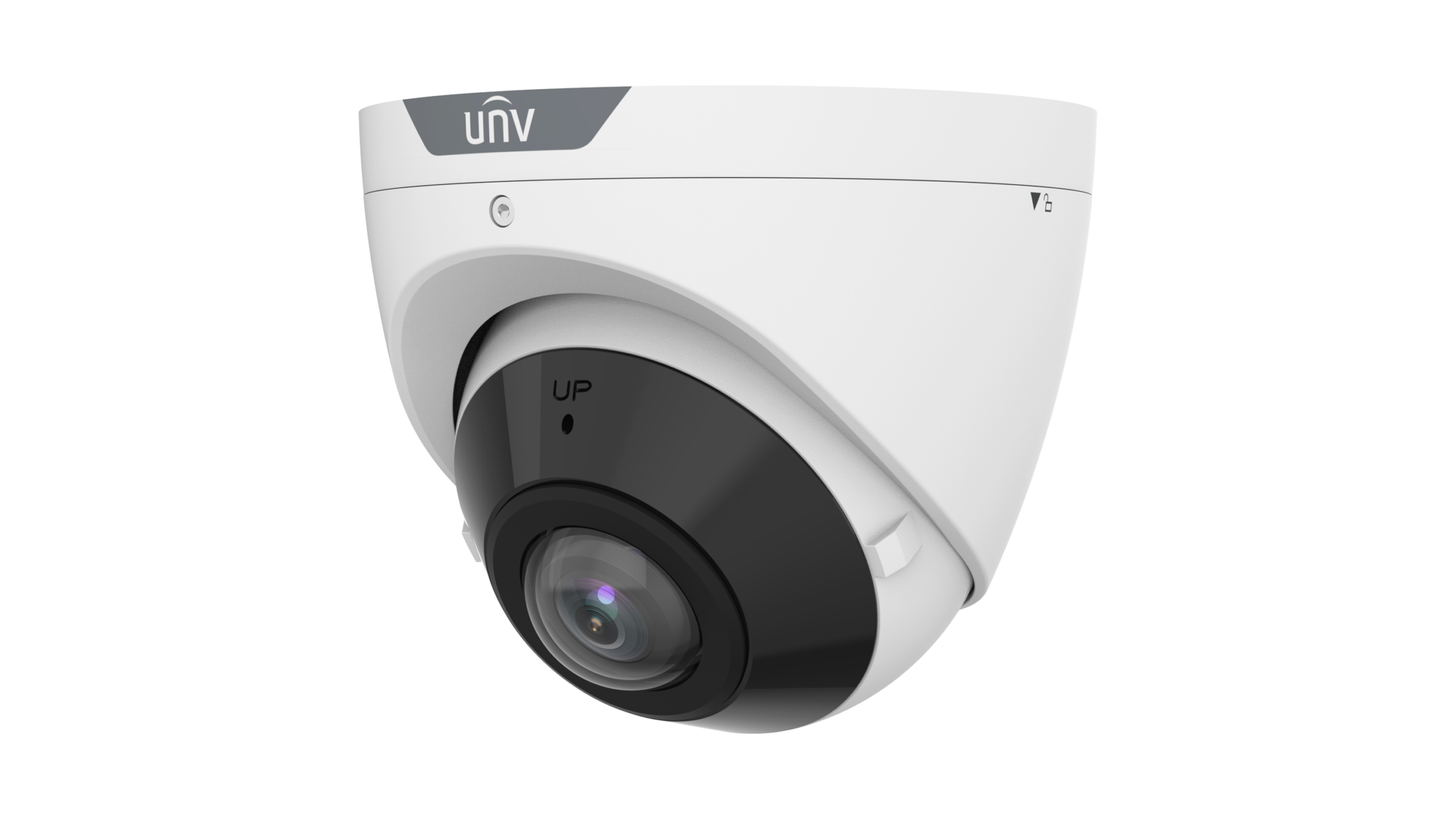

UNV IPC3608SB-ADF16KM-I0 8MP 180° Panoramic IP Turret Camera
Capture a broad scene with 8 MP imaging and a 180° horizontal view. The IPC3608SB-ADF16KM-I0 combines a 1.68 mm lens arrangement with infrared illumination.
8 MP180° viewIP67Built-in mic
Product overview
A wide field of view is useful for monitoring activity across a larger area. Choose the mounting position around the scene and the amount of subject detail needed at each distance; a wider view spreads the available pixels across more of the area.
Wide scene coverage
8 MP imaging with a 1.68 mm lens and 180° horizontal field of view.
Low-light visibility
Infrared illumination reaches up to 20 m (65.6 ft).
Event detection
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification.
Audio and recording
The built-in microphone adds sound to the recorded scene. Local storage: MicroSD, up to 512 GB.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
IPC3608SB-ADF16KM-I0 |
| Resolution |
8 MP |
| Image sensor |
1/2.7" CMOS |
| Maximum-resolution video |
8 MP (3840 × 2160), max. 30 fps |
| Lens |
1.68 mm |
| Aperture |
F2.0 |
| Horizontal field of view |
180° |
| Wide dynamic range |
120 dB |
| Minimum illumination |
Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on |
| IR illumination range |
20 m (65.6 ft) |
| Video compression |
Ultra 265, H.265, H.264, MJPEG |
| Video streams |
Triple streams |
| Event functions |
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification. |
| Built-in microphone |
Yes |
| Built-in speaker |
No |
| Audio input / output |
N/A |
| Alarm input / output |
N/A |
| MicroSD storage |
MicroSD, up to 512 GB |
| Network storage |
ANR, NAS (NFS) |
| Ethernet |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Integration |
API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| Power input |
DC 12 V±25%, PoE (IEEE 802.3af) |
| Maximum power consumption |
Max. 5.5 W |
| Protection |
IP67 (IEC 60529); IK10 (IEC 62262) |
| Operating environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Material |
Metal |
| Dimensions |
Ø111 mm × 93 mm (Ø4.4" × 3.7") (Ø × H) |
| Weight |
0.48 kg (1.06 lb) |
| Compatible accessory examples |
TR-JB03-G-IN, TR-WM03-D-IN-V2, TR-JB07/WM03-G-IN-V2 |
Installation planning: match the viewing angle and illumination range to the required detail at the subject distance. Confirm recorder compatibility and the power budget before installation.
Choose accessories for this model. Items are sold separately; add each item you need to your cart.
Wall mount with rear cable entry
TR-JB07/WM03-G-IN-V2
Wall-mount assembly with a rear cable outlet.
$90.00 Original price was: $90.00.$60.00Current price is: $60.00.
Add To Cart
Wall mount
TR-WM03-D-IN-V2
Wall-mount bracket for this camera.
$50.00 Original price was: $50.00.$36.00Current price is: $36.00.
Add To Cart
Pendant mount
TR-CM24-IN
For pendant installation. Check the required mounting base or junction box before ordering.
$30.00 Original price was: $30.00.$19.00Current price is: $19.00.
Add To Cart
Junction box
TR-JB03-G-IN
Cable-management junction box matched to this camera.
$30.00 Original price was: $30.00.$19.00Current price is: $19.00.
Add To Cart
Pole adapter for junction-box combinations
TR-UP06-C-IN-V2
A compatible junction box or wall-mount assembly is required; this adapter alone does not mount the camera.
$36.00 Original price was: $36.00.$25.00Current price is: $25.00.
Add To Cart
Downloads & Support
IPC3608SB-ADF16KM-I0
Mobile App
UniEase Mobile App
View live video, review available recordings and receive supported alerts. Formerly called UNV-Link.
Desktop / CMS
EZStation Desktop Software
Uniview video management software for supported cameras and recorders. Select Windows or macOS on the official download page.
Device Updates
Firmware
Open the manufacturer page, then choose Download → Firmware for your model.
Match the exact model, hardware revision and region before updating.
Documents
Product Documents
Manufacturer documents for this model.
