UNIVIEW · IPC8645EA-ADZKM-I1

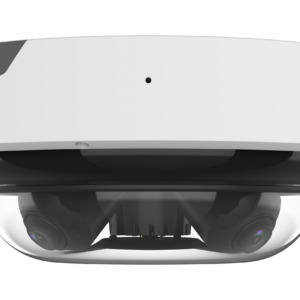

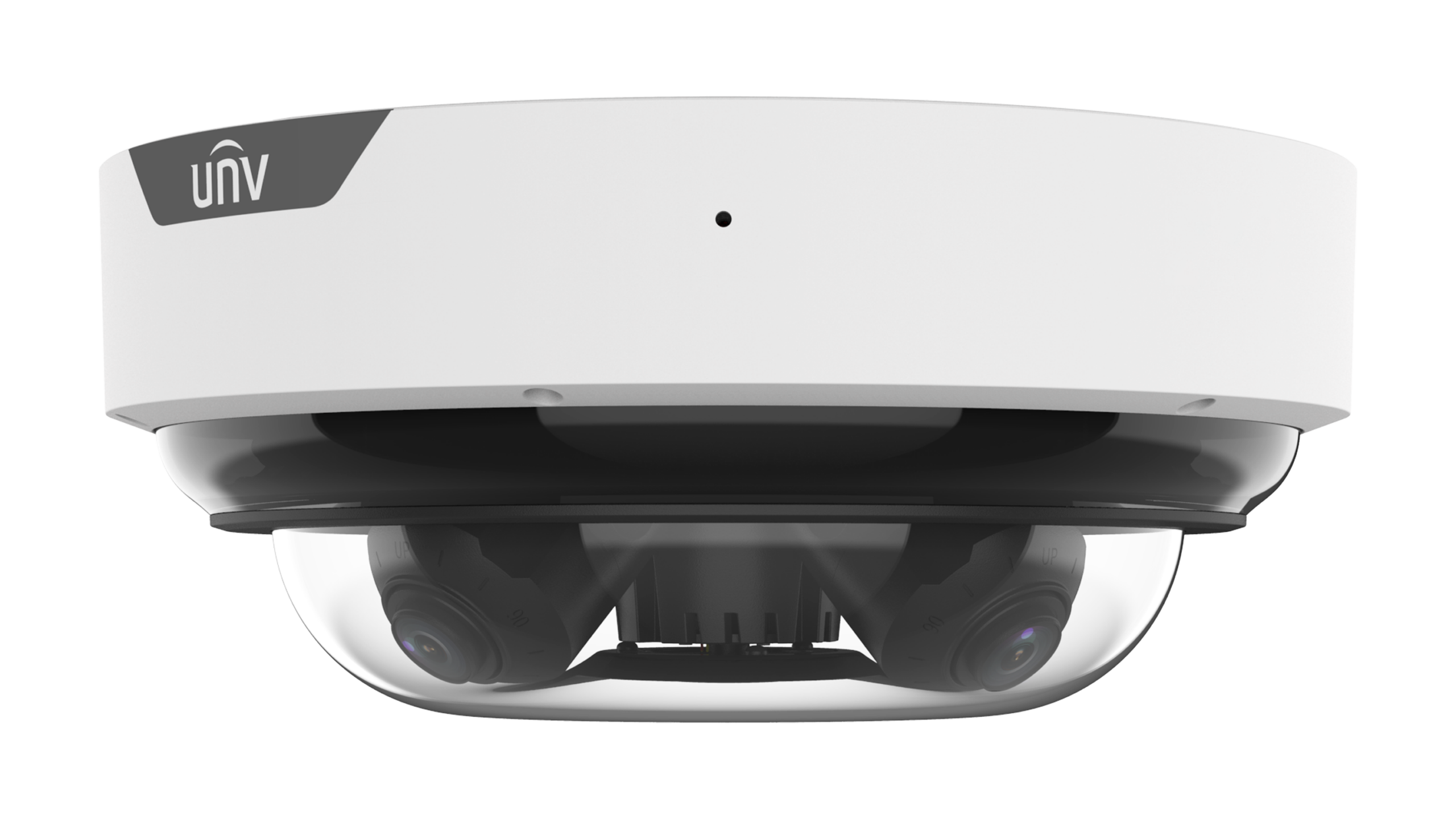

UNV IPC8645EA-ADZKM-I1 4 × 5MP MultiView Motorized Varifocal Camera
Cover multiple directions with four independently adjustable 5 MP imaging channels. The IPC8645EA-ADZKM-I1 provides four motorized 2.7–13.5 mm lenses, 50 m IR illumination and a Gigabit network connection.
4 × 5 MP4 × 2.7–13.5 mm motorized varifocalIP67Built-in mic
Product overview
Position each view around the site instead of relying on a single fixed angle. Plan the recorder channels, display layout and combined bitrate for all video channels; one network address does not determine the number of recorder channels required.
Multiple viewing directions
4 × 5 MP across separate imaging channels supports views in more than one direction.
Low-light visibility
Infrared illumination reaches up to 50 m (164.0 ft).
Event detection
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification.
Audio and recording
The built-in microphone adds sound to the recorded scene. Local storage: MicroSD, up to 512 GB.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
IPC8645EA-ADZKM-I1 |
| Resolution |
4 × 5 MP |
| Image sensor |
1/2.7″ CMOS |
| Maximum-resolution video |
4 channels; 2880 × 1620 up to 30 fps per channel |
| Lens |
4 × 2.7–13.5 mm motorized varifocal |
| Aperture |
F1.2 * 4 |
| Horizontal field of view |
(W) 110.3° to (T) 31° |
| Wide dynamic range |
130 dB |
| Minimum illumination |
Color: 0.002 Lux (F1.2, AGC ON), 0 Lux with IR on |
| IR illumination range |
50 m (164.0 ft) |
| Video compression |
Ultra 265, H.265, H.264, MJPEG |
| Video streams |
Triple streams |
| Event functions |
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification. |
| Built-in microphone |
Yes |
| Built-in speaker |
No |
| Two-way audio |
Via external audio equipment |
| Audio input / output |
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm input / output |
3/2 |
| MicroSD storage |
MicroSD, up to 512 GB |
| Network storage |
ANR, NAS (NFS) |
| Ethernet |
1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet |
| Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| Power input |
DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3bt) |
| Maximum power consumption |
Max. 31 W |
| Protection |
IP67 (IEC 60529), IK10 (IEC 62262) |
| Operating environment |
-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: 5%~95% RH |
| Material |
Metal |
| Dimensions |
Ø318 mm × 136.6 mm (Ø 12.52″ × 5.38″) (Ø × H) |
| Weight |
4.77 kg (10.52 lb） |
| Channel planning |
4 video channels on one IP address |
| Compatible accessory examples |
TR-UF45-K-IN, TR-WE45-A-IN, TR-CE45-IN |
Recorder planning: allow for every video channel and the combined bitrate. Verify the power source, compatible mount and recorder support for this multi-sensor model.
Choose accessories for this model. Items are sold separately; add each item you need to your cart.

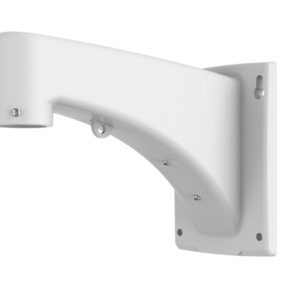

Long wall arm
TR-WE45-A-IN
Use the TR-UF45-K-IN camera adapter with this wall or pendant mount. Check whether your camera package already includes the adapter.
$73.00 Original price was: $73.00.$59.00Current price is: $59.00.
Add To Cart
Pendant / ceiling mount
TR-CE45-IN
Use the TR-UF45-K-IN camera adapter with this wall or pendant mount. Check whether your camera package already includes the adapter.
$57.00 Original price was: $57.00.$42.00Current price is: $42.00.
Add To Cart
Gooseneck mount
TR-WE45-B-IN
Use the TR-UF45-K-IN camera adapter with this wall or pendant mount. Check whether your camera package already includes the adapter.
$190.00 Original price was: $190.00.$163.00Current price is: $163.00.
Add To Cart
Multi-sensor mounting adapter
TR-UF45-K-IN
Adapter for wall or pendant installation. It must be used with the matching arm or pendant mount; verify whether your camera package already includes this adapter.
$110.00 Original price was: $110.00.$90.00Current price is: $90.00.
Add To Cart
PTZ pole adapter
TR-UP08-A-IN
For this multi-sensor camera, use a compatible long wall arm TR-WE45-A-IN and the TR-UF45-K-IN camera adapter. Confirm the complete assembly before ordering.
$50.00 Original price was: $50.00.$43.00Current price is: $43.00.
Add To Cart
PTZ corner adapter
TR-UC08-A-IN
For this multi-sensor camera, use a compatible long wall arm TR-WE45-A-IN and the TR-UF45-K-IN camera adapter. Confirm the complete assembly before ordering.
$43.00 Original price was: $43.00.$28.00Current price is: $28.00.
Add To Cart
Downloads & Support
IPC8645EA-ADZKM-I1
Mobile App
UniEase Mobile App
View live video, review available recordings and receive supported alerts. Formerly called UNV-Link.
Desktop / CMS
EZStation Desktop Software
Uniview video management software for supported cameras and recorders. Select Windows or macOS on the official download page.
Device Updates
Firmware
Open the manufacturer page, then choose Download → Firmware for your model.
Match the exact model, hardware revision and region before updating.
Documents
Product Documents
Manufacturer documents for this model.
