Lysora BE5040 Wi-Fi 7 Dual-Band Indoor Access Point

Description

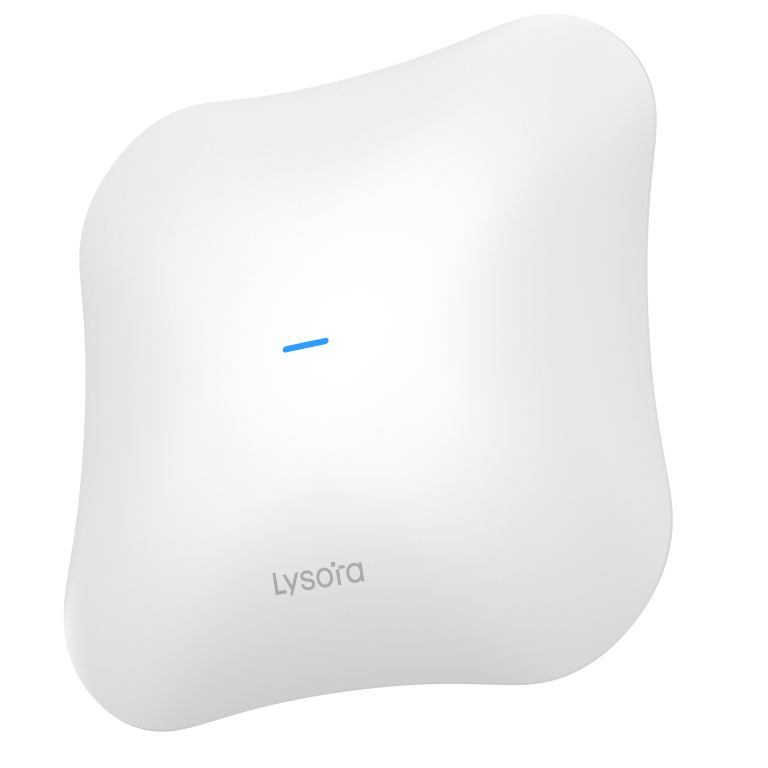

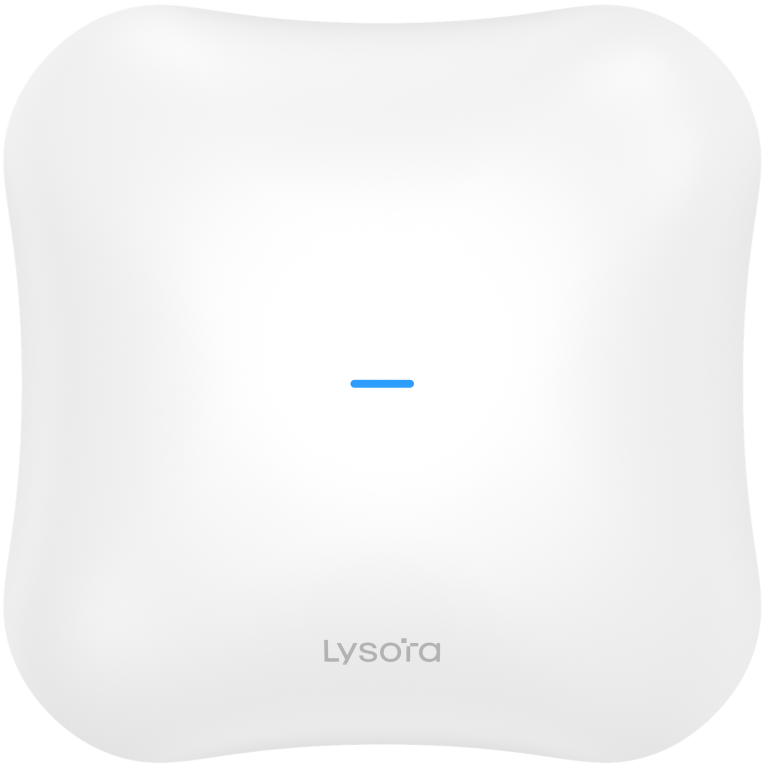

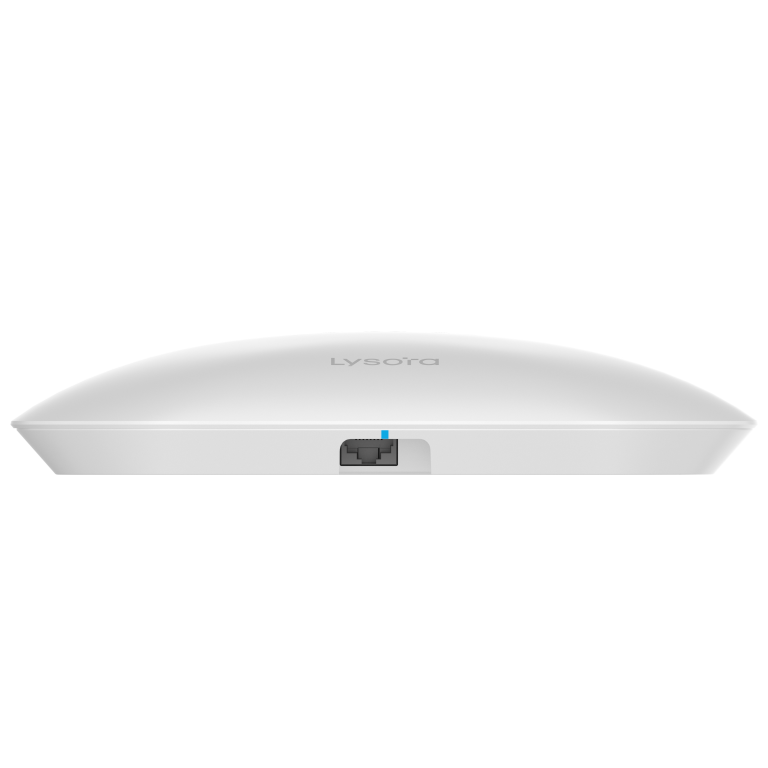

Lysora L7 BE5040 Wi-Fi 7 Dual-Band Indoor Access Point

The Lysora L7 brings BE5040-class Wi-Fi 7 to indoor business networks using 2.4 GHz and 5 GHz radios. Five spatial streams, a 2.5GbE port and a second Gigabit Ethernet port give this ceiling or wall access point flexible wired connectivity.

Key Features

• BE5040 dual-band Wi-Fi 7 on 2.4 GHz and 5 GHz
• 688 Mbps at 2.4 GHz and 4323 Mbps at 5 GHz

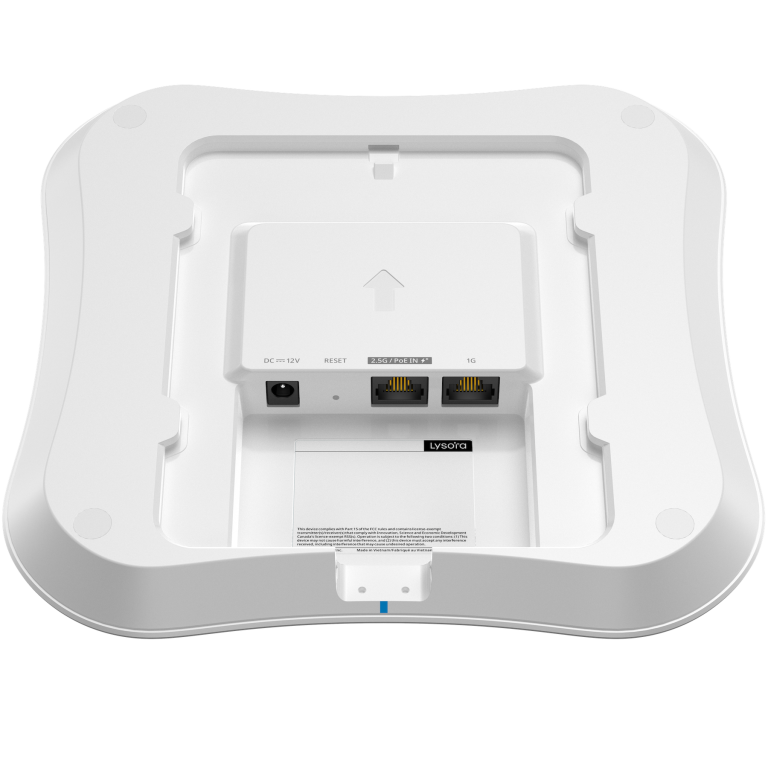

• One 2.5GbE and one Gigabit Ethernet port
• Five spatial streams: 2×2 at 2.4 GHz and 3×3 at 5 GHz
• MLO, 4K-QAM, mesh and roaming support
• Ceiling or wall mounts included

Designed For Your Network

For offices with compatible Wi-Fi 7 devices, MLO and 4K-QAM support add newer wireless capabilities. A 3×3 5 GHz radio and channels up to 160 MHz provide capacity for demanding everyday traffic.

For shared commercial spaces, VLANs and client isolation support separate network policies. Captive portal and bandwidth controls provide useful options for managed guest access.

For installers managing several access points, cloud and app management centralize routine configuration. Mesh and roaming features support expansion and client movement across a coordinated wireless network.

Installation And Power

• Indoor IP41 enclosure; operating temperature 0°C to 40°C.
• Mounts for ceiling or wall installation are included.
• Power by 802.3at PoE+ or 12 V / 2.5 A DC; PoE injector and DC adapter are purchased separately.

Management And Resources

Access supported devices through Lysora Cloud or the Lysora Cloud mobile app. Available functions depend on the model and firmware. Use the Downloads tab for verified app and document links.

View Official L7 Product Information
