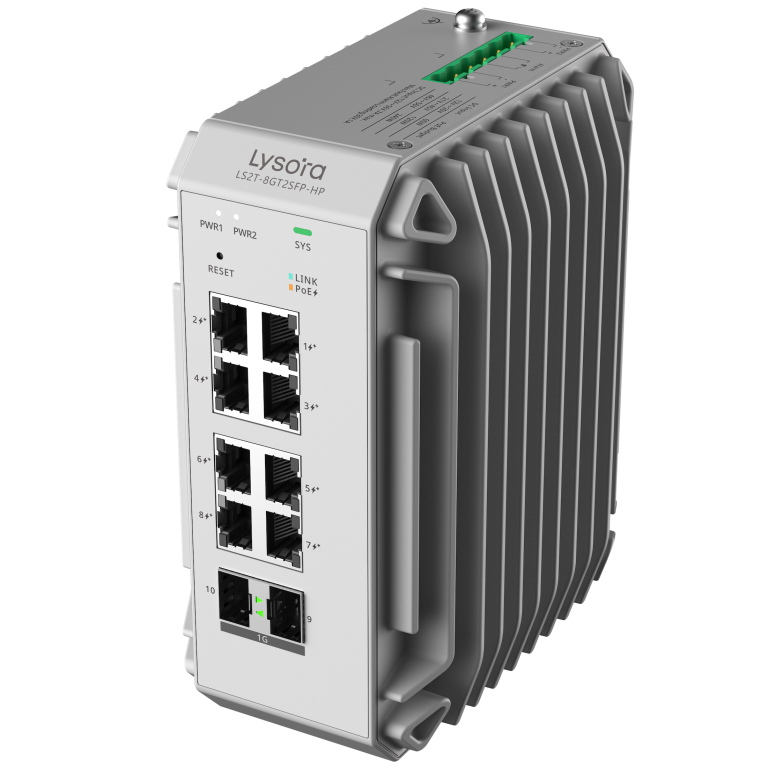

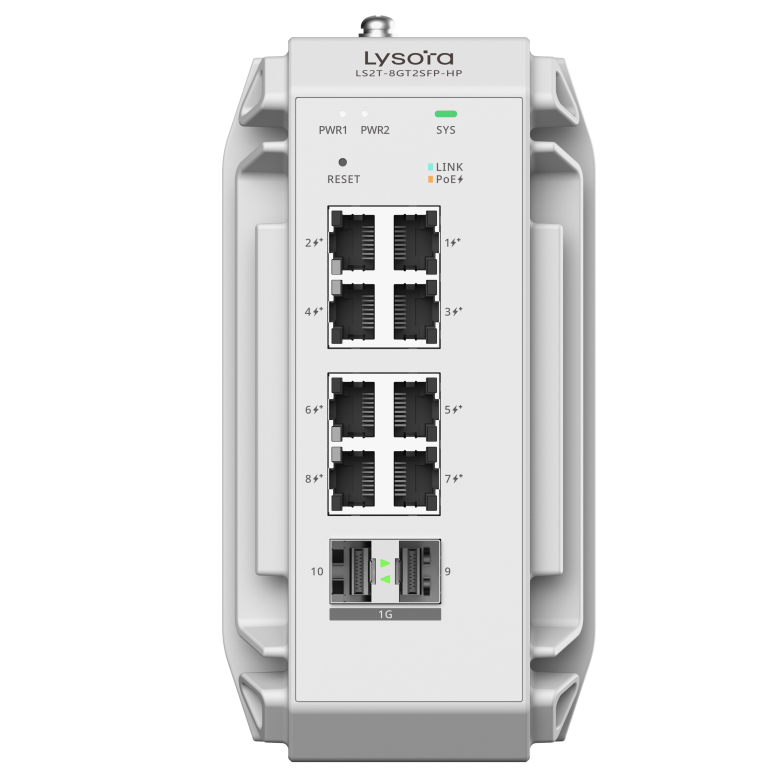

Lysora LS2T-8GT2SFP-HP Industrial Layer 2 Managed PoE Switch
Lysora LS2T-8GT2SFP-HP Industrial Layer 2 Managed PoE Switch - Image 2
Lysora LS2T-8GT2SFP-HP Industrial Layer 2 Managed PoE Switch - Image 3
Lysora LS2T-8GT2SFP-HP Industrial Layer 2 Managed PoE Switch - Image 4

LS2T-8GT2SFP-HP

Lysora Industrial Layer 2 Managed PoE Switch

Port Configuration
8 × Gigabit PoE+; 2 × 1G SFP
PoE Standard
IEEE 802.3af/at
Power Input
DC power input: Rated input voltage: 12 V DC to 56 V DC Maximum input current: 7 A

$598.00

The Lysora LS2T-8GT2SFP-HP is an industrial Layer 2 managed switch with eight Gigabit PoE/PoE+ ports and two Gigabit SFP uplinks. Its fanless IP40 metal enclosure supports DIN-rail or wall mounting, while VLANs, access controls and cloud management help administer industrial access networks.

  • 8 x Gigabit RJ45 PoE/PoE+ ports
  • 2 x Gigabit SFP uplinks
  • 240 W stated PoE budget, subject to DC power conditions
Check CompatibilitySend your equipment model and setup details, and we’ll help check compatibility.

Accessories & compatibility

Product Information
SKU: LS2T-8GT2SFP-HP Category: Tags: , , , , , , , Brand:

Description

Lysora LS2T-8GT2SFP-HP Industrial Layer 2 Managed PoE Switch

The Lysora LS2T-8GT2SFP-HP is an industrial Layer 2 managed switch with eight Gigabit PoE/PoE+ ports and two Gigabit SFP uplinks. Its fanless IP40 metal enclosure supports DIN-rail or wall mounting, while VLANs, access controls and cloud management help administer industrial access networks.

Key Features

  • 8 x Gigabit RJ45 PoE/PoE+ ports
  • 2 x Gigabit SFP uplinks
  • 240 W stated PoE budget, subject to DC power conditions
  • 20 Gbps switching capacity and 14.88 Mpps forwarding rate
  • 4094 VLANs; STP/RSTP/MSTP and LACP
  • Fanless IP40 enclosure; DIN-rail or wall mounting

Designed For Your Network

Connect powered Ethernet endpoints and provide fiber uplinks from a compact industrial switch. Eight Gigabit PoE/PoE+ outputs share a stated 240 W budget, with available power dependent on the DC input range.

Separate traffic using IEEE 802.1Q and voice VLANs. STP/RSTP/MSTP, LACP, DHCP snooping and access controls offer familiar tools for designing a controlled Layer 2 network.

Use web, cloud or app management to administer installations across sites. The switch operates from −40°C, with a maximum of +65°C in a sealed cabinet and higher limits only under Lysora’s specified ventilation conditions.

Installation And Power

  • DIN-rail or wall mounting; fanless natural cooling.
  • A suitable DC power supply is required and sold separately.
  • Full-load consumption is specified as 80 W at 12–20 V input, 140 W at 21–45 V, and 260 W at 46–56 V. Plan power delivery for the actual input range.
  • Operating temperature: −40°C to +65°C in a sealed cabinet; up to +70°C at ≥80 LFM, +75°C at ≥200 LFM, or +80°C at ≥400 LFM ventilation, under the official stated conditions.
  • IP40 enclosure; install in a suitable protected location.

Management And Resources

Access supported devices through Lysora Cloud or the Lysora Cloud mobile app. Available functions depend on the model and firmware. Use the Downloads tab for verified app and document links.

View Official LS2T-8GT2SFP-HP Product Information

Additional information

Weight 4.5 lbs
Dimensions 3.4 × 5.2 × 6.5 in
Brand

Lysora
Model

LS2T-8GT2SFP-HP
Product Type

Industrial PoE Switch
Port Configuration

8 × Gigabit PoE+; 2 × 1G SFP
PoE Power Budget

Up To 240 W; Available Power Depends On DC Input Voltage
PoE Standard

IEEE 802.3af/at
Power Input

DC power input: Rated input voltage: 12 V DC to 56 V DC Maximum input current: 7 A
Mounting

DIN rail/Wall

PLAN YOUR INSTALLATION

Accessories

Help me choose

Need help choosing an accessory for this product? Ask us to confirm compatibility before ordering.

Ask about compatible accessories

Downloads & Support

LS2T-8GT2SFP-HP

Use the exact model, hardware revision and region when selecting firmware or documents. The official Download Center may require sign-in; no individual firmware file is supplied here.

Need Help With This Product?

Technical Specifications

BrandLysora
ModelLS2T-8GT2SFP-HP
Dimensions85 mm x 132 mm x 165 mm (3.35 in. x 5.2 in. x 6.5 in.)
Weight1.91 kg (4.21 lbs) (with packaging materials) 1.42 kg (3.13 lbs) (without packaging materials)
Total Number Of RJ45 Ports8
Total Number Of Optical Ports2
Number Of 1GE SFP Ports2
Number Of 10/100/1000BASE-T Ports8
Number Of PoE/PoE+ Out Ports8
PoE Budget240 W
Enclosure MaterialMetal
MountingDIN rail/Wall
Warranty3 years
Switching Capacity20 Gbps(bit/s)
Forwarding Rate14.88 Mpps
Power MethodDC power input: Rated input voltage: 12 V DC to 56 V DC Maximum input current: 7 A
Power Supply● DC power adapter ● Power module (Not included / Sold separately)
Max. Power Consumption20 W (with no PoE load) 80 W (full-load power when the input power is 12 V to 20 V) 140 W (full-load power when the input power is 21 V to 45 V) 260 W (full-load power when the input power is 46 V to 56 V)
IP RatingIP40
Operating Temperature-40ºC to +65ºC (-40°F to 149°F) (installed in a sealed cabinet) -40ºC to +70ºC (-40°F to 158°F) (installed in a fume hood with a ventilation speed of at least 80LFM (Line Feet Minute)) -40ºC to +75ºC (-40°F to 167°F) (installed in a fume hood with a ventilation speed of at least 200LFM (Line Feet Minute)) -40ºC to +80ºC (-40°F to 176°F) (installed in a fume hood with a ventilation speed of at least 400LFM (Line Feet Minute))
Operating Humidity5% RH to 95% RH (non-condensing)
FanFanless design
CoolingNatural cooling
Maximum Number Of VLANs4094
Maximum Number Of MAC Address Entries8000
IPv4 Static RouteNo
IPv6 Static RouteNo
OSPFv2No
OSPFv3No
Web ManagementYes
Cloud ManagementYes
App ManagementYes
PoE WatchdogNo
