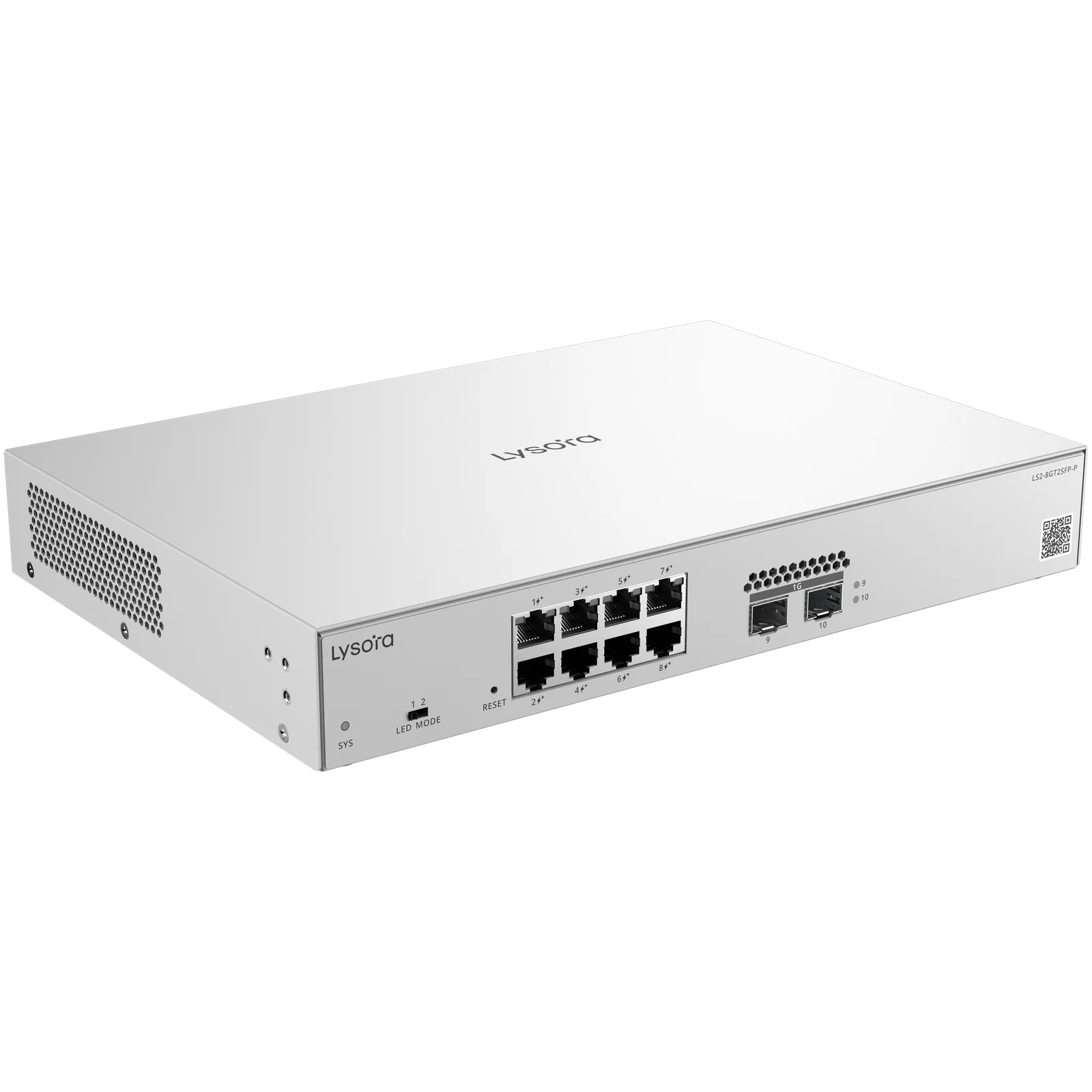

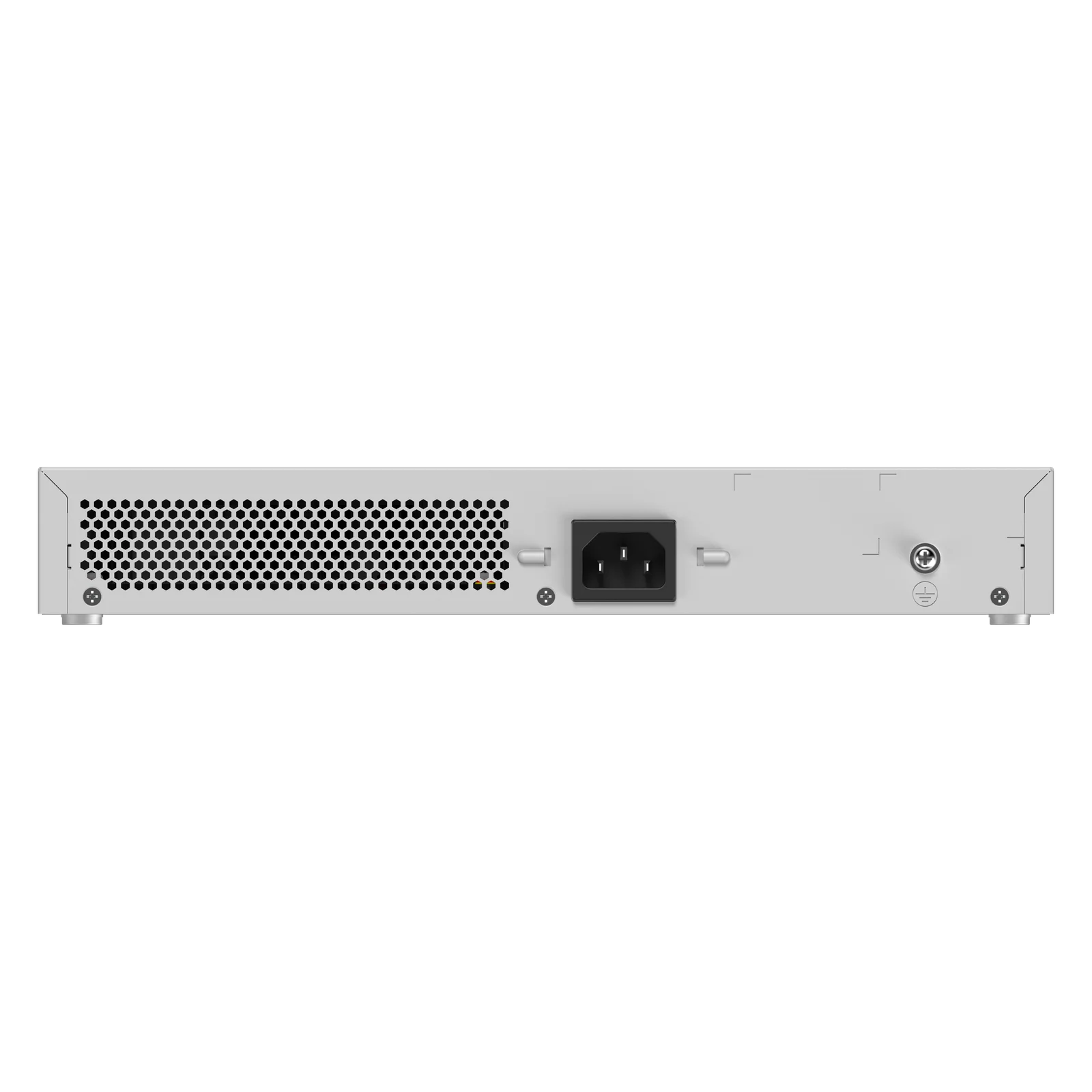

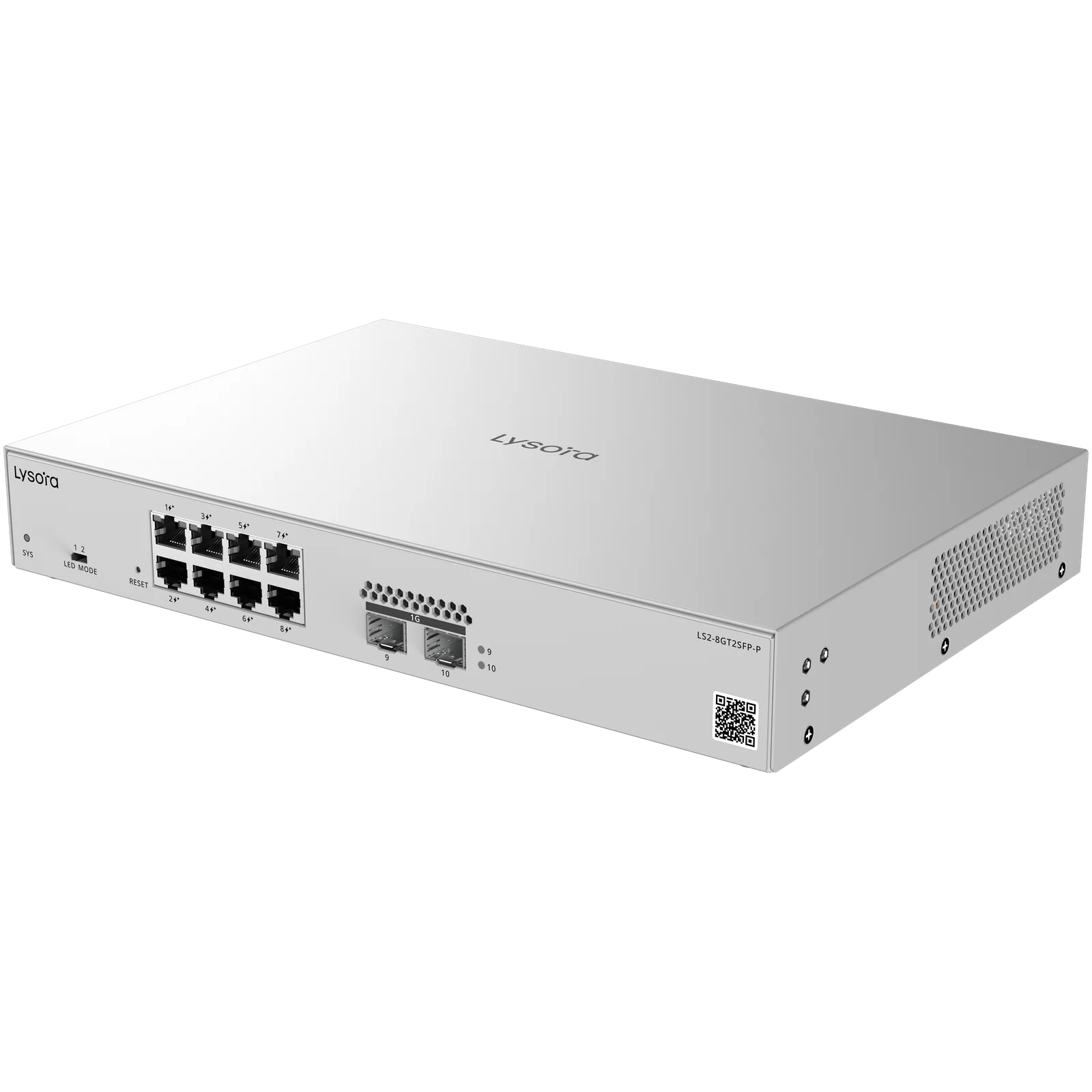

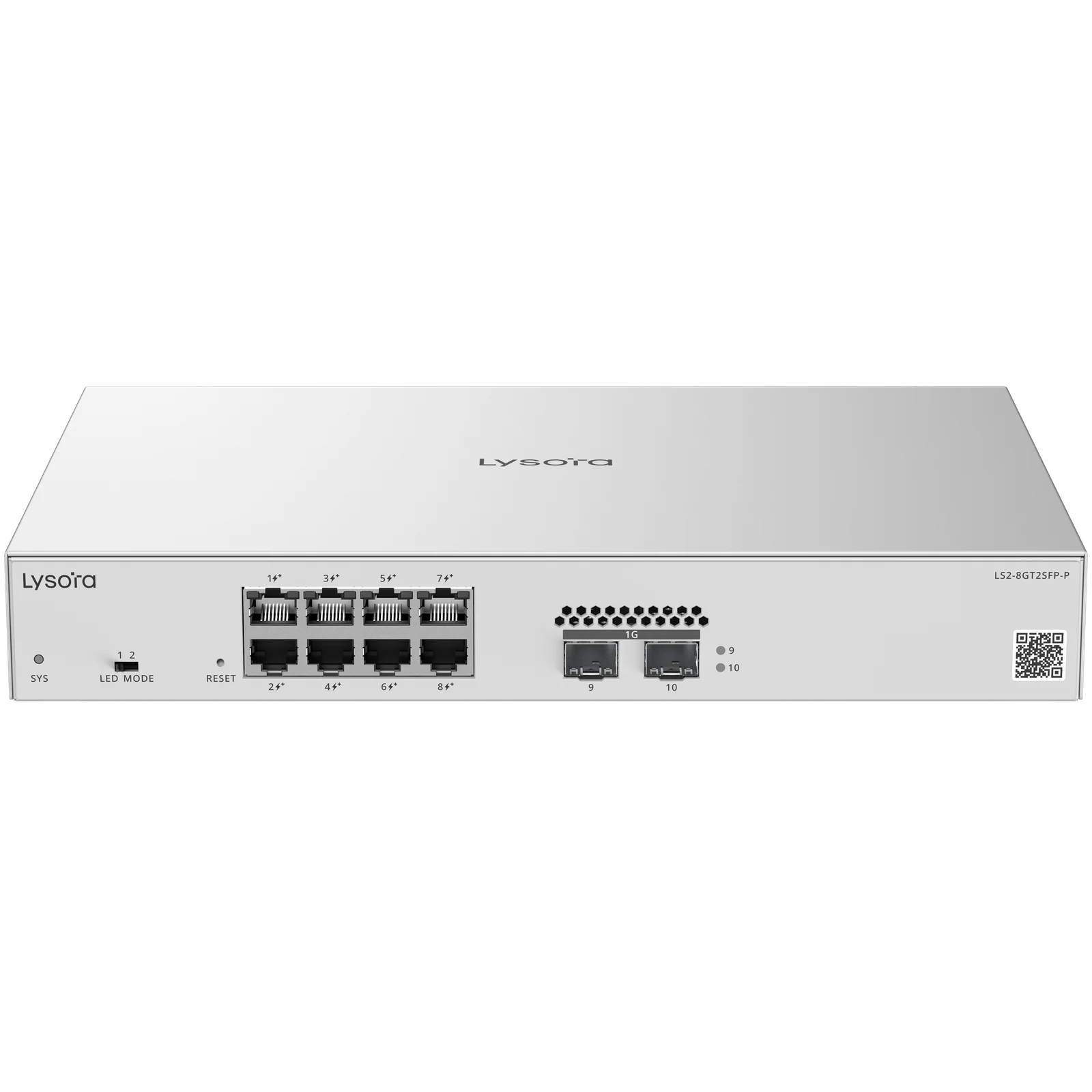

Lysora LS2-8GT2SFP-P 8-Port Gigabit Managed PoE+ Switch
Lysora LS2-8GT2SFP-P 8-Port Gigabit Managed PoE+ Switch - Image 2
Lysora LS2-8GT2SFP-P 8-Port Gigabit Managed PoE+ Switch - Image 3
Lysora LS2-8GT2SFP-P 8-Port Gigabit Managed PoE+ Switch - Image 4

LS2-8GT2SFP-P

Lysora 8-Port Gigabit Managed PoE+ Switch

Port Configuration
8 × Gigabit PoE+; 2 × 1G SFP
PoE Standard
IEEE 802.3af/at
Mounting
Rack or desk

$318.00

The Lysora LS2-8GT2SFP-P is a Layer 2 managed switch with eight Gigabit PoE/PoE+ access ports, two 1G SFP uplinks and a 125 W shared power budget. It combines fanless cooling with VLAN, link aggregation and access control features, making it a practical access switch for smaller office, hospitality and surveillance installations.

  • 8 x 10/100/1000BASE-T PoE/PoE+ ports; 2 x 1G SFP uplinks
  • 125 W shared PoE budget
  • Web, cloud and app management

Out of stock

Check CompatibilitySend your equipment model and setup details, and we’ll help check compatibility.

Accessories & compatibility

Product Information
SKU: LS2-8GT2SFP-P Category: Tags: , , , , , , , Brand:

Description

Lysora LS2-8GT2SFP-P 8-Port Gigabit Managed PoE+ Switch

The Lysora LS2-8GT2SFP-P is a Layer 2 managed switch with eight Gigabit PoE/PoE+ access ports, two 1G SFP uplinks and a 125 W shared power budget. It combines fanless cooling with VLAN, link aggregation and access control features, making it a practical access switch for smaller office, hospitality and surveillance installations.

Key Features

  • 8 x 10/100/1000BASE-T PoE/PoE+ ports; 2 x 1G SFP uplinks
  • 125 W shared PoE budget
  • Web, cloud and app management
  • PoE watchdog and camera detection
  • Fanless design
  • IEEE 802.1Q and voice VLAN support

Designed For Your Network

Connect compatible cameras, access points and IP phones through the eight powered ports. Dedicated SFP uplinks provide a fiber connection option to the rest of the network while retaining the RJ45 ports for local devices.

Use 802.1Q VLANs and voice VLAN support to organize traffic, and LACP to aggregate suitable links. STP, RSTP, MSTP and ERPS provide options for designing resilient Layer 2 topologies.

Web, cloud and app management cover local and remote administration, while SNMP, Syslog, cable testing and port mirroring support troubleshooting. The fanless metal chassis supports rack or desk placement and an operating temperature of 0°C to 50°C.

Installation And Power

  • Installation: rack or desk; operate within 0°C to +50°C (32°F to 122°F).
  • Plan connected PoE devices within the shared 125 W budget.

Management And Resources

Access supported devices through Lysora Cloud or the Lysora Cloud mobile app. Available functions depend on the model and firmware. Use the Downloads tab for verified app and document links.

View Official LS2-8GT2SFP-P Product Information

Additional information

Brand

Lysora
Model

LS2-8GT2SFP-P
Product Type

Managed PoE Switch
Port Configuration

8 × Gigabit PoE+; 2 × 1G SFP
PoE Power Budget

125 W shared
PoE Standard

IEEE 802.3af/at
Mounting

Rack or desk

PLAN YOUR INSTALLATION

Accessories

Help me choose

Need help choosing an accessory for this product? Ask us to confirm compatibility before ordering.

Ask about compatible accessories

Downloads & Support

LS2-8GT2SFP-P

The linked datasheet is in Japanese. Confirm the U.S. model and regional specifications before purchase. Use the exact model, hardware revision and region when selecting firmware or documents. The official Download Center may require sign-in; no individual firmware file is supplied here.

Need Help With This Product?

Technical Specifications

BrandLysora
ModelLS2-8GT2SFP-P
Ethernet And Uplink Ports8 x 10/100/1000BASE-T PoE/PoE+ ports; 2 x 1G SFP uplinks
PoE Budget125 W shared
PoE Power Pins1–2 (+), 3–6 (-)
Switching Capacity20 Gbps (bit/s)
Forwarding Rate14.88 Mpps
Buffer Size4.1 Mbit
CPUSingle-core processor, 500 MHz clock frequency
RAM512 MB
Flash Memory16 MB
Maximum Number Of VLANs4094
Maximum Number Of MAC Address Entries8000
Jumbo Frame Length (MTU)9216 bytes (global configuration mode)
ManagementWeb, cloud and app management
Layer 2 FeaturesIEEE 802.1Q VLAN, voice VLAN, STP/RSTP/MSTP, LLDP/LLDP-MED, static aggregation and LACP
Multicast And QoSIGMPv1/v2 and basic IGMPv3 snooping; 802.1p and DSCP classification; SP, WRR and SP+WRR queue scheduling
Security802.1X, ACLs, port isolation, DHCP snooping, IP-MAC-port binding, ARP anti-spoofing, IP source guard and storm control
Monitoring And MaintenanceSNMPv1/v2c/v3, Syslog, NTP, mirroring, cable test, camera detection, PoE watchdog, local and online upgrade
Power InputAC power supply: ● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 2.5 A
Maximum Power Consumption11 W (with no PoE load) 145 W (with full PoE load)
Operating Temperature0°C to +50°C (32°F to 122°F)
Storage Temperature–40°C to +70°C (–40°F to +158°F)
Operating Humidity10% RH to 90% RH (non-condensing)
Surge ProtectionService port: ±6 kV for common mode Power connector: ±6 kV for both common mode and differential mode
ESD ProtectionContact discharge: 6 kV Air discharge: 8 kV
CoolingFanless design; Natural cooling
Dimensions300 mm x 205 mm x 44 mm (11.81 in. x 8.07 in. x 1.73 in.)
Net Weight1.80 kg (3.97 lb)
MountingRack or desk
EnclosureMetal
Warranty3 years
Pack Quantity1 switch
