Lysora BE3600 Wi-Fi 7 Wall-Plate Access Point

Description

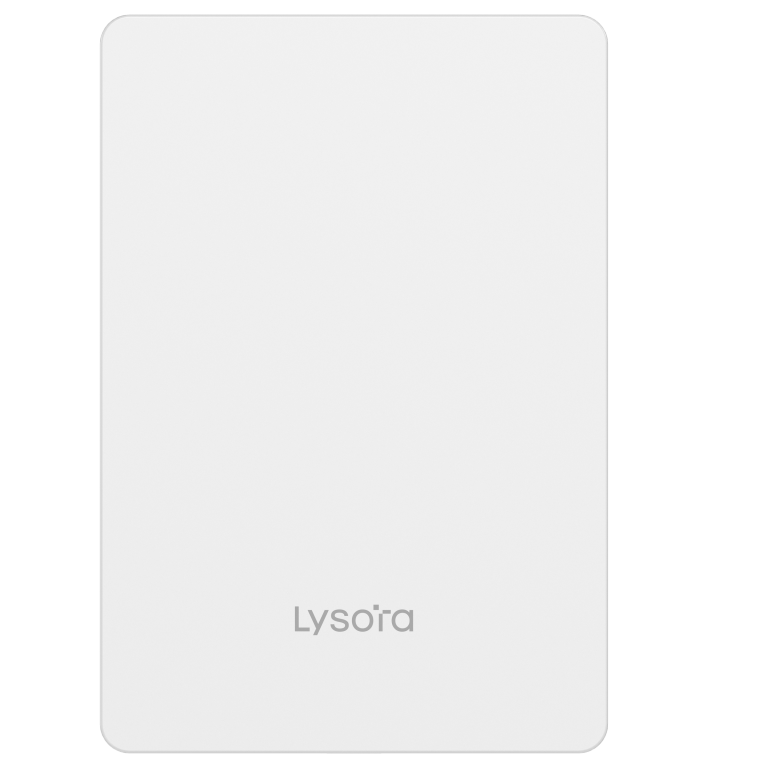

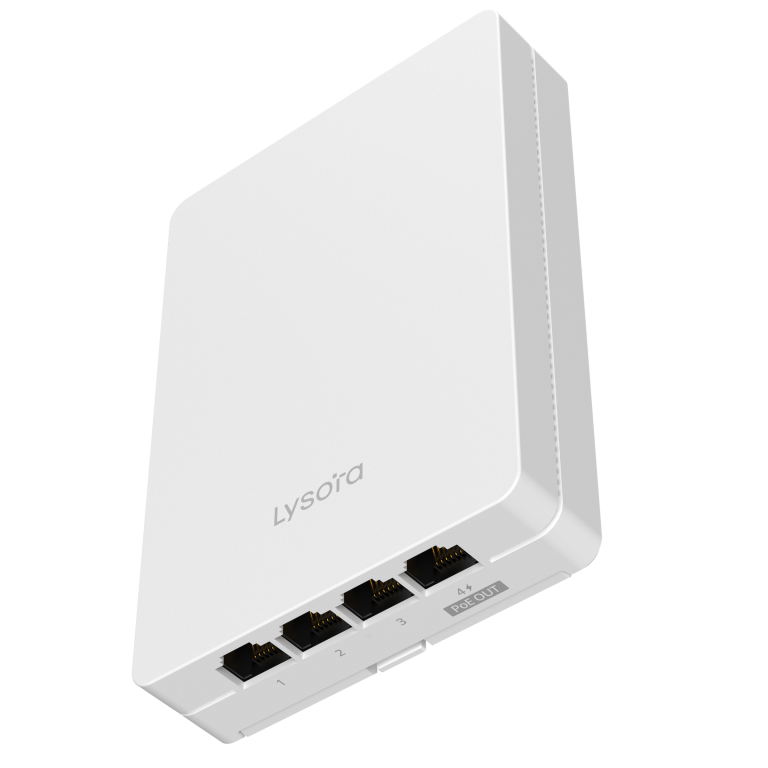

Lysora L7-W BE3600 Wi-Fi 7 Wall-Plate Access Point

The Lysora L7-W combines BE3600 dual-band Wi-Fi 7 and wired room connectivity in a compact wall-plate access point. A 2.5GbE WAN port connects to the network, while four Gigabit LAN ports serve local devices, including one port with PoE output.

Key Features

• BE3600 dual-band Wi-Fi 7 with four spatial streams
• 688 Mbps at 2.4 GHz and 2882 Mbps at 5 GHz

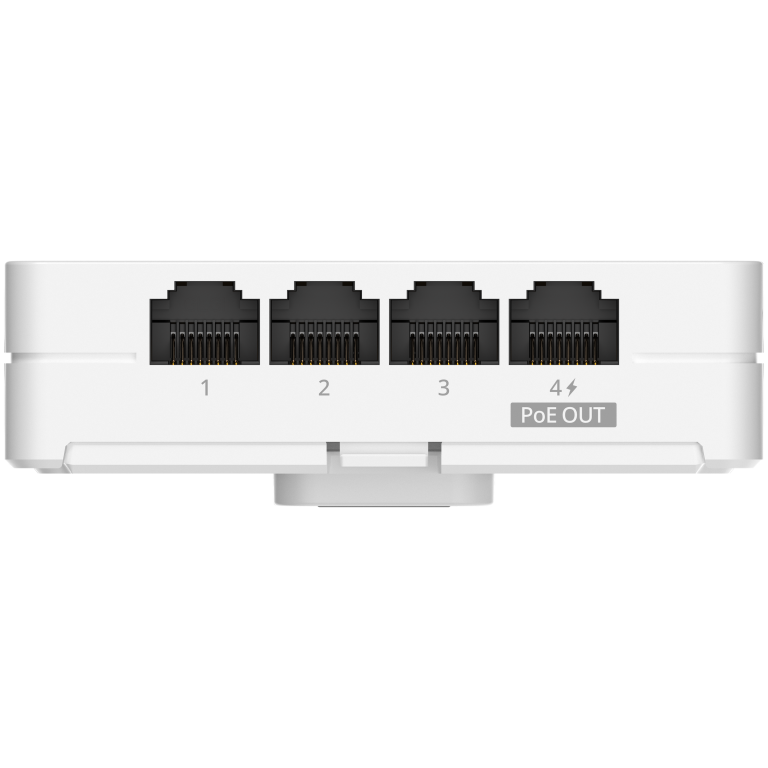

• One 2.5GbE WAN and four Gigabit LAN ports
• One LAN port supports 802.3af PoE output
• MLO, 4K-QAM and channels up to 160 MHz on 5 GHz
• Wall mounting with mounts included

Designed For Your Network

For hotel rooms and private offices, the wall-mounted format puts wireless access close to users. Local Gigabit ports give televisions, desktop computers and other wired devices their own connection points.

For rooms with a compatible powered endpoint, the PoE-output LAN port adds an option for carrying data and power together. Plan the incoming PoE supply around the access point and any downstream power requirement.

For managed guest spaces, MLO-capable Wi-Fi 7 sits alongside VLANs, client isolation and captive portal support. Lysora Cloud and app management help maintain consistent room settings across the property.

Installation And Power

• Indoor IP41 enclosure; operating temperature 0°C to 40°C.
• Wall mounting hardware is included.

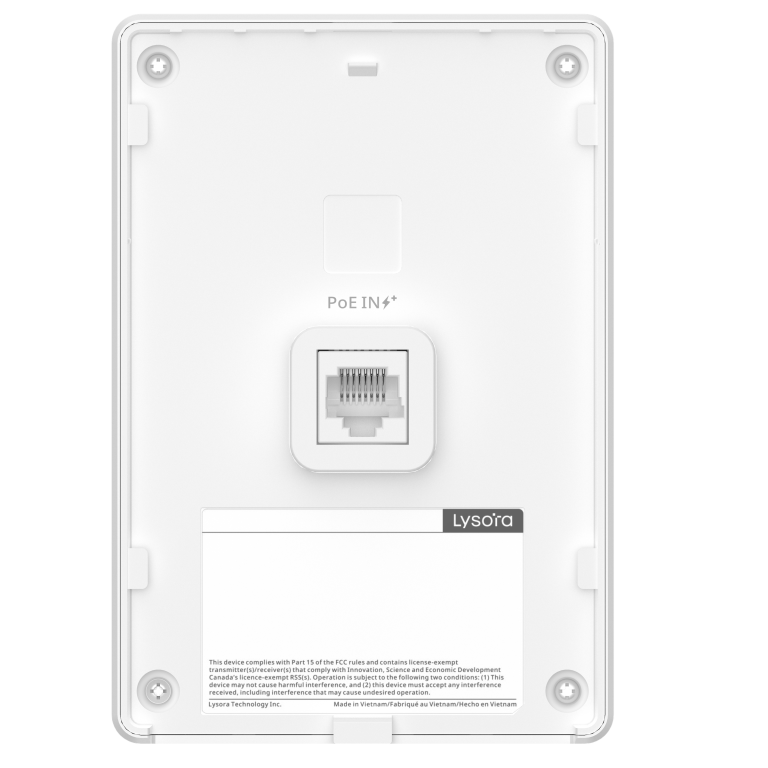

• PoE+ input; power consumption is up to 15 W excluding PoE output.

Management And Resources

Access supported devices through Lysora Cloud or the Lysora Cloud mobile app. Available functions depend on the model and firmware. Use the Downloads tab for verified app and document links.

View Official L7-W Product Information
