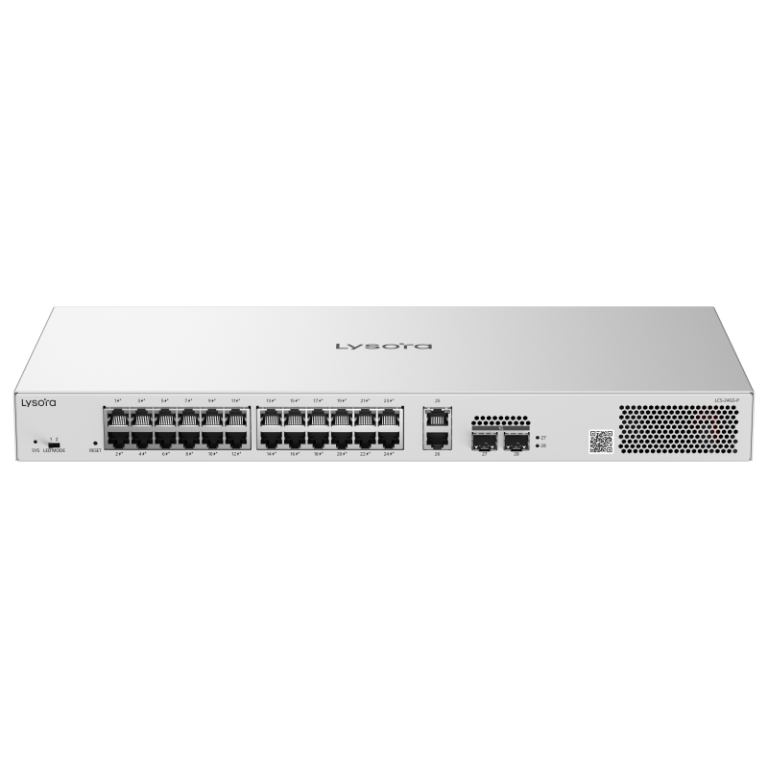

Lysora LCS-24GS-P 24-Port Gigabit Smart PoE+ Switch

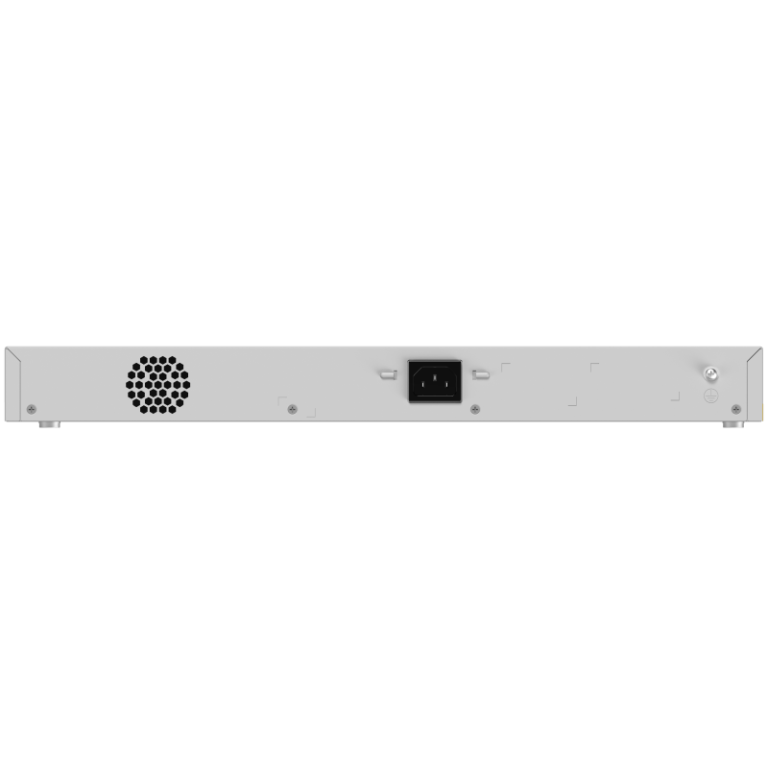

Lysora LCS-24GS-P 24-Port Gigabit Smart PoE+ Switch - Image 2

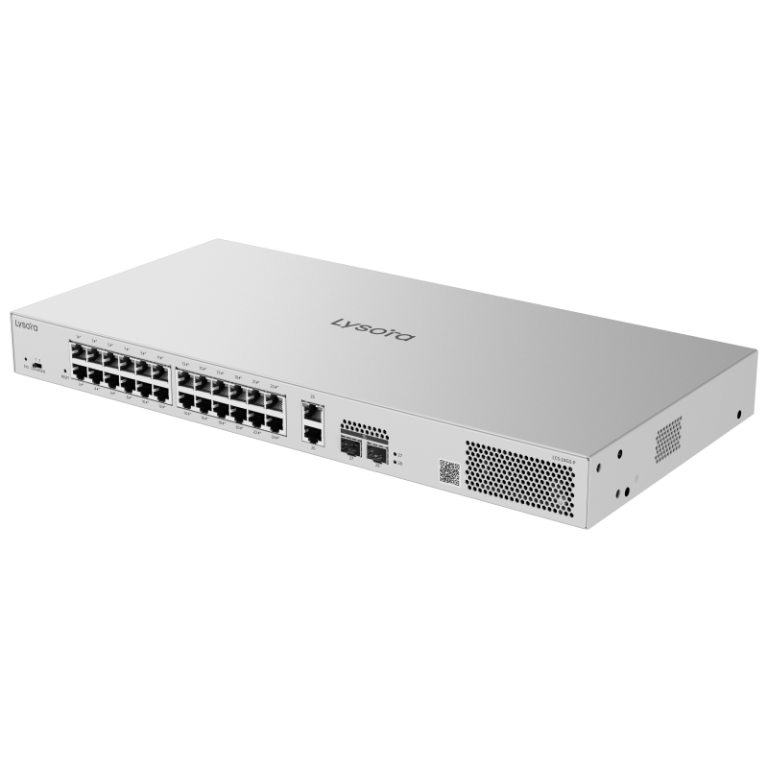

Lysora LCS-24GS-P 24-Port Gigabit Smart PoE+ Switch - Image 3

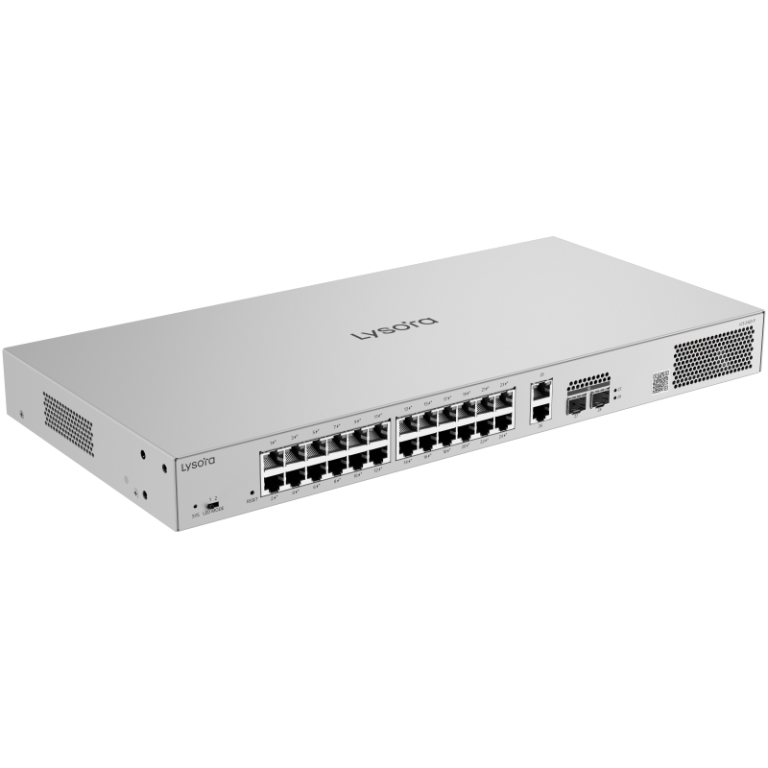

Lysora LCS-24GS-P 24-Port Gigabit Smart PoE+ Switch - Image 4

LCS-24GS-P

Lysora 24-Port Gigabit Smart PoE+ Switch

Port Configuration
24 × Gigabit PoE+; 2 × Gigabit RJ45 Uplinks; 2 × 1G SFP
PoE Standard
IEEE 802.3af/at
Mounting
Rack or desk (datasheet)

$458.00

The Lysora LCS-24GS-P provides 24 Gigabit PoE/PoE+ access ports and a 370 W shared PoE budget for a centralized business or surveillance installation. Two additional Gigabit RJ45 ports and two 1G SFP ports separate uplink connections from the powered access ports. Web, cloud and app management support both local setup and ongoing administration.

  • 24 x 10/100/1000BASE-T PoE/PoE+ ports; 2 x Gigabit RJ45 uplinks; 2 x 1G SFP uplinks
  • 370 W shared PoE budget
  • Web, cloud and app management
Check CompatibilitySend your equipment model and setup details, and we’ll help check compatibility.

Accessories & compatibility

Product Information
SKU: LCS-24GS-P Category: Tags: , , , , , , Brand:

Description

Lysora LCS-24GS-P 24-Port Gigabit Smart PoE+ Switch

The Lysora LCS-24GS-P provides 24 Gigabit PoE/PoE+ access ports and a 370 W shared PoE budget for a centralized business or surveillance installation. Two additional Gigabit RJ45 ports and two 1G SFP ports separate uplink connections from the powered access ports. Web, cloud and app management support both local setup and ongoing administration.

Key Features

  • 24 x 10/100/1000BASE-T PoE/PoE+ ports; 2 x Gigabit RJ45 uplinks; 2 x 1G SFP uplinks
  • 370 W shared PoE budget
  • Web, cloud and app management
  • PoE watchdog and camera detection
  • 1 x fixed fan
  • IEEE 802.1Q VLAN support

Designed For Your Network

For a larger camera deployment, the switch brings power and data connections into one managed chassis. Camera detection and a PoE watchdog assist with connected-device management, while the separate uplinks leave all 24 PoE ports available for endpoints.

For offices and retail sites, VLAN configuration, DHCP snooping and port isolation help organize the wired network. A 56 Gbps switching capacity and 8,000 MAC address entries provide concrete planning specifications for the access layer.

The metal enclosure supports rack or desk installation according to the official datasheet and includes rack brackets in the published package list. Its front-to-rear fan cooling and 0°C to 40°C operating range should be considered when placing it in an equipment cabinet.

Installation And Power

  • Installation: rack or desk; operate within 0°C to 40°C (32°F to 104°F).
  • Plan connected PoE devices within the shared 370 W budget.

Management And Resources

Access supported devices through Lysora Cloud or the Lysora Cloud mobile app. Available functions depend on the model and firmware. Use the Downloads tab for verified app and document links.

View Official LCS-24GS-P Product Information

Additional information

Weight 6.3 lbs
Dimensions 17.3 × 8.5 × 1.7 in
Brand

Lysora
Model

LCS-24GS-P
Product Type

Smart PoE Switch
Port Configuration

24 × Gigabit PoE+; 2 × Gigabit RJ45 Uplinks; 2 × 1G SFP
PoE Power Budget

370 W shared
PoE Standard

IEEE 802.3af/at
Mounting

Rack or desk (datasheet)

PLAN YOUR INSTALLATION

Accessories

Help me choose

Need help choosing an accessory for this product? Ask us to confirm compatibility before ordering.

Ask about compatible accessories

Downloads & Support

LCS-24GS-P

Use the exact model, hardware revision and region when selecting firmware or documents. The official Download Center may require sign-in; no individual firmware file is supplied here.

Need Help With This Product?

Technical Specifications

BrandLysora
ModelLCS-24GS-P
Ethernet And Uplink Ports24 x 10/100/1000BASE-T PoE/PoE+ ports; 2 x Gigabit RJ45 uplinks; 2 x 1G SFP uplinks
PoE Budget370 W shared
PoE Power Pins1–2 (+), 3–6 (-)
Switching Capacity56 Gbps(bit/s)
Forwarding Rate41.6 Mpps
Buffer Size4.1 Mbit
CPUMAC chip, single-core processor, 500 MHz clock frequency
Flash Memory8 MB
Maximum Number Of VLANs16
Maximum Number Of MAC Address Entries8000
Jumbo Frame Length (MTU)10000 bytes
ManagementWeb, cloud and app management
Network ControlIEEE 802.1Q VLAN, port isolation, DHCP snooping, storm control, rate limiting and static MAC addresses
Monitoring And MaintenanceMirroring, cable test, camera detection, PoE watchdog and online upgrade
Power InputAC power supply: ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Rated input current: 6 A
Maximum Power Consumption25 W (with no PoE load) 400 W (with PoE full load)
Operating Temperature0°C to 40°C (32°F to 104°F)
Storage Temperature–40°C to +70°C (–40°F to +158°F)
Operating Humidity10% RH to 90% RH (non-condensing)
Surge ProtectionService port: ±4 kV for common mode Power connector: ±6 kV for common mode and ±6 kV for differential mode
ESD ProtectionAir discharge: 8 kV Contact discharge: 6 kV
Cooling1 x fixed fan; Air cooling, front-to-rear airflow
Dimensions440 mm x 214.9 mm x 44 mm (17.32 in. x 8.46 in. x 1.73 in.)
Net Weight2.84 kg (6.26 lb)
MountingRack or desk (datasheet)
EnclosureMetal
Warranty3 years
Pack Quantity1 switch
