Lysora 8-Port Gigabit Smart PoE+ Switch

Description

Lysora LCS-8GS-P 8-Port Gigabit Smart PoE+ Switch

The Lysora LCS-8GS-P is a compact cloud managed switch for networks that need eight Gigabit PoE/PoE+ connections. A 120 W shared PoE budget supports compatible powered devices, while dedicated RJ45 and combo RJ45/SFP uplink connections offer copper or fiber integration. The metal enclosure uses fanless natural cooling and supports wall or desk placement.

Key Features

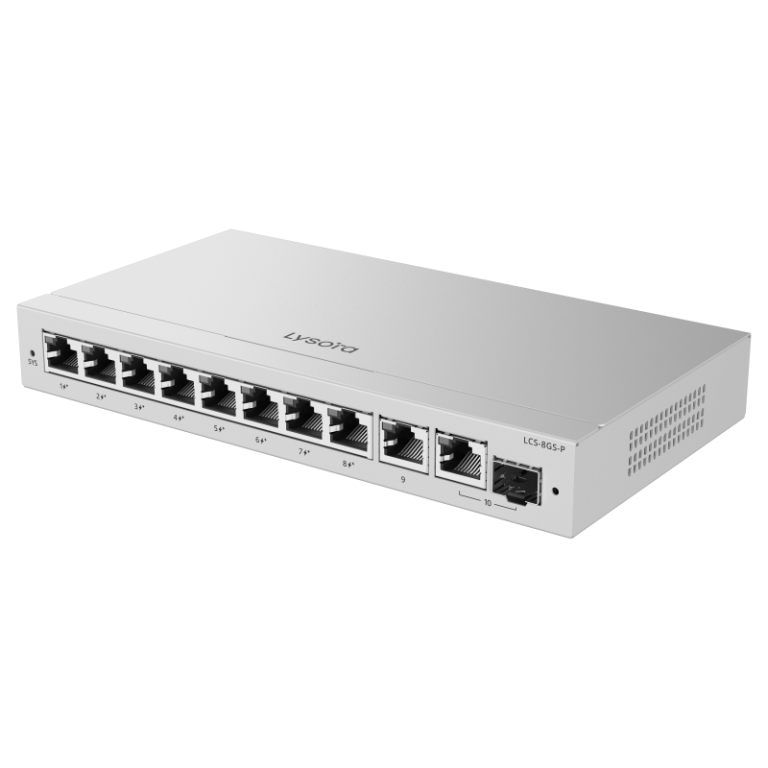

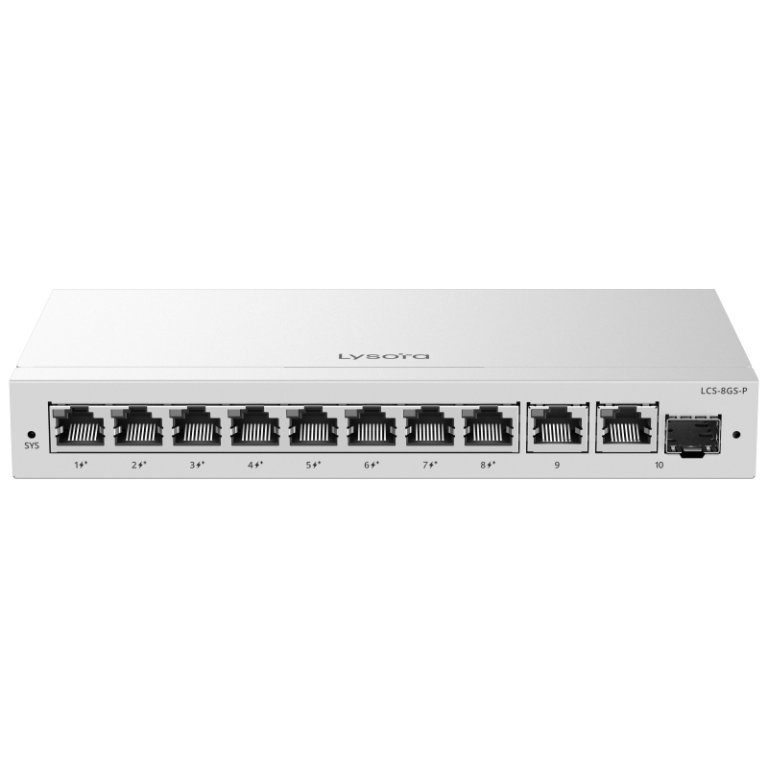

• 8 x 10/100/1000BASE-T PoE/PoE+ ports; 1 x Gigabit RJ45 uplink; 1 x Gigabit RJ45/SFP combo uplink
• 120 W shared PoE budget
• Web, cloud and app management
• PoE watchdog and camera detection
• Fanless design
• IEEE 802.1Q VLAN support

Designed For Your Network

For shops and small offices, eight powered access ports provide a central connection point for wireless access points, IP phones and cameras. PoE helps reduce separate power cabling at the device location, subject to each endpoint’s power requirement.

For surveillance installations, camera detection and the PoE watchdog support everyday device management. The 20 Gbps switching capacity and 14.8 Mpps forwarding rate give installers clear specifications for planning traffic through the switch.

Manage the switch through its web interface, cloud platform or app. Support for 16 VLANs, DHCP snooping, port isolation and traffic rate limiting provides practical control over a compact business network.

Installation And Power

• Installation: wall or desk; operate within 0°C to 40°C (32°F to 104°F).
• Plan connected PoE devices within the shared 120 W budget.
• The RJ45 and SFP sides of the combo uplink are alternatives for one uplink connection.

Management And Resources

Access supported devices through Lysora Cloud or the Lysora Cloud mobile app. Available functions depend on the model and firmware. Use the Downloads tab for verified app and document links.

View Official LCS-8GS-P Product Information
