Lysora 16-Port 2.5G Managed PoE++ Switch

Description

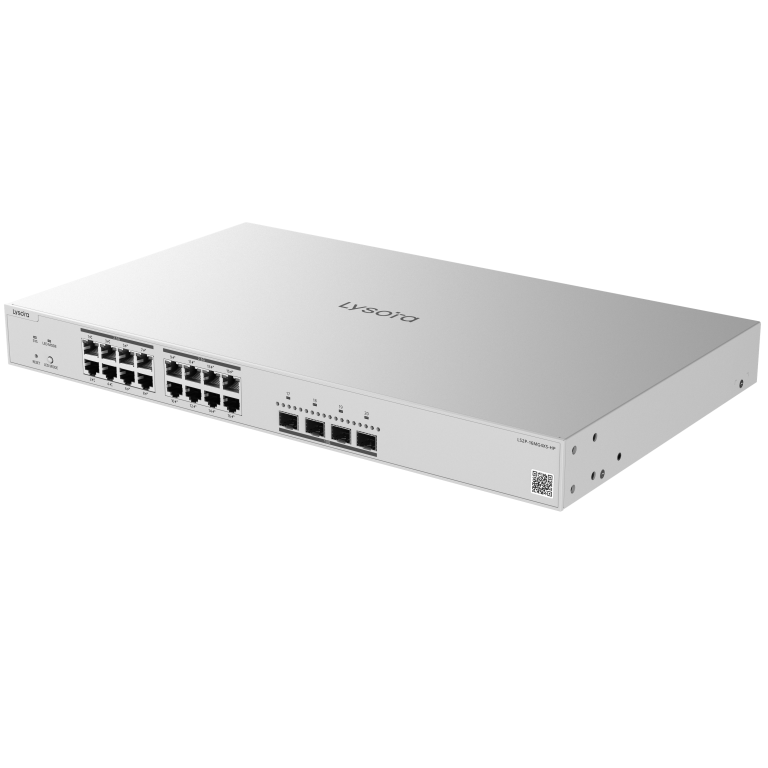

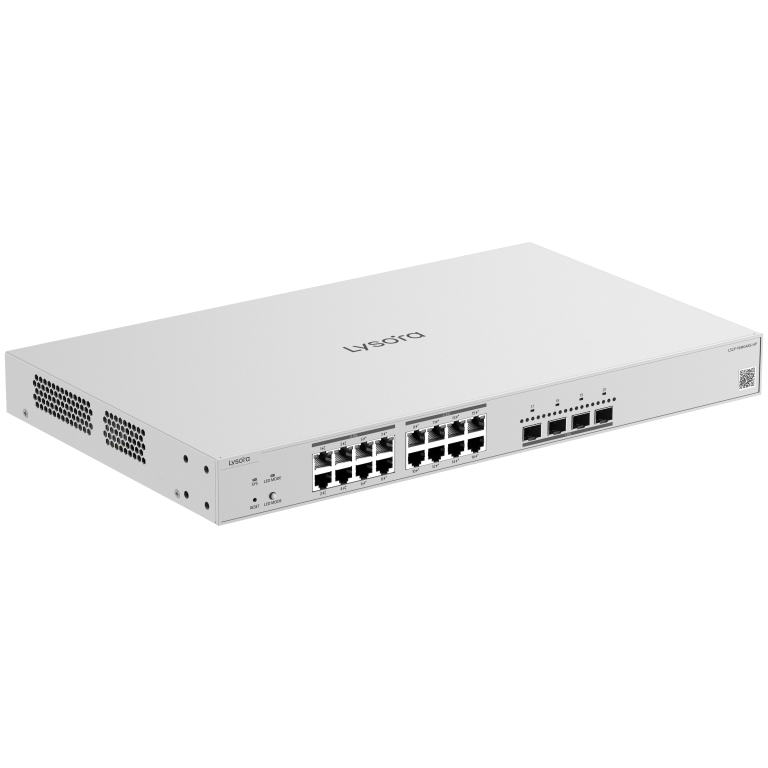

Lysora LS2P-16MG4XS-HP 16-Port 2.5G Managed PoE++ Switch

The Lysora LS2P-16MG4XS-HP provides sixteen 2.5 Gigabit copper ports and four 10 Gigabit SFP+ uplinks for a multi-gigabit access network. Its 370 W PoE budget includes four PoE++ capable ports, with Layer 2+ controls and centralized cloud management for business deployments.

Key Features

• 16 x 10/100/1000/2500BASE-T ports
• 4 x 10G SFP+ uplinks
• 12 PoE/PoE+ output ports and 4 PoE/PoE+/PoE++ output ports
• 370 W total PoE budget
• 160 Gbps switching capacity and 119.04 Mpps forwarding rate
• IPv4 and IPv6 static routes; VLANs and LACP

Designed For Your Network

Build an access layer for multi-gigabit wireless and wired devices with sixteen 10/100/1000/2500BASE-T ports. Four SFP+ uplinks give the switch several high-speed connections to aggregation equipment.

Power supported Ethernet devices directly from the switch. Twelve PoE/PoE+ ports and four PoE/PoE+/PoE++ ports share the stated 370 W total budget, helping consolidate data and power connections.

Use VLANs and IPv4 or IPv6 static routes to organize business traffic. Web, cloud and app management, SNMP monitoring and PoE watchdog provide practical administration tools for installations with many powered endpoints.

Installation And Power

• Rack or desktop installation in a metal enclosure.
• Rated AC input: 100–240 V AC, 50/60 Hz.
• Two fixed fans use left-to-rear airflow. Operating temperature: 0–50°C.

Management And Resources

Access supported devices through Lysora Cloud or the Lysora Cloud mobile app. Available functions depend on the model and firmware. Use the Downloads tab for verified app and document links.

View Official LS2P-16MG4XS-HP Product Information
