Lysora Layer 3 Managed Fiber Switch

Description

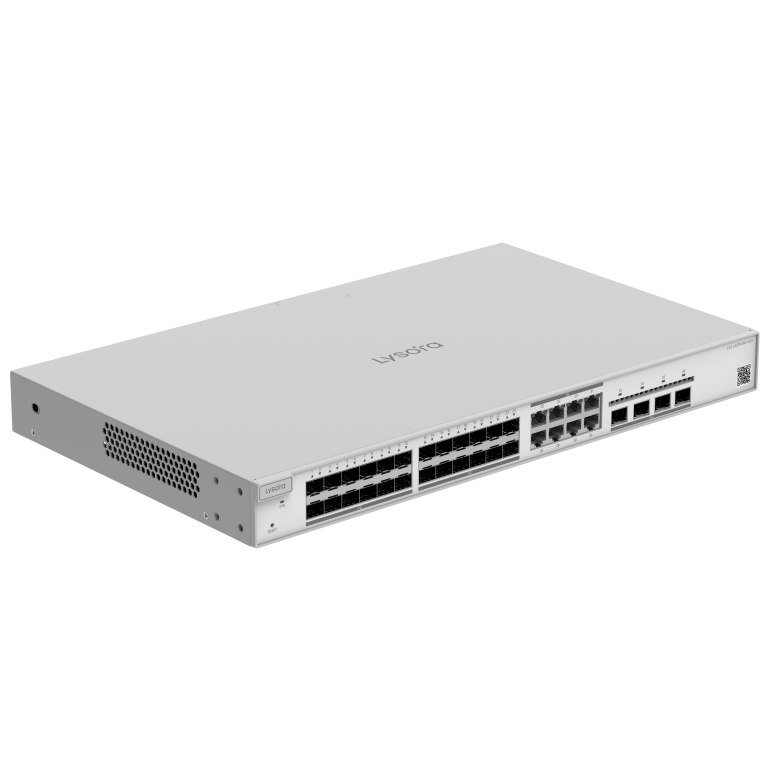

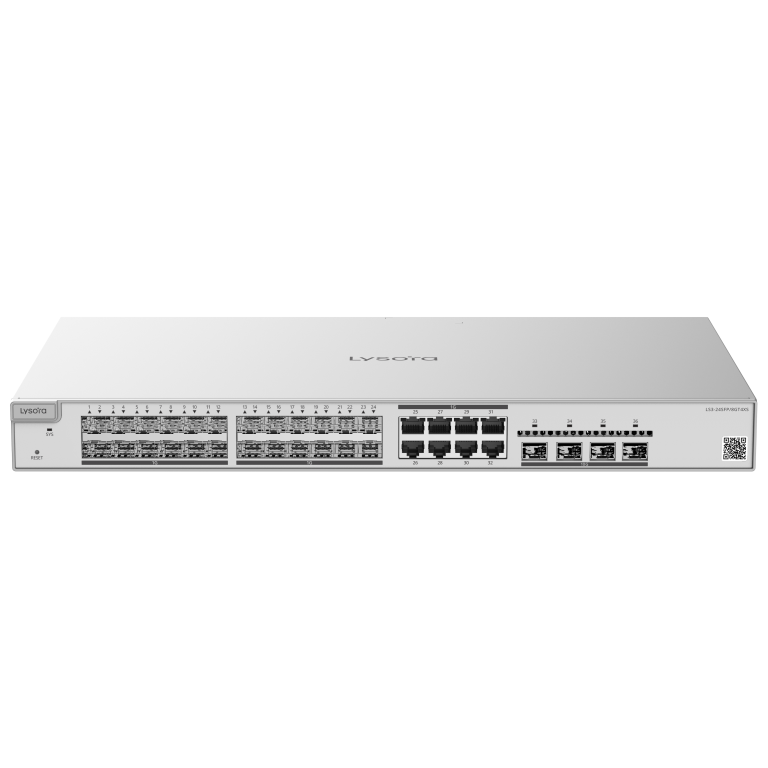

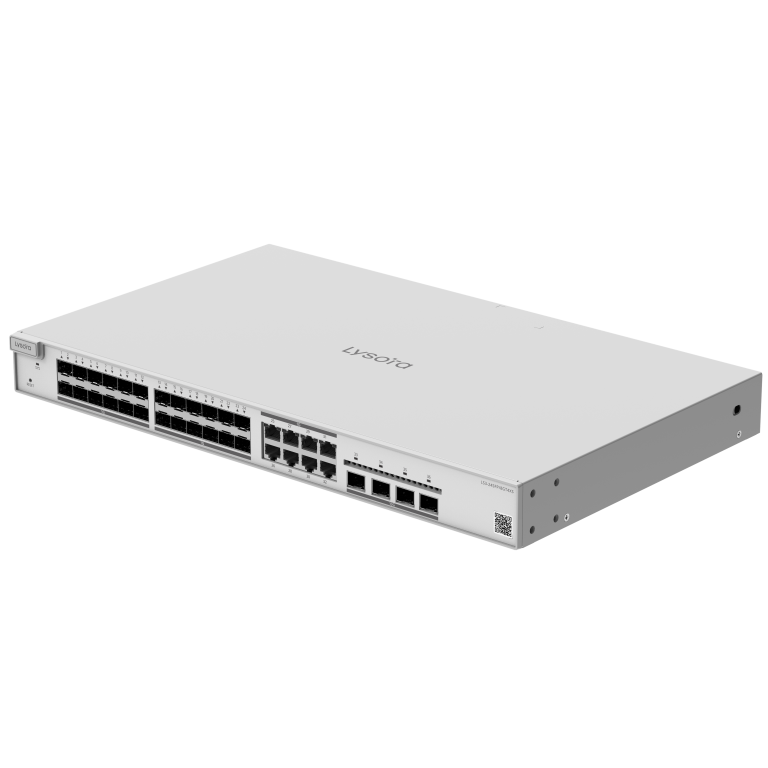

Lysora LS3-24SFP/8GT4XS Layer 3 Managed Fiber Switch

The Lysora LS3-24SFP/8GT4XS is a Layer 3 aggregation switch with 24 Gigabit SFP slots, eight associated Gigabit RJ45 combo connections and four 10 Gigabit SFP+ uplinks. Static routing, OSPF support and cloud management provide tools for building and administering a routed fiber network.

Key Features

• 24 x Gigabit SFP slots, including 8 combo interfaces
• 8 x Gigabit RJ45 combo connections
• 4 x 10G SFP+ uplinks
• 128 Gbps switching capacity and 95.23 Mpps forwarding rate
• IPv4/IPv6 static routing and OSPFv2/v3
• 4094 VLANs; LACP and STP/RSTP/MSTP

Designed For Your Network

Aggregate fiber connections from access switches using 24 Gigabit SFP slots. Eight combo interfaces also offer a copper connection option; those RJ45 connections share the associated SFP interfaces and are not eight extra independent ports.

Connect the aggregation layer to higher-speed network equipment through four 10G SFP+ uplinks. A stated 128 Gbps switching capacity and 95.23 Mpps forwarding rate support the switch’s port configuration.

Organize traffic using VLANs and Layer 3 routing. IPv4 and IPv6 static routes, OSPFv2/v3, LACP and web, cloud or app administration suit installations that need routing and remote management in one rack-mounted device.

Installation And Power

• 19-inch rack or desktop mounting; metal enclosure.
• Combo RJ45 and associated SFP connections are shared interfaces.
• Rated AC input: 100–240 V AC, 50/60 Hz.

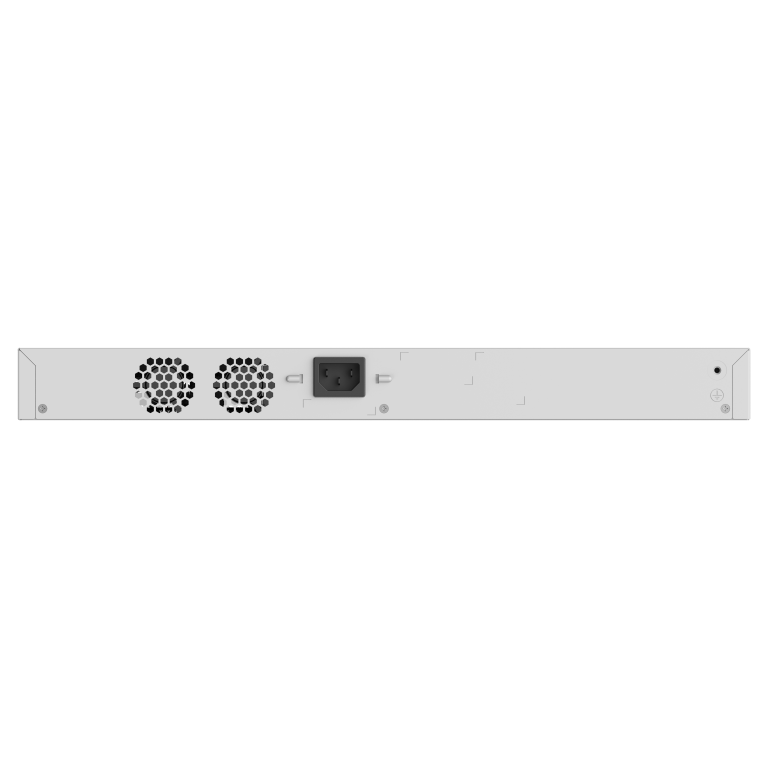

• Two fixed fans require clear left-to-right airflow; operating temperature: 0–50°C.

Management And Resources

Access supported devices through Lysora Cloud or the Lysora Cloud mobile app. Available functions depend on the model and firmware. Use the Downloads tab for verified app and document links.

View Official LS3-24SFP/8GT4XS Product Information
