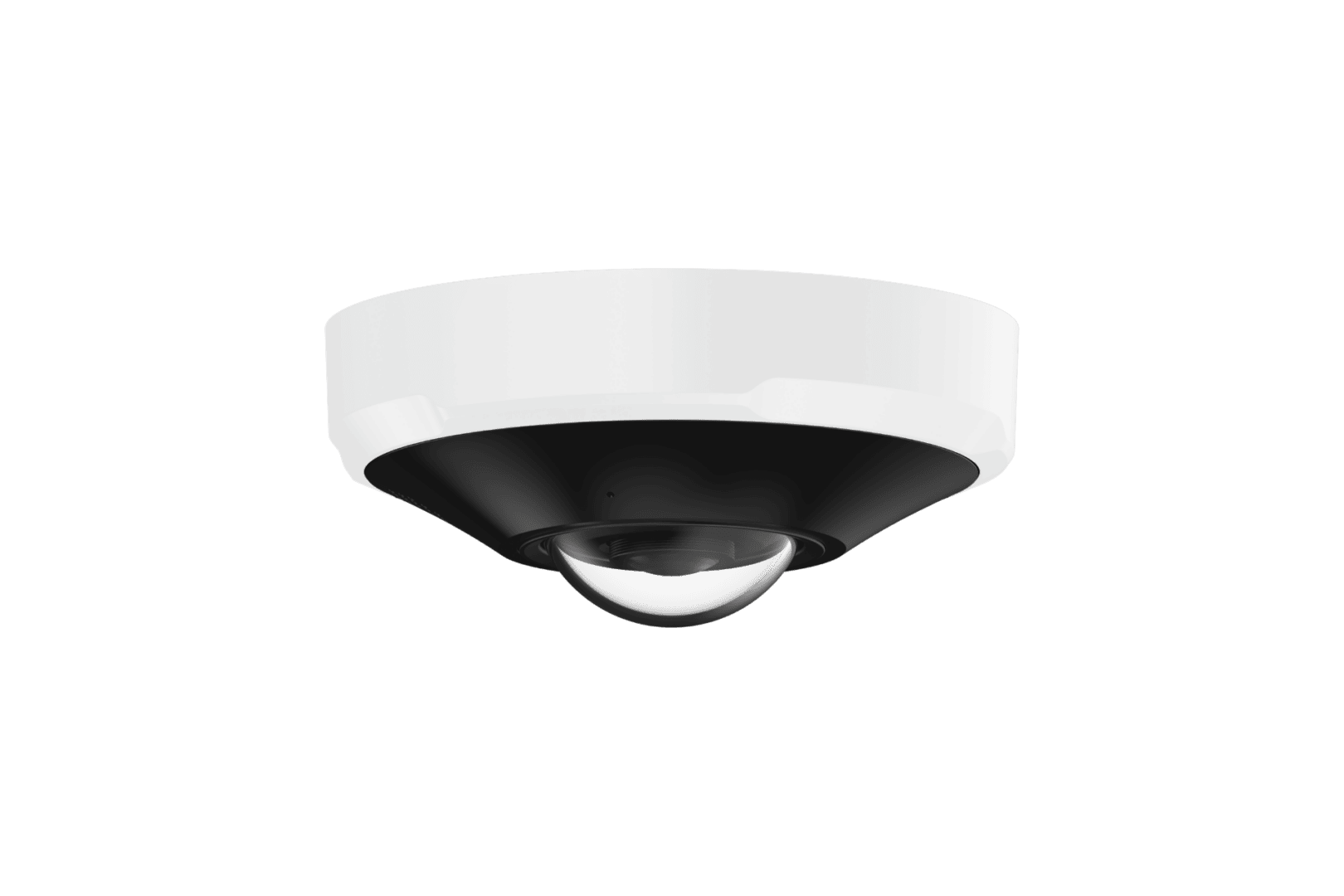

Premium-NDAA HNCA06N-FEU 6MP Fisheye Camera — 1.68mm

HNCA06N-FEU

Premium-NDAA 6MP Fisheye Camera — 1.68mm

Resolution
6MP
Lens
1.68mm
Illumination Range
Horizontal: 185° Vertical: 180°

$453.85

6MP Fisheye Camera — 1.68mm.

  • Up to 30 fps @ 6MP (2560 × 2560)
  • 1/2.5″ CMOS image sensor
  • Illumination 0.006 Lux @ F2.0 (Color), 0.0006 Lux @ F2.0 (B/W)
Check CompatibilitySend your equipment model and setup details, and we’ll help check compatibility.

Accessories & compatibility

Product Information
SKU: HNCA06N-FEU Category: Tags: , , , Brand:

Description

6MP Fisheye Camera — 1.68mm

The Premium-NDAA HNCA06N-FEU is a 6mp fisheye camera for IP video surveillance. Review the lens, illumination and installation specifications to match it to your site.

Key Features

  • Up to 30 fps @ 6MP (2560 × 2560)
  • 1/2.5″ CMOS image sensor
  • Illumination 0.006 Lux @ F2.0 (Color), 0.0006 Lux @ F2.0 (B/W)
  • Built-in IR lights, illumination distance up to 50 ft
  • Video Content Analytics with AI-based Line Crossing and Intrusion
  • Built-in Dual Microphone & Speaker for Two-way Talk

Mounting Options

Suggested mounts: HTH-280NJ-J02, HTH-262NJ-W01, HTH-272NJ-120B, HTH-271NJ-120, HTH-275ZJ, HTH-276ZJ. Mounts are sold separately unless the package explicitly lists them as included. Pole and corner installations may require an additional wall bracket.

NeoViewer Mobile App

Connect your compatible Premium-NDAA camera or recorder with NeoViewer for mobile viewing and device management. Available functions depend on your model, firmware and system setup.

Additional information

Brand

Premium-NDAA
Model

HNCA06N-FEU
Product Type

Fisheye Camera
Resolution

6MP
Lens

1.68mm

PLAN YOUR INSTALLATION

Accessories

Help me choose

Need help choosing an accessory for this product? Ask us to confirm compatibility before ordering.

Ask about compatible accessories

Downloads & Support

HNCA06N-FEU

NeoViewer mobile viewing and device management. Available functions depend on the model, firmware and system setup. Contact EZDIYWORLD for help with setup, desktop software or product documents.

Need Help With This Product?

Technical Specifications

BrandPremium-NDAA
ModelHNCA06N-FEU
Image Sensor1/2.5″ CMOS
Min. Illumination0.006 Lux @ F2.0 (Color), 0.0006 Lux @ F2.0(B/W)
E-shutter SpeedAuto/Manual 1/3 s–1/100,000 s
S/N Ratio> 56 dB
Noise Reduction3D NR
Wide Dynamic Range120 dB
Day & NightAuto/Color/B/W
Lens TypeFixed-focal 1.68 mm @ F2.0
Iris TypeFixed
Field of ViewHorizontal: 185°, Vertical: 185°, Diagonal: 185°
Close Focus Range0.98 ft (0.3 m)
DORIDetect: 110 ft (33.5 m) Observe: 45 ft (13.7 m) Recognize: 22 ft (6.7 m) Identify: 11 ft (3.3 m
Illuminators3 x IR LEDs
Illumination RangeHorizontal: 185° Vertical: 180°
Illuminator ControlAuto, Manual, Off
Video CompressionH.265; H.264; MJPEG (Sub Stream Only)
Smart CodecSupported
Resolution6M (2560*2560), 4M (2048*2048), 1.6M (1280*1280), 2M (1440*1440), 1M (1024*1024), (720*720), SVCD (480*480), 2.5M (2560*960), 1.5M (2048*768), 1.3M (1920*720), (1280*480), (640*240), (1280*480), (640*240), VGA (640*480), QVGA (320*240), 3M (2048*1536), 2.7M (1920*1440), XVGA (1024*768), UVGA (1600*1200)
Maximum Frame RateMain stream: 6MP (2560*2560) at 30 fps Sub stream: 2MP (1440*1440) at 30 fps Sub stream: 2MP (1440*1440) at 30 fps
Video Stream3 streams
Bit Rate ControlCBR, VBR, ABR
Video Bit RateH.264: 3 kbps to 6144 kbps H.265: 3 kbps to 6144 kbps
ROISupported (4 areas)
Image Rotation0°, 180°
MirrorSupported
Light BalancingDWDR
Image Angle0°/90°/180°/270°
Mirror RotationSupported
Privacy MaskSupported (4 areas)
Built-in MICYes
Built-in SPKYes
Audio CompressionPCM, G.711a, G.711Mu
InstallationCeiling mount; Wall mount; Ground mount
Decoding ModeHard Decoding, Soft Decoding
Display ModeHard Decoding: 1O; 1P; 2P; 1R; 2R; 4R; 1O+ 3R 2P/2R: Supports split screen for 2 windows. 4R: Supports split screen for 4 windows. *O: Fisheye original image view; P: Panoramic image view; R: Region image view.
VCA (Video Content Analytics)Intrusion, Line Crossing
Heat MapSupported
People CountingSupported
Alarm EventLine Crossing, Intrusion, Motion Detection, Audio Detection, Video Tampering, Disk Full, Disk Error, Voltage Detection, Security Exception
ProtocolIPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, NFS
InteroperabilityONVIF (Profile S & Profile G & Profile T), CGI
StorageFTP, SFTP, NAS, Micro SD card (support max. 1 TB)
ClientPC client: NeoViewer Mobile APP: NeoViewer
Network portRJ-45 (10/100 Base-T)
Micro SD card SlotYes
RS-4851
Audio I/O1 x Input, 1 x Output
Alarm I/O1 x Input (Max. 5 VDC, 5 mA), 1 x Output (Max. 12 VDC, 300 mA)
Reset ButtonSupported
Power Supply12 VDC / PoE (802.3af)
Power Consumption12 VDC: Max 8.1 W, Typical 1.4 W / PoE: Max 10.1 W, Typical 2.6 W
HousingMetal
DimensionsΦ4.80″ x 2.10″ (Φ122.0 mm x 53.3 mm)
Dimensions With Box6.10”×6.10”×4.02” (155 mm×155 mm×102 mm) (L*W*H)
Operating Conditions-22°F to +140°F (-30°C to +60°C)/less than 95% RH
Storage Conditions-22°F to +140°F (-30°C to +60°C)
Protection GradeIP67, IK10
Net Weight1.01 lb (0.46 kg)
Gross Weight1.65 lb (0.75 kg)
CertificationFCC
Electrical BoxHTH-280NJ-J02
Wall MountHTH-272NJ-120B
Pole MountHTH-271NJ-120
Pole MountHTH-271NJ-120-24
Pole MountHTH-271NJ-120-36
