Description
UNIVIEW · IPC86CEB-AF18KC-I0

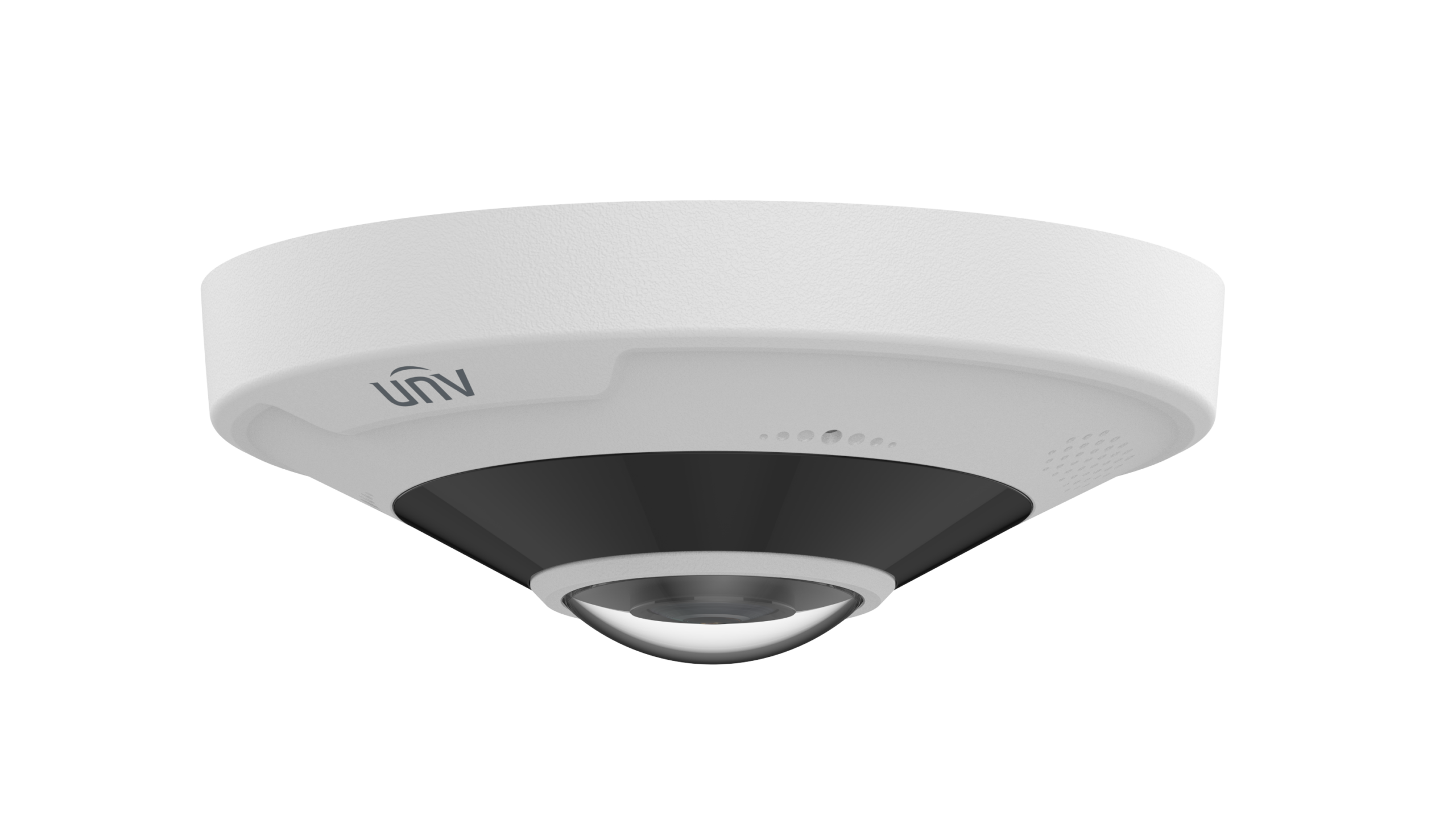

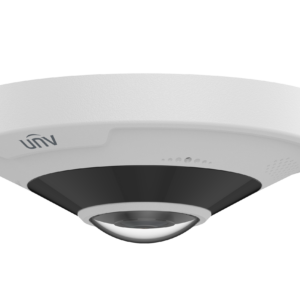

UNV IPC86CEB-AF18KC-I0 12MP Fisheye IP Camera
Monitor a broad area with a 12 MP fisheye camera offering fisheye, panorama and digital PTZ viewing modes. The IPC86CEB-AF18KC-I0 includes IR illumination, dual microphones and a speaker.
12 MP180° viewIP67Two-way audio
Product overview
A wide field of view is useful for monitoring activity across a larger area. Choose the mounting position around the scene and the amount of subject detail needed at each distance; a wider view spreads the available pixels across more of the area.
Wide scene coverage
12 MP imaging with a 1.8 mm lens and 180° horizontal field of view.
Low-light visibility
Infrared illumination reaches up to 15 m (49.3 ft).
Event detection
Cross-line and intrusion rules support event detection; configure the supported targets and zones for the site.
Audio and recording
A built-in microphone and speaker support listening and two-way communication. Local storage: MicroSD, up to 512 GB.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
IPC86CEB-AF18KC-I0 |
| Resolution |
12 MP |
| Image sensor |
1/1.7″ CMOS |
| Maximum-resolution video |
Fisheye view: 4000 × 3000 up to 20 fps |
| Lens |
1.8 mm |
| Aperture |
F2.0 |
| Horizontal field of view |
180° |
| Wide dynamic range |
DWDR |
| Minimum illumination |
Color: 0.03 Lux (F2.0, AGC ON), 0 Lux with IR |
| IR illumination range |
15 m (49.3 ft) |
| Video compression |
Ultra 265, H.265, H.264, MJPEG |
| Video streams |
Triple streams |
| Event functions |
Cross-line and intrusion rules support event detection; configure the supported targets and zones for the site. |
| Built-in microphone |
Built-in dual-mic |
| Built-in speaker |
Yes |
| Two-way audio |
Built-in microphone and speaker |
| Audio input / output |
1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm input / output |
2/1 |
| MicroSD storage |
MicroSD, up to 512 GB |
| Network storage |
ANR, NAS (NFS) |
| Ethernet |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| Power input |
DC 12 V±25%, PoE (IEEE 802.3af) |
| Maximum power consumption |
Max. 12.0 W |
| Protection |
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013); IK10 (IEC 62262:2002) |
| Operating environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Material |
Metal + Plastic |
| Dimensions |
Ø149 mm × 55 mm (Ø5.9″ × 2.2″) (Ø × H) |
| Weight |
0.524 kg (1.16 lb) |
| Viewing modes |
Fisheye, panorama and digital PTZ views |
Installation planning: match the viewing angle and illumination range to the required detail at the subject distance. Confirm recorder compatibility and the power budget before installation.
Optional accessories for this model. Choose only the parts your installation needs; each item is sold separately.
Pendant mount
TR-CM24-IN
For pendant installation. Check the required mounting base or junction box before ordering.
$30.00 Original price was: $30.00.$19.00Current price is: $19.00.
In Stock
Add To Cart

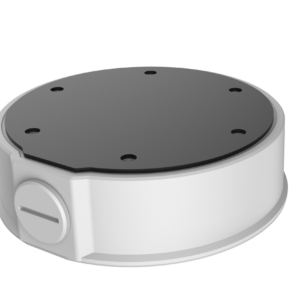

Junction box
TR-JB04-D-IN
Cable-management junction box matched to this camera.
$39.00 Original price was: $39.00.$29.00Current price is: $29.00.
In Stock
Add To Cart
Downloads & Support
IPC86CEB-AF18KC-I0
Mobile App
UniEase Mobile App
View live video, review available recordings and receive supported alerts. Formerly called UNV-Link.
Desktop / CMS
EZStation Desktop Software
Uniview video management software for supported cameras and recorders. Select Windows or macOS on the official download page.
Device Updates
Firmware
Open the manufacturer page, then choose Download → Firmware for your model.
Match the exact model, hardware revision and region before updating.
Documents
Product Documents
Manufacturer documents for this model.
