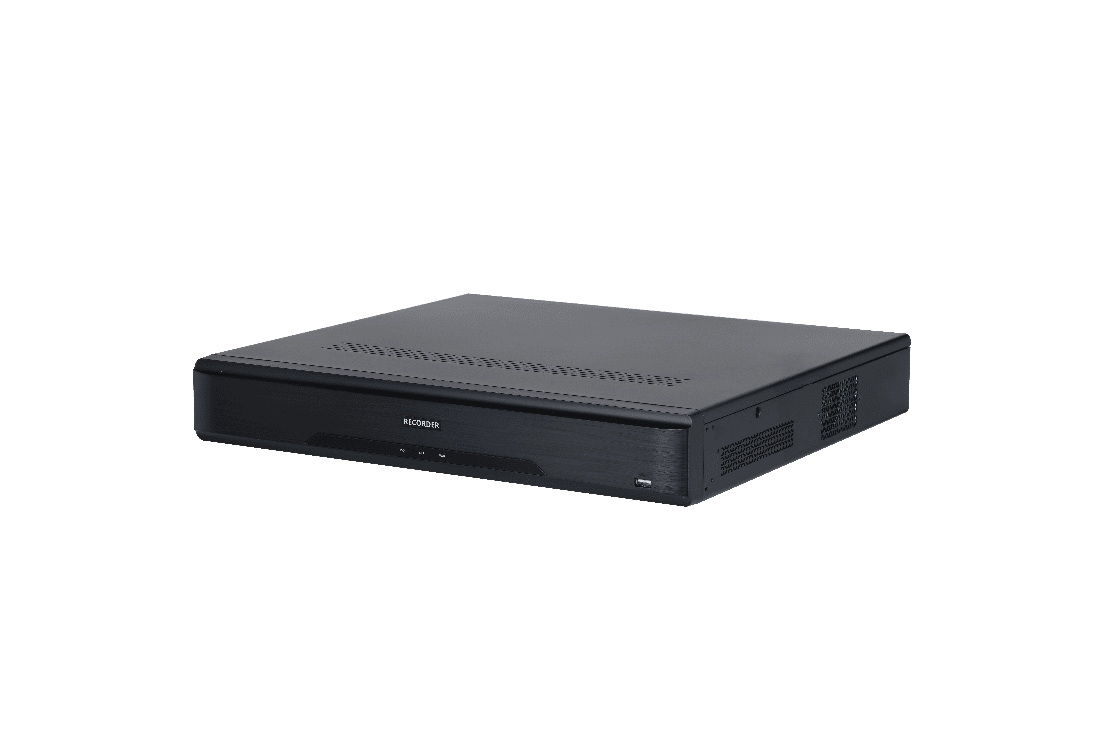

Premium-NDAA HNRA20N-64 64-Channel NVR

HNRA20N-64

Premium-NDAA 64-Channel NVR

Video Input
64 Channels
PoE Standard
IEEE 802.3 af/at
Sata
(8) Ports

$1,490.60

64-Channel NVR.

  • 8K 64-Channel NVR with
  • Up to 400 Mbps Recording Bandwidth (AI Off) / 220 Mbps (AI On)
  • Third-party network cameras supported
Check CompatibilitySend your equipment model and setup details, and we’ll help check compatibility.

Accessories & compatibility

Product Information
SKU: HNRA20N-64 Category: Tags: , , , Brand:

Description

64-Channel NVR

The Premium-NDAA HNRA20N-64 brings supported IP cameras into one recording system. Check recording capacity, storage requirements and camera compatibility in the specifications.

Key Features

  • 8K 64-Channel NVR with
  • Up to 400 Mbps Recording Bandwidth (AI Off) / 220 Mbps (AI On)
  • Third-party network cameras supported
  • Supports 2 Channels at 32MP or 16 Channels at 4MP Decoding
  • 1.5U Form Factor with 8 SATA, Audio, and Alarm Support

Plan Your Storage

Select compatible surveillance hard drives and confirm the supplied drive configuration before ordering. Storage capacity and recording duration depend on the selected drives and camera settings.

NeoViewer Mobile App

Connect your compatible Premium-NDAA camera or recorder with NeoViewer for mobile viewing and device management. Available functions depend on your model, firmware and system setup.

Additional information

Brand

Premium-NDAA
Model

HNRA20N-64
Product Type

Network Video Recorder

PLAN YOUR INSTALLATION

Accessories

Help me choose

Need help choosing an accessory for this product? Ask us to confirm compatibility before ordering.

Ask about compatible accessories

Downloads & Support

HNRA20N-64

NeoViewer mobile viewing and device management. Available functions depend on the model, firmware and system setup. Contact EZDIYWORLD for help with setup, desktop software or product documents.

Need Help With This Product?

Technical Specifications

BrandPremium-NDAA
ModelHNRA20N-64
Video Input64 Channels
Recording Resolutions32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
Output ResolutionsHDMI (2CH): 4K (3840 × 2160), 1920 × 1080, 1280 x 1024 VGA (2CH): 1920 × 1080, 1280 x 1024 HDMI1/HDMI2 Independent Output HDMI1/VGA1 Simultaneous Output HDMI2/VGA2 Simultaneous Output
Live View/Playback Resolutions32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
FormatSmart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG
CapabilityAI On • 1CH at 32MP (30 fps) • 2CH at 16MP (30 fps) • 4CH at 8MP (30 fps) • 12CH at 4MP (30 fps) • 24CH at 1080p (30 fps) AI Off • 2CH at 32MP (30 fps) • 4CH at 16MP (30 fps) • 8CH at 8MP (30 fps) • 16CH at 4MP (30 fps) • 64 CH at 1080p (30 fps)
Live View Window Division1, 4, 9, 16, 25, 36 Views
Auxiliary Port Window Division1, 4, 8, 9, 16 Views
Synchronous Playback1, 4, 8, 9, 16 views
Intelligent Motion DetectionCamera: 16CH NVR: 8CH
Video Content Analytics (VCA)Camera: 16CH NVR: 4CH 10 Rules per Channel
Face RecognitionFace Capture and Recognition: 2CH Face Picture Comparison Alarm From Camera: 16CH Up to 20 Face Picture Libraries (Max. 20,000 Pictures Total)
License Plate Recognition8CH (LPR Camera Required) Two (2) Block List, Two (2) Allow List Up to 20,000 Plate Numbers
Smart Search16CH (Must be Supported by Camera)
SATA(8) Ports
HDDUp to 16TB per HDD
NetworkOne (1) Port (RJ-45 Self-Adaptive Ether – net (10/100/1000 Mbps))
POENone
USBFront Panel: 1 x USB 2.0 Rear Panel: 2 x USB 3.0
AlarmInput: 16 Channels Output: 6 Channels
AudioInput: 1-Channel RCA Input Output: 2-Channel RCA Output
BandwidthAI On • Incoming: 220 Mbps • Outgoing: 220 Mbps AI Off • Incoming: 400 Mbps • Outgoing: 400 Mbps
ProtocolHTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS
InteroperabilityONVIF, RTSP
PoE StandardIEEE 802.3 af/at
Power Supply100-240 V, 47-63 Hz. 3.5 A
Power Consumption< 13 W (HDD Not Included) PoE: 210 W (Max. Output for Single Port: 25.5 W)
Weight4.7 kg (10.4 lb) Without HDD
Operating Temperature-10 °C to 55 °C (10 °F to 131 °F) 10% to 93%
Dimensions (W x L x H)442.0 × 414.1 × 68.0 mm (17.4 × 16.3 × 2.7 in.)
CertificationsFCC
ComplianceNDAA
