Description
UNIVIEW · IPC2K28SE-ADF40KMC-WL-I0

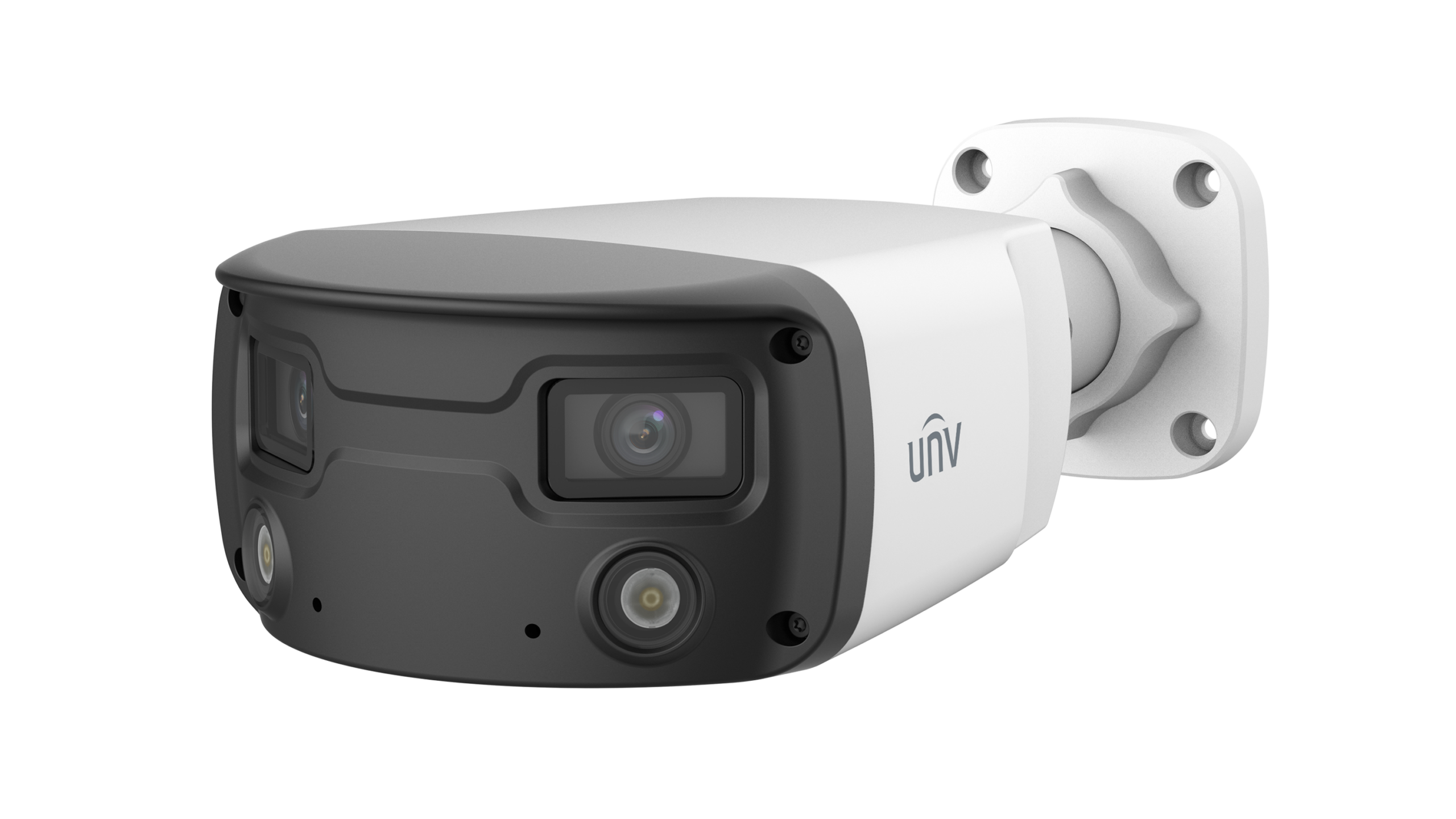

UNV IPC2K28SE-ADF40KMC-WL-I0 8MP ColorHunter Panoramic IP Bullet Camera
Capture a broad scene with 8 MP imaging and a 180°±10° horizontal view. The IPC2K28SE-ADF40KMC-WL-I0 combines a 2 × 4.0 mm lens arrangement with warm-light illumination.
8 MP180°±10° viewIP67Two-way audio
Product overview
A wide field of view is useful for monitoring activity across a larger area. Choose the mounting position around the scene and the amount of subject detail needed at each distance; a wider view spreads the available pixels across more of the area.
Wide scene coverage
8 MP imaging with a 2 × 4.0 mm lens and 180°±10° horizontal field of view.
Low-light visibility
Warm-light illumination reaches up to 30 m (98.4 ft), supporting color capture when additional light is needed.
Event detection
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification.
Audio and recording
A built-in microphone and speaker support listening and two-way communication. Local storage: MicroSD, up to 512 GB.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
IPC2K28SE-ADF40KMC-WL-I0 |
| Resolution |
8 MP |
| Image sensor |
1/2.7″ CMOS |
| Maximum-resolution video |
8 MP (5120 × 1440), max. 20 fps |
| Lens |
2 × 4.0 mm |
| Aperture |
F1.0 |
| Horizontal field of view |
180°±10° |
| Wide dynamic range |
130 dB |
| Minimum illumination |
Color: 0.0005 Lux (F1.0, AGC ON) |
| Warm-light range |
30 m (98.4 ft) |
| Video compression |
Ultra 265, H.265, H.264, MJPEG |
| Video streams |
Double streams |
| Event functions |
Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification. |
| Built-in microphone |
Built-in dual-mic |
| Built-in speaker |
Yes |
| Two-way audio |
Built-in microphone and speaker |
| Audio input / output |
1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm input / output |
1/1 |
| MicroSD storage |
MicroSD, up to 512 GB |
| Network storage |
ANR, NAS (NFS) |
| Ethernet |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Integration |
API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| Power input |
DC 12 V±25%, PoE (IEEE 802.3af) |
| Maximum power consumption |
Max. 13 W |
| Protection |
IP67 (IEC 60529: 1989+AMD1: 1999+AMD2: 2013) |
| Operating environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Material |
Metal |
| Dimensions |
273 mm × 130 mm × 76 mm (10.7″ × 5.1″ × 3.0″) (L × W × H) |
| Weight |
0.96 kg (2.12 lb) |
| Compatible accessory examples |
TR-JB07-D-IN-V2, TR-UP06-C-IN-V2 |
Installation planning: match the viewing angle and illumination range to the required detail at the subject distance. Confirm recorder compatibility and the power budget before installation.
Choose accessories for this model. Items are sold separately; add each item you need to your cart.
Junction box
TR-JB07-D-IN-V2
Cable-management junction box matched to this camera.
$63.00 Original price was: $63.00.$46.00Current price is: $46.00.
Add To Cart
Bullet-camera pole mount
TR-UP06-B-IN
For a pole diameter of 67–127 mm (2.6–5 in).
$33.00 Original price was: $33.00.$24.00Current price is: $24.00.
Add To Cart
Pole adapter for junction-box combinations
TR-UP06-C-IN-V2
A compatible junction box or wall-mount assembly is required; this adapter alone does not mount the camera.
$36.00 Original price was: $36.00.$25.00Current price is: $25.00.
Add To Cart
Downloads & Support
IPC2K28SE-ADF40KMC-WL-I0
Mobile App
UniEase Mobile App
View live video, review available recordings and receive supported alerts. Formerly called UNV-Link.
Desktop / CMS
EZStation Desktop Software
Uniview video management software for supported cameras and recorders. Select Windows or macOS on the official download page.
Device Updates
Firmware
Open the manufacturer page, then choose Download → Firmware for your model.
Match the exact model, hardware revision and region before updating.
Documents
Product Documents
Manufacturer documents for this model.
