UNV IPC94144SFW-X25-F40C Dual 4MP Overview and 25× PTZ Camera

IPC94144SFW-X25-F40C

UNV Dual 4MP Overview and 25× PTZ Camera

Resolution
4MP
Lens
Overview: 4.0 mm; PTZ: 4.8 to 120 mm
IR Illumination Range
PTZ: 100 m (328.1 ft.)

$1,599.00

UNV IPC94144SFW-X25-F40C Dual 4MP Overview and 25× PTZ Camera

  • 2 × 4 MP
  • PTZ channel: 25× optical zoom
  • IP66
Optional Accessories

Use Add To Cart to include selected accessories. Express payment buttons buy this product only. Accessory quantities follow this product.

TR-WE45-IN Original price was: $59.00.Current price is: $40.00. Standard wall-mount arm.
TR-WE45-A-IN Original price was: $73.00.Current price is: $59.00. Longer wall-mount arm for additional stand-off.
View 5 More Accessories
TR-CE45-IN Original price was: $57.00.Current price is: $42.00. Ceiling pendant option for this camera.
TR-WE45-B-IN Original price was: $190.00.Current price is: $163.00. Gooseneck mounting arm; check the mounting surface and camera clearance.
TR-JB12-IN Original price was: $230.00.Current price is: $168.00. Optional cable enclosure for use with a compatible wall arm; not a standalone camera mount.
TR-UP08-A-IN Original price was: $50.00.Current price is: $43.00. Use with TR-WE45-IN or TR-WE45-A-IN. TR-JB12-IN junction box is optional. Fits poles 67–127 mm (2.6–5 in) in diameter.
TR-UC08-A-IN Original price was: $43.00.Current price is: $28.00. Use with TR-WE45-IN or TR-WE45-A-IN. TR-JB12-IN junction box is optional.

Compatibility & Installation Notes

Check CompatibilitySend your equipment model and setup details, and we’ll help check compatibility.
Product Information
SKU: IPC94144SFW-X25-F40C Categories: , , Tags: , , , , , Brand:

Description

UNIVIEW · IPC94144SFW-X25-F40C

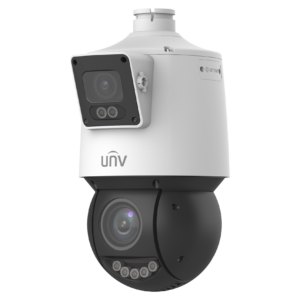

UNV IPC94144SFW-X25-F40C Dual 4MP Overview and 25× PTZ Camera

Keep an overview of the area while a separate 25× PTZ channel captures closer detail. The IPC94144SFW-X25-F40C combines two 4 MP views, warm light for the overview and IR for the PTZ channel.

2 × 4 MPPTZ channel: 25× optical zoomIP66

Product overview

Use wide views for orientation and optical zoom for closer inspection. Presets help return to important viewpoints, while the illumination, movement range and power requirements below support planning for the intended mounting position.

Optical detail control

PTZ channel: 25× optical zoom on the PTZ channel helps frame distant areas without moving the mounting point.

Low-light visibility

IR range: PTZ: 100 m (328.1 ft.). Warm-light range: Overview: 30 m (98.4 ft.).

Event detection

Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification.

Audio and recording

A built-in speaker provides audible output; connect a compatible external microphone for two-way audio. Local storage: MicroSD, up to 512 GB.

Technical specifications

Specification Details
Brand Uniview (UNV)
Model IPC94144SFW-X25-F40C
Resolution 2 × 4 MP
Image sensor Overview: 1/1.8″ CMOS; PTZ: 1/2.7″ CMOS
Maximum-resolution video Overview and PTZ channels: 2688 × 1520 up to 30 fps; overview default is 25 fps
Lens Overview: 4.0 mm; PTZ: 4.8 to 120 mm
Aperture Overview: F1.0; PTZ: F1.5 to F3.8
Horizontal field of view Overview: 94.9°; PTZ: 55.46° to 3.09°
Wide dynamic range 120 dB
Minimum illumination Overview: Color: 0.0005 Lux (F1.0, AGC ON), 0 lux with IR; PTZ: Color: 0.003 Lux (F1.5, AGC ON), 0 lux with IR
IR illumination range PTZ: 100 m (328.1 ft.)
Warm-light range Overview: 30 m (98.4 ft.)
Video compression Ultra 265, H.265, H.264, MJPEG
Video streams Triple streams
Event functions Cross-line and intrusion rules support human, vehicle and non-motor-vehicle classification.
Optical zoom PTZ channel: 25×
Pan range PTZ: 360°
Tilt range Overview: 18°±5°; PTZ: -15° to 90°
Presets PTZ: 1024
Built-in microphone No
Built-in speaker Yes
Two-way audio External microphone required; built-in speaker available
Audio input / output 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm input / output 2/1
MicroSD storage MicroSD, up to 512 GB
Network storage ANR
Ethernet 1 × RJ45 10 M/100 M Base-TX Ethernet
Integration ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
Power input DC 12 V (±25%), PoE+ (IEEE 802.3at)
Maximum power consumption Max. 24 W
Protection IP66 (IEC 60529 : 1989+AMD1: 1999+AMD2: 2013)
Operating environment -40 ℃ to 65 ℃ (-40 ℉ to 149 ℉), Humidity: ≤ 95% RH (non-condensing)
Dimensions 304 mm × 195 mm × 163 mm (12.0″ × 7.7″ × 6.4″ ) (L × W × H)
Weight 2.27 kg (5.00 lb.)
Compatible accessory examples TR-WE45-IN, TR-CE45-IN, TR-JB12-IN, TR-UP08-A-IN, TR-UC08-A-IN

Installation planning: allow clearance for the full pan/tilt movement, confirm the mounting hardware and size the power source for the camera’s maximum draw.

Additional information

Weight 7 lbs
Dimensions 13 × 10 × 8 in
Brand

UNV
Resolution

4MP
Camera type

PTZ
Lenses

Panorama: 4 mm / PTZ: 4.8-120 mm
IP rating

IP66

PLAN YOUR INSTALLATION

Accessories

Help me choose

Choose accessories for this model. Items are sold separately; add each item you need to your cart.

Which parts do I need for my mounting location?
  • Wall mount: standard arm: TR-WE45-IN — Optional TR-JB12-IN cable enclosure can be used with this wall arm.
  • Wall mount: long arm: TR-WE45-A-IN — Optional TR-JB12-IN cable enclosure can be used with this wall arm.
  • Swan-neck mount: TR-WE45-B-IN — Alternative mounting arrangement.
  • Ceiling pendant: TR-CE45-IN — Alternative mounting arrangement.
  • Pole mount with standard arm: TR-WE45-IN + TR-UP08-A-IN — Use both listed pieces, or reuse a matching arm you already own. Junction box optional.
  • Pole mount with long arm: TR-WE45-A-IN + TR-UP08-A-IN — Use both listed pieces, or reuse a matching arm you already own. Junction box optional.
  • Corner mount with standard arm: TR-WE45-IN + TR-UC08-A-IN — Use both listed pieces, or reuse a matching arm you already own. Junction box optional.
  • Corner mount with long arm: TR-WE45-A-IN + TR-UC08-A-IN — Use both listed pieces, or reuse a matching arm you already own. Junction box optional.

These are alternative mounting arrangements. Add each required part for your chosen arrangement; you do not need every accessory shown.

Check the mounting surface and any additional parts noted above. Camera, fasteners and installation are not included unless stated on the accessory product page. Compatibility reference (opens in a new tab)

Downloads & Support

IPC94144SFW-X25-F40C

Need Help With This Product?

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Flexible Setup

Two Ways To Use Your Camera

Standalone With UniEase

View a supported, cloud-connected camera from your phone using UniEase.

Add a compatible microSD card to record on this camera, with no NVR required.

Get UniEase (opens in a new tab)

Connect To A Compatible NVR

Add this camera to a compatible UNV recorder for central recording and playback across your camera system.

Expand an existing system or choose a recorder for a new installation.

Browse NVRs

Suitable camera power and a network connection are required. For app access, connect to the internet and add the supported device to your UniEase account.

Compatibility & Setup Details

UniEase features depend on the camera, firmware and cloud-device support. Recording controls vary by model. SD-card playback in UniEase requires compatible firmware and SDK3.0 device access.

For an NVR setup, check camera resolution, channel capacity and recording bandwidth. Use the power supply or PoE standard specified for this camera; higher-power PTZ models may require a different power source.
