UNIVIEW · IPC3614SR-ADF28KM-H

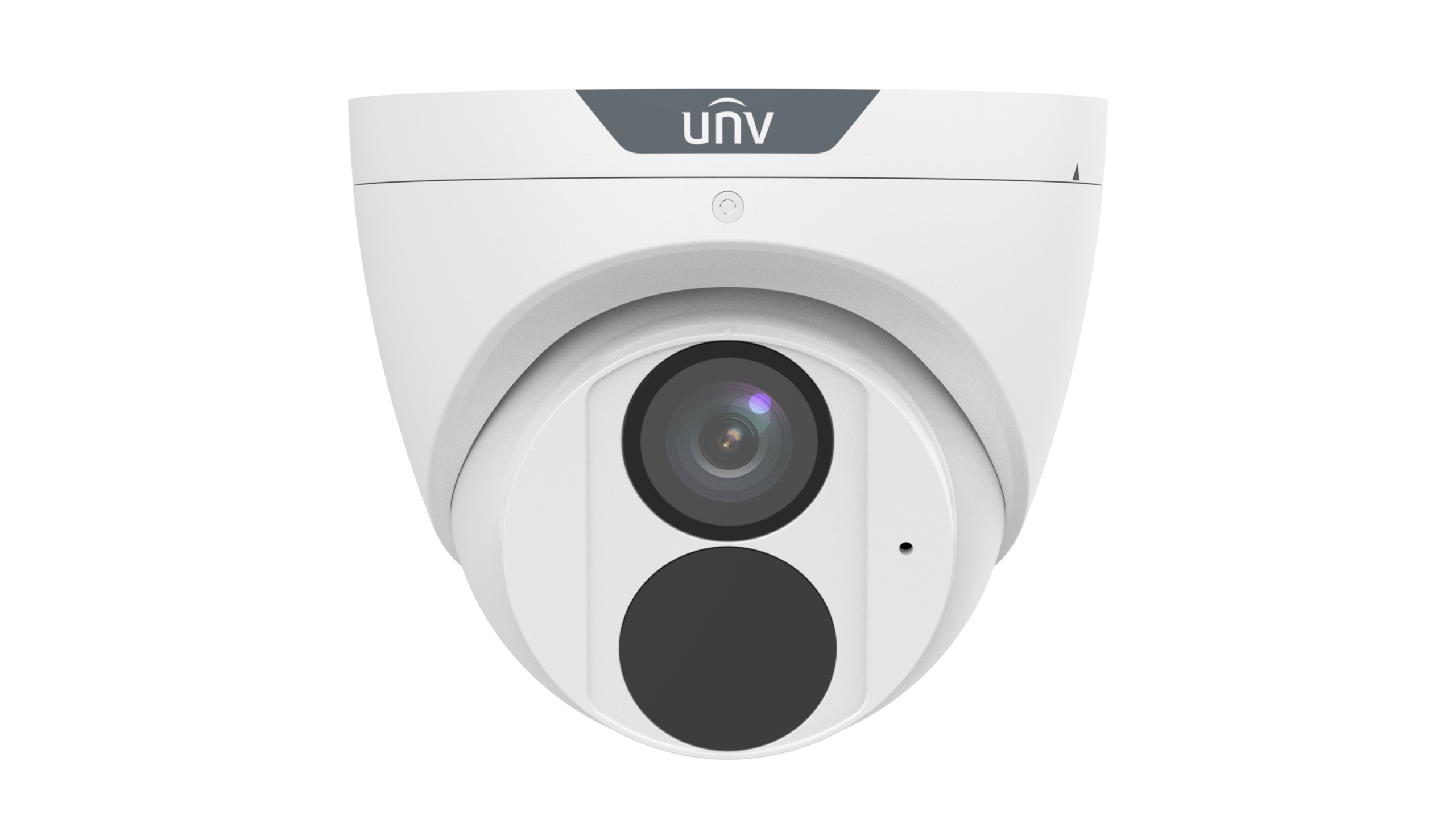

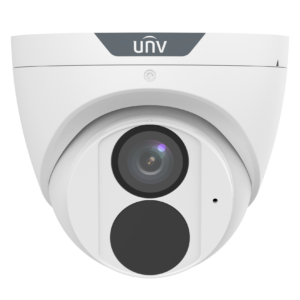

UNV IPC3614SR-ADF28KM-H 4MP IP Turret Camera
Monitor the scene with 4 MP video and a 2.8 mm fixed lens. The IPC3614SR-ADF28KM-H combines infrared night illumination, a built-in microphone and local microSD recording support.
4 MP2.8 mmIP67Built-in mic
Product overview
The fixed lens provides a consistent viewing angle for a planned camera position. Wide dynamic range helps balance bright and shaded areas, while the listed illumination and storage options support day-to-night monitoring.
Image and lens
4 MP imaging with a 2.8 mm lens and 97.0° horizontal field of view.
Low-light visibility
Infrared illumination reaches up to 30 m (98.4 ft).
Event detection
Human-based cross-line and intrusion detection helps focus events on people entering the monitored area.
Audio and recording
The built-in microphone adds sound to the recorded scene. Local storage: MicroSD, up to 512 GB.
Technical specifications
| Specification |
Details |
| Brand |
Uniview (UNV) |
| Model |
IPC3614SR-ADF28KM-H |
| Resolution |
4 MP |
| Image sensor |
1/3.0″ CMOS |
| Maximum-resolution video |
4 MP (2688 × 1520), max. 30 fps |
| Lens |
2.8 mm |
| Aperture |
F1.6 |
| Horizontal field of view |
97.0° |
| Wide dynamic range |
120 dB |
| Minimum illumination |
Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on |
| IR illumination range |
30 m (98.4 ft) |
| Video compression |
Ultra 265, H.265, H.264, MJPEG |
| Video streams |
Dual streams |
| Event functions |
Human-based cross-line and intrusion detection helps focus events on people entering the monitored area. |
| Built-in microphone |
Yes |
| Built-in speaker |
No |
| Audio input / output |
N/A |
| Alarm input / output |
N/A |
| MicroSD storage |
MicroSD, up to 512 GB |
| Network storage |
ANR, NAS (NFS) |
| Ethernet |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Power input |
DC 12 V±25%, PoE (IEEE 802.3af) |
| Maximum power consumption |
Max. 4.4 W |
| Protection |
IP67 (IEC 60529) |
| Operating environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Material |
Metal |
| Dimensions |
Ø111 mm × 95 mm (Ø4.4″ × 3.7″) (Ø × H) |
| Weight |
0.32 kg (0.71 lb) |
| Compatible accessory examples |
TR-JB03-G-IN, TR-WM03-D-IN-V2, TR-JB07/WM03-G-IN-V2 |
Installation planning: match the viewing angle and illumination range to the required detail at the subject distance. Confirm recorder compatibility and the power budget before installation.
Choose accessories for this model. Items are sold separately; add each item you need to your cart.
Wall mount with rear cable entry
TR-JB07/WM03-G-IN-V2
Wall-mount assembly with a rear cable outlet.
$90.00 Original price was: $90.00.$60.00Current price is: $60.00.
Add To Cart
Wall mount
TR-WM03-D-IN-V2
Wall-mount bracket for this camera.
$50.00 Original price was: $50.00.$36.00Current price is: $36.00.
Add To Cart
Pendant mount
TR-CM24-IN
For pendant installation. Check the required mounting base or junction box before ordering.
$30.00 Original price was: $30.00.$19.00Current price is: $19.00.
Add To Cart
Junction box
TR-JB03-G-IN
Cable-management junction box matched to this camera.
$30.00 Original price was: $30.00.$19.00Current price is: $19.00.
Add To Cart
Pole adapter for junction-box combinations
TR-UP06-C-IN-V2
A compatible junction box or wall-mount assembly is required; this adapter alone does not mount the camera.
$36.00 Original price was: $36.00.$25.00Current price is: $25.00.
Add To Cart
Downloads & Support
IPC3614SR-ADF28KM-H
Mobile App
UniEase Mobile App
View live video, review available recordings and receive supported alerts. Formerly called UNV-Link.
Desktop / CMS
EZStation Desktop Software
Uniview video management software for supported cameras and recorders. Select Windows or macOS on the official download page.
Device Updates
Firmware
Open the manufacturer page, then choose Download → Firmware for your model.
Match the exact model, hardware revision and region before updating.
Documents
Product Documents
Manufacturer documents for this model.
