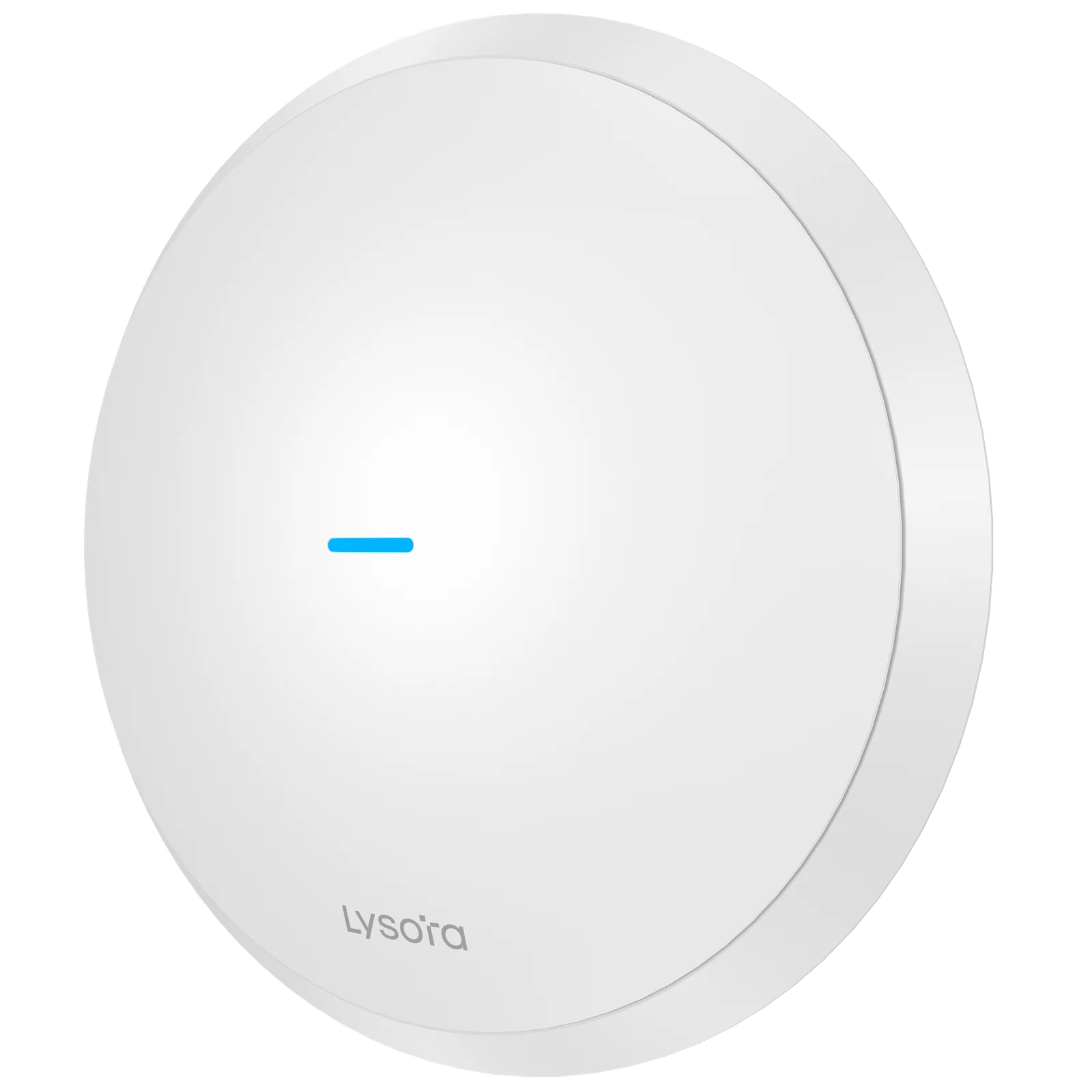

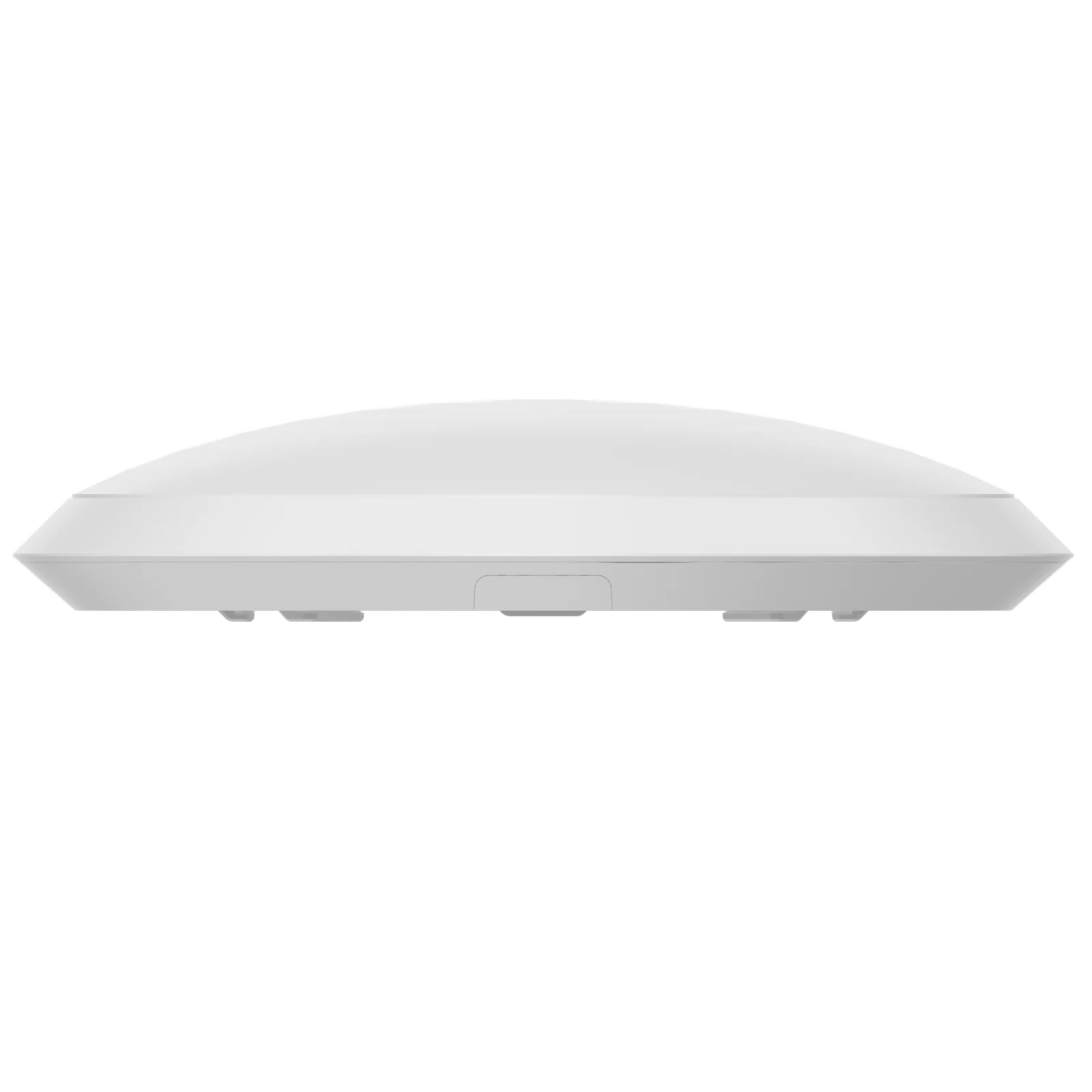

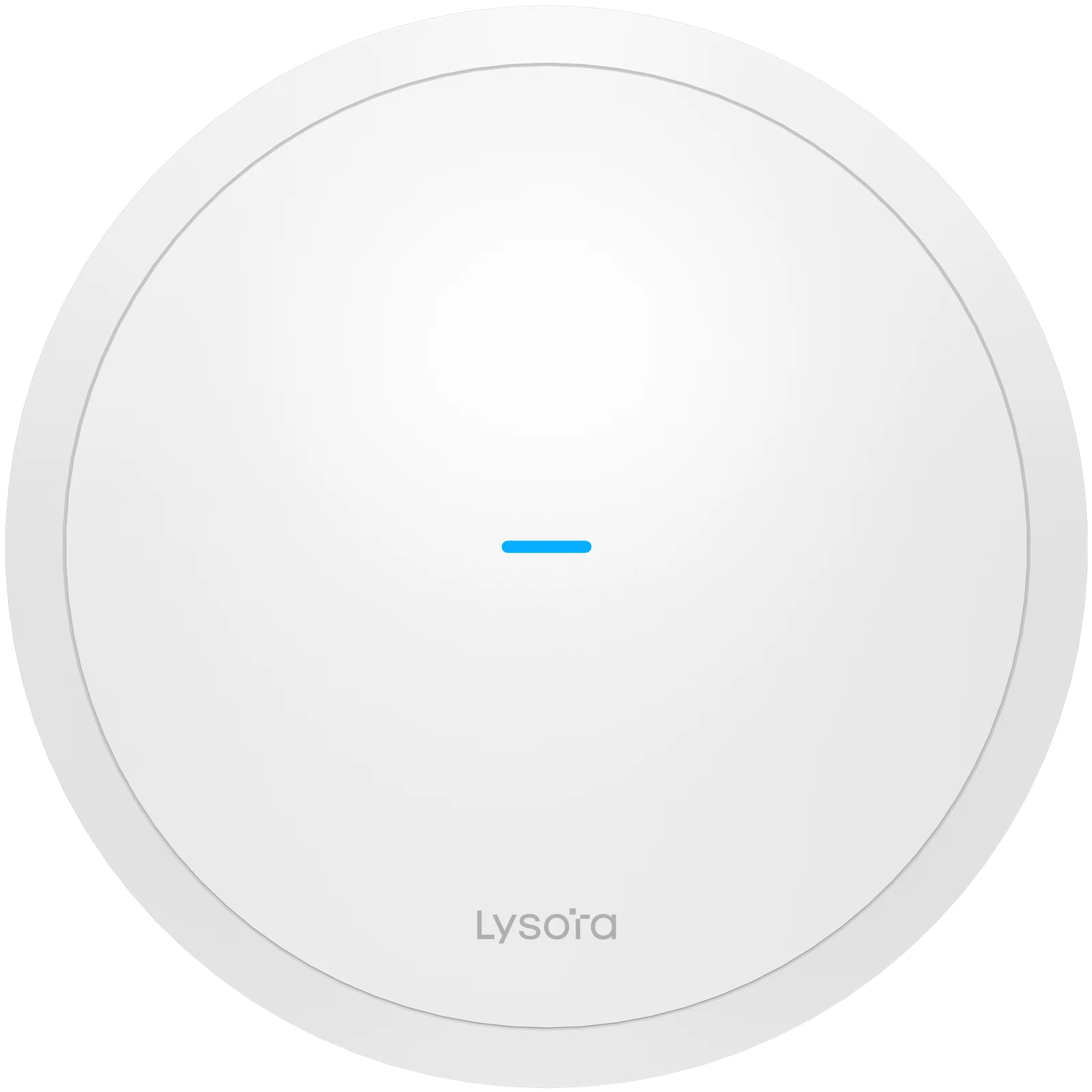

Lysora L7Lite BE3600 Wi-Fi 7 Indoor Access Point
The Lysora L7Lite combines dual-band Wi-Fi 7 with a 2.5 Gigabit Ethernet connection in a compact indoor access point. Four spatial streams, MLO and 4K-QAM support make it a practical option for networks adding compatible Wi-Fi 7 clients.
Key Features
- BE3600 dual-band Wi-Fi 7 on 2.4 GHz and 5 GHz
- 688 Mbps at 2.4 GHz and 2882 Mbps at 5 GHz
- One 2.5 Gigabit Ethernet port
- MLO and 4K-QAM support
- Four spatial streams with 2×2 MU-MIMO on each band
- Ceiling or wall mounting with mounts included
Designed For Your Network
For office upgrades, the 2.5GbE port supports a faster wired connection than a Gigabit-only access point when the switch and cabling support it. The 5 GHz radio supports channels up to 160 MHz.
For retail and hospitality interiors, ceiling or wall mounting keeps the equipment discreet. VLANs, client isolation and captive portal support give staff and visitor networks distinct access policies.
For growing installations, wireless meshing and centralized Lysora Cloud management simplify changes across access points. Local web access and app management give installers several ways to maintain the network.
Installation And Power
- Indoor IP41 enclosure; operating temperature 0°C to 40°C.
- Ceiling and wall mounting hardware is included.
- Supports 802.3at PoE+ or 12 V / 1.5 A DC input; DC adapter is excluded.
Management And Resources
Access supported devices through Lysora Cloud or the Lysora Cloud mobile app. Available functions depend on the model and firmware. Use the Downloads tab for verified app and document links.
View Official L7Lite Product Information
Downloads & Support
L7Lite
Mobile App
Lysora Cloud
Device Updates
Firmware
Match the exact model, hardware revision and region before updating.
Documents
Product Documents
The linked datasheet is in Japanese. Confirm the U.S. model and regional specifications before purchase. Use the exact model, hardware revision and region when selecting firmware or documents. The official Download Center may require sign-in; no individual firmware file is supplied here.
